Summary of Contents for Adaptivlite ADVL-AU3

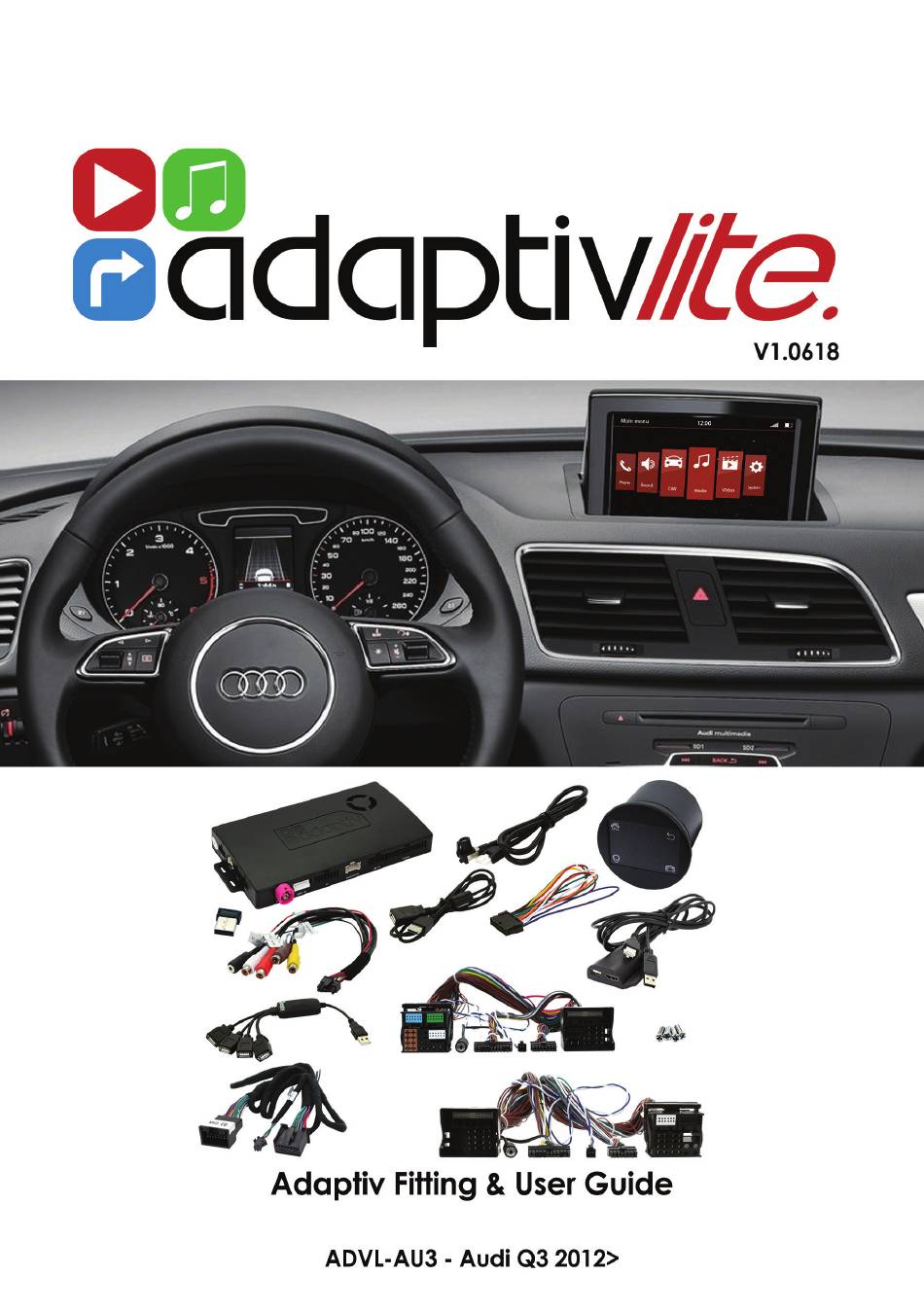

- Page 1 WWW.ADAPTIV-MULTIMEDIA.COM...
-
Page 2: Table Of Contents
CONTENTS Contents About Connection Diagram Quick Start Guide System Sound Settings 10-11 Video - HDMI Video - DVBT 13-14 Video - AV In Media - USB/SD 16-20 File Transfer 21-22 Info/Update Technical Specifications ADVL-AU3... -
Page 3: About

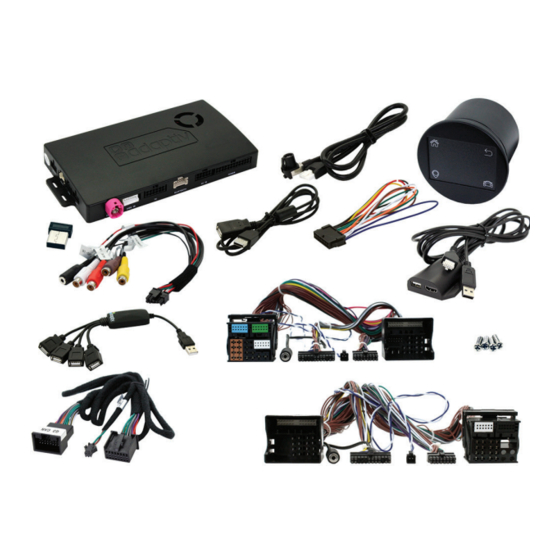

ABOUT Adaptiv Adaptivlite is a new brand from Connects2, which allows extensive multimedia upgrades to the OEM screen. The plug and play, all in one interface adds USB/SD, AV In and an input for an aftermarket reverse camera. Optional modules allow the ability to add DAB Digital Radio (ADV-DAB), DVBT TV (ADV-DVBT) and Bluetooth (ADV-BT). -
Page 4: Connection Diagram
CONNECTION DIAGRAM ADVL-AU3... - Page 5 1. Remove the OEM head unit and disconnect the main power Quadlock (A). 2. Disconnect the Pink LVDS connector (B) from the rear of the OEM head unit. 3. Connect this LVDS to the female LVDS OUT on the Adaptiv interface. 4.
-
Page 6: Quick Start Guide
Home - Back - Enter Adaptiv Returns to previous menu Exit Adaptiv Scroll - Use the centre of the touchpad to scroll up/down, left/right. Tap - Tap the centre of the touchpad to select. ADVL-AU3... - Page 7 QUICK START GUIDE 3. Main Menu - Use the touchpad controller to scroll left across to the System icon. Tap in the centre of the touchpad to select System. 4. Scroll down on the touchpad to Language and select the required language.
-
Page 8: System
Allows the user to change the colour scheme. The colour is set to red/white by default. Language Allows the user to change language of the Adaptiv interface. The interface is set by default to English. Video Input Change the Brightness/Contrast of the picture for AV In. ADVL-AU3... -
Page 9: Sound Settings
SOUND SETTINGS The sound settings menu allows the user to set the volume level of an audio source independantly. When switching the source, the volume level will be automatically adjusted to the user defined level. If the level slider controller is in the 0 position the volume that is set by the master volume control. -
Page 10: Dab
When DAB is first selected, you must scan in order to find available DAB stations. Select the Scan icon . After scanning, the first available station will be heard and will be shown on the display. Key to Icons Current station Info Scan Ensemble View Station List Alphabetical View ADVL-AU3... - Page 11 DAB DIGITAL RADIO Storing Presets To store a preset, select the desired radio station. Select the Preset icon from the right hand side of the display. Scroll to the required preset button (1-10) on the station presets display. Press and hold in the centre of the touchpad to save the preset.
-
Page 12: Video - Hdmi
Select the HDMI icon Playback The HDMI source allows high resolution multimedia playback from a variety of Apple/Android devices. The multimedia content must be controlled from the device itself. Exit HDMI Press the back button on the touchpad. ADVL-AU3... -
Page 13: Video - Dvbt
VIDEO - DVBT TV Before Use Please ensure the optional ADV-DVBT module is connected to the Adaptiv interface and the DVBT antennas are connected. Selecting TV Scroll to Video on the Adaptiv homescreen and select the TV icon with the touchpad. Scanning When TV is first selected, you must scan in order to find available TV stations. - Page 14 VIDEO - DVBT TV Exit TV Press the back arrow on the touchpad. ADVL-AU3...
-
Page 15: Video - Av In
VIDEO - AV IN The AV In feature allows audio/video input of any devices with a composite output (Aux L, Aux R and Video). Control is from the connected device. Selecting AV In Scroll to Video on the Adaptiv homescreen. Select the AV In icon on the Adaptiv homescreen. -
Page 16: Media - Usb/Sd
Ensure that a USB or SD card is inserted into the Adaptiv interface Multimedia socket or HDMI module. Scroll to Media on the Adaptiv ho- mescreen. Select the USB icon or the SD icon as required. USB/SD Playback USB/SD Playback display ADVL-AU3... - Page 17 MEDIA - USB/SD Key to Icons Previous track Next track Play / Pause Select once to repeat the song Repeat Select twice to repeat/loop. Shuffle Select this to shuffle and play tracks at random. Play list WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 18 Open movie files on USB/SD media Open image files on USB/SD media Open all files on the USB/SD media (Folder Structure) Movie playback Key to Icons - Movie playback Previous track Next track Play / Pause Stop Fast forward Back to previous menu ADVL-AU3...
- Page 19 MEDIA - USB & SD CARD OPERATION Images - Menu Images which are saved on the SD-Card or USB device can be displayed on the Adaptiv unit startup screen. Any supported image format can be used. To do this, select the icon in the bottom left corner, as shown in the picture above.
- Page 20 To delete the startup image, select the memory button as shown above. A red symbol appears to confirm the image was deleted as the start screen. Folder Structure Menu Select a folder. If the folder has a sub-folder this can also be selected from this page. ADVL-AU3...
-
Page 21: File Transfer
FILE TRANSFER This option allows the transfer of files between a USB memory stick and an SD Card. Selecting File Transfer Scroll to System on the Adaptiv homescreen. Select the File icon Files can be copied to/from an SD card which is inserted in the ‘Media SD’... - Page 22 FILE TRANSFER Key to Icons Copy File Paste File Choose all files Delete selected file Back to previous menu ADVL-AU3...
-
Page 23: Info/Update
INFO/UPDATE Update your unit Downloads The current software version can be accessed via this page. Please make a note of this should you need contact Connects2 for support. Should your unit require a software update, please ensure the USB key with the update file is inserted into the Adaptiv interface ‘Multimedia’... -
Page 24: Technical Specifications
-20c - +80c Resolution Output 400 x 240 / 800 x 480 Inputs Video Input 1 x RCA (AV) 1 x Rear Camera (V) 1 x HDMI 1 x DAB (ADV-DAB) 1 x TV (ADV-DVBT) 1 x Multimedia 1 x Multimedia ADVL-AU3...
