Venetian User Manual

VENETIAN RF REMOTE CONTROL
User's Manual
1.

Introduction :

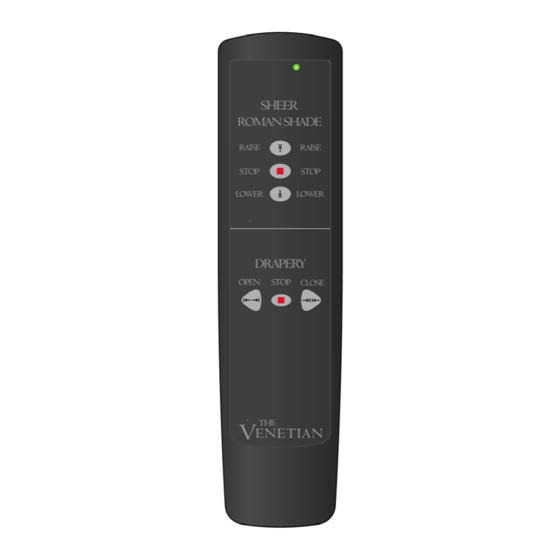

The RF remote control for curtain controller is consist of the
keypad like the picture and to use indication LED for operating.
2.

Transmitting Frequencies :

The RF remote control can transmit two frequencies( 433.92 MHz,
433.42MHz ).
The device will transmit a 433.42MHz carrier if press one key of
Raise, Stop, Lower, Reg keys and a 433.92MHz carrier if press
one key of Open, Stop, Close, Reg keys.
The device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference. And (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: The Manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the User's authority to
operate the equipment.
The transmitter will be turn off automatically after 10 seconds if a
keypad will be pressed continuously.
3.
Electrical Specifications (VENETIAN)
Items
Model Name
Frequency
Frequency drift
Transmitter Power
Antenna
Power Supply
Modulation method
Communication method
Stand by Current
Transmit Current
Operating Temperature
Specifications
VENETIAN
433.42MHz/433.92 MHz
±100KHz
Max. +0dBm
PCB Pattern Antenna
2x AAA Alkaline battery
ASK/OOK
Simplex
Below 1uA
Max. 10mA
0°C ~55°C
