Trisure and Mauser
adaptors for Plastic Drums
PLEASE SAVE THESE INSTRUCTIONS.
READ ALL PRECAUTIONS AND INSTRUCTIONS CAREFULLY.
SPECIFICATIONS
Item / Model
Manual Lever Pump / 40177
Delivery Volume About 500cc per Stroke
Diesel oil, Heating oil, Water,
Applicable
Mineral oil based solvents,
Liquids
Windshield Washer Fluid, Coolants,
Antifreeze, Agricultural chemicals etc.
Applicable range
About -5°C ~ +45°C
of Temperature
Main Materials
Polypropylene, Polyethylene, Nitril / NBR
OPERATING INSTRUCTIONS
How to assemble the Suction Pipes
1. Thread Suction Pipe B into
Suction Pipe A (Diagram 1- ).
2. Thread Suction Pipe A+B into
Suction Thread Hole
(Diagram 1- ).
3. Adjust the length of Suction
Pipe C to fit it with the height
of the Drum and fix pipes B+C
with Joint Nut (Diagram 1- ).
Length of Assembled Suction Pipes:
• Suction Pipes (A+B+C) 690–980mm.
• Suction Pipes (B+C) 350–640mm.
Note: The Suction Pipes fits a 200L
Drum as well as a 1000L IBC Tank.

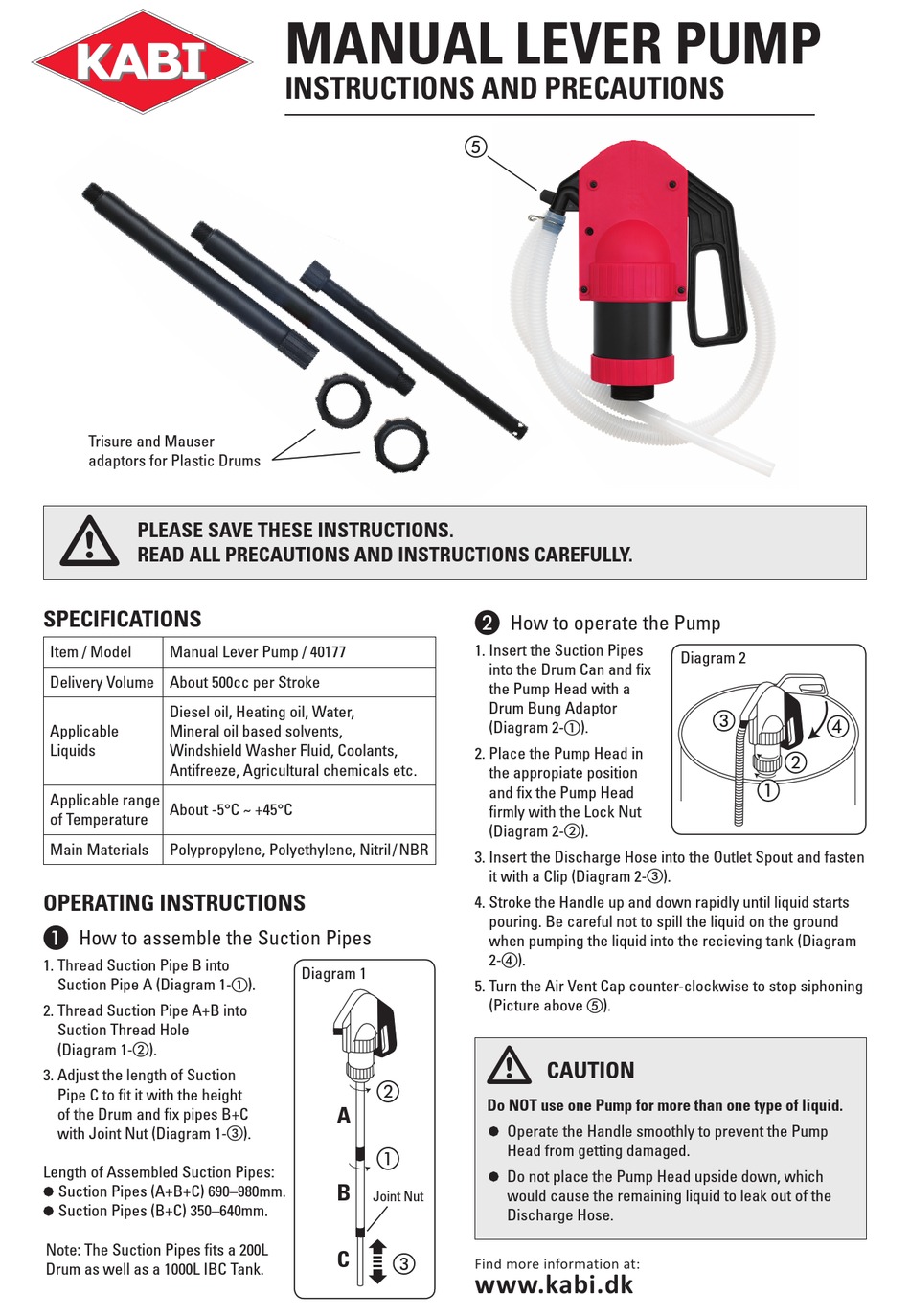

MANUAL LEVER PUMP
INSTRUCTIONS AND PRECAUTIONS
Diagram 1
A
B
Joint Nut
C
How to operate the Pump
1. Insert the Suction Pipes
into the Drum Can and fix
the Pump Head with a
Drum Bung Adaptor
(Diagram 2- ).
2. Place the Pump Head in
the appropiate position
and fix the Pump Head
firmly with the Lock Nut
(Diagram 2- ).
3. Insert the Discharge Hose into the Outlet Spout and fasten
it with a Clip (Diagram 2- ).
4. Stroke the Handle up and down rapidly until liquid starts
pouring. Be careful not to spill the liquid on the ground
when pumping the liquid into the recieving tank (Diagram
2- ).
5. Turn the Air Vent Cap counter-clockwise to stop siphoning
(Picture above ).
CAUTION
Do NOT use one Pump for more than one type of liquid.
• Operate the Handle smoothly to prevent the Pump
Head from getting damaged.
• Do not place the Pump Head upside down, which
would cause the remaining liquid to leak out of the
Discharge Hose.
Find more information at:
www.kabi.dk
Diagram 2
