120V-
277V
AC
DRY LOCATION
SAFETY & WARNINGS
1. Install in accordance with national and local electrical
code regulations.
2. This product is intended to be installed and serviced by a
qualified, licensed electrician.
3. Do not modify or disassemble this product beyond
instructions or the warranty will be void.
4. Do not submerge, or install within 5 feet of a swimming
pool.
5. Failure to follow safety warnings, and installation
instructions will void the warranty for this product.

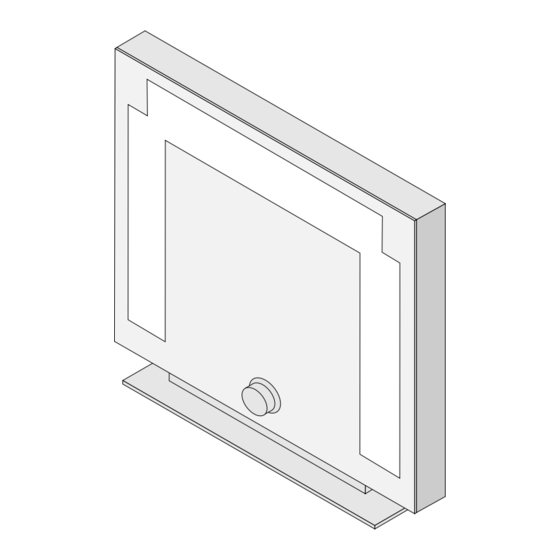

ENVI-LIGHT
Color Tunable Mirror INSTALLATION GUIDE
®
ENVI-LIGHT
®
®
Color Tunable Mirror
QUICK SPECS / MODELS
SKU
DI-120V-ENV-MIR
Input
120V-277VAC 60HZ
Wattage
70 Watts
Dimensions 32.25 in. x 31 in. x 8 in. (W x H x D)
1 OF 5
Installation GUIDE
IG110718-3.0
Advertisement
Table of Contents
Summary of Contents for DIODE LED ENVI-LIGHT Color Tunable Mirror
- Page 1 ® ENVI-LIGHT Color Tunable Mirror ® INSTALLATION GUIDE 120V- 277V DRY LOCATION QUICK SPECS / MODELS SAFETY & WARNINGS 1. Install in accordance with national and local electrical DI-120V-ENV-MIR code regulations. Input 120V-277VAC 60HZ 2. This product is intended to be installed and serviced by a Wattage 70 Watts qualified, licensed electrician.
- Page 2 ® ENVI-LIGHT Color Tunable Mirror INSTALLATION GUIDE REQUIRED COMPONENTS INSTALLATION TURN POWER OFF AT CIRCUIT BREAKER SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation. 1. ENVI-LIGHT Color Tunable Mirror ® 2.
- Page 3 ® ENVI-LIGHT Color Tunable Mirror INSTALLATION GUIDE INSTALLATION (CONT.) ATTACH BRACKETS TO BACK OF MARK WALL MOUNT ON SURFACE ENVI-LIGHT ® Locating two studs, mark drilling points for screw Using included screws, fasten brackets to back of mounts. ENVI-LIGHT ® STUD ~16”...
- Page 4 ® ENVI-LIGHT Color Tunable Mirror INSTALLATION GUIDE INSTALLATION (CONT.) PLUG ENVI-LIGHT INTO WALL ® OUTLET MOUNT ENVI-LIGHT TO WALL ® PLATE While pulling bracket straps down, place back of ENVI-LIGHT onto wall plate using hooks. ® TURN POWER ON AT CIRCUIT BREAKER Place bottom of ENVI-LIGHT brackets into wall...
- Page 5 AND ADJUST ® Turn power OFF at circuit breaker and verify all connections. COLOR TEMPERATURE Review SYSTEM DIAGRAMS and TROUBLESHOOTING or call Diode LED Technical Support at 877.817.6028. Turn dial clockwise until it clicks, and the fixture illuminates. Symptom Common Cause Fixture does not •...
