PUMA

USER'S MANUAL

Table of Contents

Need help?

Do you have a question about the PUMA and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecomobility Green World PUMA

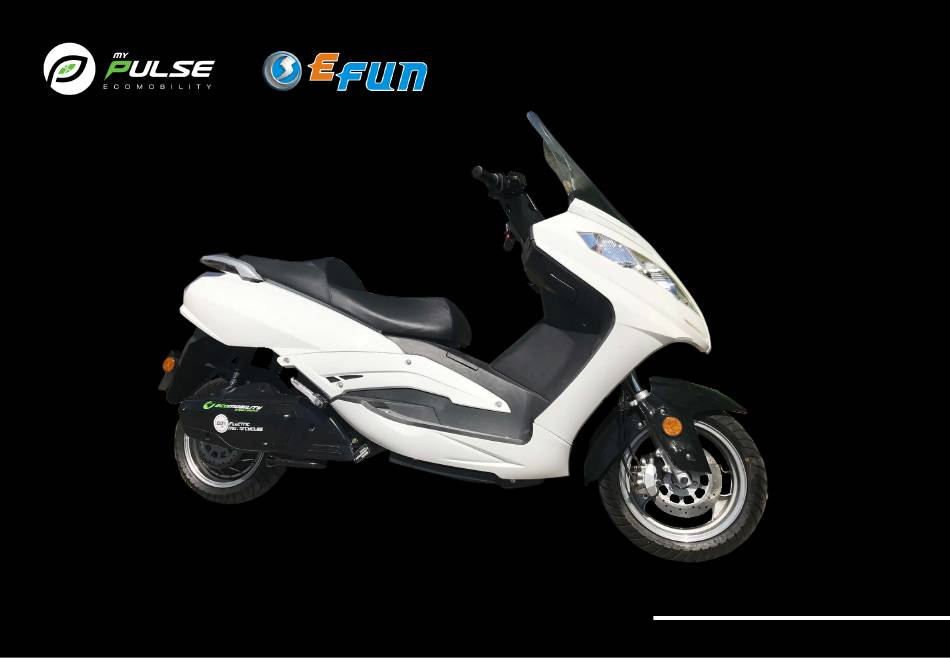

Page 1 PUMA USER’S MANUAL...
Page 2 Ecomobility Green World S.L. C/ Horizonte 8, Local 6, P.I.S.A. 41927 – Mairena del Aljarafe Sevilla, Andalucía, España, Europa, El Mundo.
Page 3 WELCOME TO THE ELECTRIC REVOLUTION Dear PUMA owner: Congratulations, you are taking part of the electric revolution and from Ecomobility Green World we welcome you. The Twenty-First Century will be remembered as the biggest electrification process of urban mobility and this is only possible thanks to of people like you, convinced of changing to a clean and sustainable riding.
Page 5: Table Of Contents
CONTENTS TABLET Introduction Safety Driving Scooter Identification First Start Display Battery Indicator Power Indicator Controls Aceleration and Braking Efficient Driving Charging Technicals Specifications Vocabulary...
Page 6: Introduction
INTRODUCTION Your PUMA is an electric scooter that will turn your daily life easier. You can drive it with your car license and you will never worry again about traffic jams, gas stations or to park it. We call it #instanttorque and we think it is addictive!
Page 7: Safety Driving
SAFETY DRIVING 4) Battery Check: Make sure your scooter is enough General instructions before riding: charged for your ride and always check the battery 1) Tire pressures: Check the tires for correct inflation indicator while you are riding. Ensure that battery does and for any signs of physical damage.
Page 8 SAFETY DRIVING 10) Parking: Your bike should not be left in strong, direct 8) Safety notice: sunlight or heavy rain for extended periods of time as it will prematurely age and damage paintwork and the general 8.1. Key in “OFF”: To avoid the scooter moving away finish of the scooters appearance and some of the electric without warning, always turn the key to the “OFF”...
Page 9: Scooter Identification
SCOOTER IDENTIFICATION Dealer information: Name of the Dealer: __________________________________ Address of the Showroom: _______________________________________ _________________________ ____________ Tel:___________________________________ Identification Plate E-mail: Frame VIN (side) _______________________________________ (under the box) Invoice date: ___________________________ Scooter information: PUMA Model: VIN: _______________________________________...
Page 10: First Start
FIRST START SAFETY CIRCUIT BREAKER KEY LOCK The scooter includes a safety The bike has 3 key locks: circuit breaker under the seat that disconnects all the electric system of the bike in case it detects an extreme overcurrent or overheat and it must be manually rearmed.
Page 11 DASHBOARD Speedometer Power Indicator Battery Indicator...
Page 12: Display
BATTERY INDICATOR 10 bars display Bar Display Voltage Description 10/10 More than 80V Full Battery 7/10 Less than 78V Half Battery Less than 3/10 Less than 72V Low Battery LOW BATTERY: Under 72V the controller will limit the current output to the motor, therefore the top speed will be reduced to save energy.
Page 13 BATTERY INDICATOR That’s an example about how your battery gets discharged: stage: Exponential area. From 84V to 78V You will notice that first run after charging will easily burn the first battery indicator bar. Don’t worry, it won’t be proportional! stage: Nominal area.
Page 14: Power Indicator
POWER AND BATTERY INDICATOR Charging Indicator (1) Efficency Driving Lock System (2) Low Battery (3) Half Power Charging Connector 1. Blinking Red: The Battery is charging • 1. Blinkin Yellow: The Battery is balancing the cells . • 1. Green: Maximum Power •...
Page 15: Controls
CONTROLS CONTROL ACTION Throttle grip Torque : Twisting the throttle grip Riding backwards: Press the Reverse button Reverse and twist the throttle to ride backwards. Disables traction: Interruptor “OFF” Killswitch Enables traction: Interruptor “ON” The accelerator will be interrupted while any brake lever is pushed.
Page 16 CONTROLS CONTROL ACTION Fixed light: Push the switch up High beam Burst light: Push the button down Right lights: Slide right Turning signal Turn blinkers OFF: Push central button switch Left lights: Slide left Claxon button Sound the claxon: Push The accelerator will be interrupted while any brake lever is pushed.
Page 17: Aceleration And Braking
ACCELERATION AND BRAKING Acceleration tips: 1. Turn the key “ON” and check the killswitch is in “ON” position. Remove the side stand and then your bike will be ready to ride as soon as you twist the throttle. 2. Your scooter has a great acceleration capability. To avoid loosing control you must twist the throttle slowly while speed increases gradually.
Page 18: Efficient Driving
EFFICIENT DRIVING Tips for increasing efficiency (maximum range) : 1. Accelerate gradually and smoothly. Avoid quick unnecessary accelerations. 2. Avoid hard braking, try to anticipate to the brake necessity with time enough to stop the scooter by reg. braking when it will be possible. 3.
Page 19 BATTERY RECHARGE ● The battery must be charged through original external charger (AC-DC converter) for maximum longevity and to preserve warranty. NEVER PLUG THE BATTERY DIRECTLY TO THE GRID (AC). ● Turn the circuit breaker disconnected while charging the battery connected to the controller.
Page 20: Charging
TECHNICAL SPECIFICATIONS BATERÍA MOTOR Motor type BLDC 12-3000 Battery type Li-ion NMC Motor location Rear Wheel hub motor Nominal voltaje 72 V Field Oriented Control (FOC) Motor controller 150A max – 45A continuos Max voltaje 84 V Torque (max/nominal) 120Nm / 50Nm Power (max/continuous) 3.9 kW / 3 kW Nominal Capacity...
Page 21 TECHNICAL SPECIFICATIONS CYCLE PARTS / BRAKES Aluminium rim Front Wheel 130/60-13 Hub motor Rear Wheel 130/60-13 Front suspension Telescopic fork Rear suspension Dual shock absorber Front brake Disc brake 220mm Rear brake Disc brake 220mm Total lenght 2150mm Seat height 760mm Wheelbase 1530mm...
Page 22: Vocabulary
Vocabulary Vocabulary Vocabulary State of Charge Vehicle Identification Number Deep of Discharge Cimbined Brake System State of Health Maximum Mass Authorised Voltage (Volts) European Union Current (Amperes) PMSM Permanet Magnets Synchronous Motor Relative Capacity (Amperes hour) Li-ion Lithium ion Power (Kilowatts) Nickel, Manganese, Cobalt Energy (Kilowatts hour) CC-CV...
Page 23 Ecomobility Green World C/ Horizonte 8, Local 6 41927 Mairena del Aljarafe Sevilla – Andalucía – España info@ecomobilitygreenworld.com www.ecomobilitygreenworld.com...
