Atlas Lighting Products FLLX Series Installation Instructions

Lighting Products
Atlas
Lighting Products
Atlas
Models: FLLS | FLL | FLLX Series
Lighting Products
IMPORTANT: READ BEFORE REMOVING FIXTURE FROM CARTON.
Atlas
RETAIN FOR FUTURE REFERENCE
SAFETY: This fixture must be wired in accordance with the
NATIONAL ELECTRICAL CODE and applicable local codes and ordinances.
A person familiar with the construction and operation of the product and the
Lighting Products
hazards involved must install this product. A qualified licensed electrician should
complete all work. Proper grounding is required for safety.
WARNING: Make certain power is OFF before installing or maintaining fixture.
Atlas
RISK OF INJURY: Fixture may become damaged and/or unstable if not
installed properly.
Lighting Products
Atlas
TRUNION
MOUNTING - For floodlights supplied with a trunion mount to any surface,
with 5/16" bolts you provide. Make sure the fixture is securely fastened.
AIMING - Remove small position-lock screw. Loosen adjustment bolt and adjust
Lighting Products
the fixture to the desired position. Tighten adjustment bolts securely (10ft/lbs).
Reinsert small position lock screw.
Atlas
NOTE:Remove drain hole plugs after installation. If fixture is aimed upward, remove the
(2) drain holes in the back (of housing). If aimed downward, remove the (2) in the front
(of housing).
Lighting Products
SLIPFITTER
MOUNTING - For floodlights supplied with a slipfitter mount slipfitter over tenon
(after wiring process). Securely tighten two allen head set screws.
Slipfitter is designed to fit over 2 3/8" tenon or pipe.
AIMING - Remove side adjustment panel by removing locking screws. Loosen
adjustment bolt and adjust the fixture to the desired position. Tighten
adjustment bolt. Replace side adjustment panel and replace screws.
NOTE:Remove drain hole plugs after installation. If fixture is aimed upward, remove the
(2) drain holes in the back (of housing). If aimed downward, remove the (2) in the front
(of housing).
THREE- OR FIVE-YEAR LIMITED WARRANTY: Atlas warrants that its products will be free from defects in materials and workmanship for a period of three (3) years from the date on which the
product was purchased from Atlas. This warranty applies to LED products, motion fixtures, motion sensors, and electronic ballasts for a period of five (5) years. When this three- or five-year warranty
period ends, all warranties (whether express or implied) and liability of Atlas shall immediately cease. The warranty period for all lamps and photocells is one (1) year.
LIMITATION ON IMPLIED WARRANTIES: ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE,
ARE LIMITED TO AND SHALL NOT EXCEED THE TERMS OF THIS LIMITED WARRANTY.
FURTHER LIMITATIONS OF THIS WARRANTY: This limited warranty DOES NOT cover damage resulting from accident, misuse, abuse, improper repair, lack of reasonable care, modification
(including but not limited to use of unauthorized parts or attachments), alteration, loss of parts, installation and operation contrary to printed instructions, vandalism, acts of God (lightning, power
surges, water damage or similar failure), or transit (including UPS shipments). This limited warranty also does not include labor costs associated with installing replacement parts for any defective
parts returned to Atlas under this warranty.
DUTY AND PROCEDURE TO NOTIFY ATLAS OF DEFECT: Notification of a defect under this warranty must be provided to Atlas within ninety (90) days after discovery of the defect. Notification
occurs only by sending the following to Atlas: (1) sales receipt, (2) the date of purchase, and (3) a brief explanation of the nature of the defect. This information must be either e-mailed to Atlas at
returns@alpinc.com or mailed to Atlas Lighting Products, Inc., Attn: Customer Service Department, P.O. Box 2348, Burlington, NC 27215. The date of the postmark of the mailing to Atlas shall
constitute the date of notification under this warranty. If the information is e-mailed, the date that the e-mail is sent to Atlas shall constitute the date of notification under this warranty. Upon receiving
a timely notification, Atlas will, if the notification reflects a defect of materials or workmanship, provide a Return Goods Authorization number and full instructions for returning defective merchandise.
All returned goods must be accompanied by a Return Goods Authorization number issued by Atlas.
SOLE REMEDY: REPAIR OR REPLACEMENT: If, upon receiving a timely notification with the information stated above and receiving merchandise that appears to Atlas to suffer from a defect in
materials or workmanship, Atlas will — at Atlas's sole option — either repair the defective part(s) or provide a replacement part or parts. This remedy constitutes the sole remedy under this warranty
and Atlas's sole liability in connection with any defective part(s). Atlas shall not be liable for any other expense, injury, loss or damage, whether direct, special, incidental, or consequential
(including but not limited to loss of use, income, profit, or production, inconvenience, increased cost of operation, and spoilage of or damage to material and personal property). As
stated above, this limited warranty does not include labor costs associated with installing replacement parts for any defective parts returned to Atlas under this warranty.
NO OTHER REPRESENTATIONS: No other representations, written or verbal, have been authorized by Atlas. No representative of Atlas has any authority to waive, alter, vary, or add to the terms
hereof without prior approval in writing by an authorized representative of Atlas.
SEVERABILITY: The foregoing provisions are severable. If any provision shall be unenforceable for any reason, the other provisions shall remain in effect.
DISCLAIMER: ATLAS LIGHTING PRODUCTS, INC. MAKES NO REPRESENTATIONS (WRITTEN OR VERBAL) OR WARRANTIES (EXPRESS OR IMPLIED) AS TO ANY MATTER
WHATSOEVER, INCLUDING WITHOUT LIMITATION THE CONDITION, MERCHANTABILITY, OR FITNESS FOR ANY PARTICULARY PURPOSE OF ANY PRODUCT, EXCEPT AS EXPRESSLY
SET FORTH UNDER THIS LIMITED WARRANTY.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

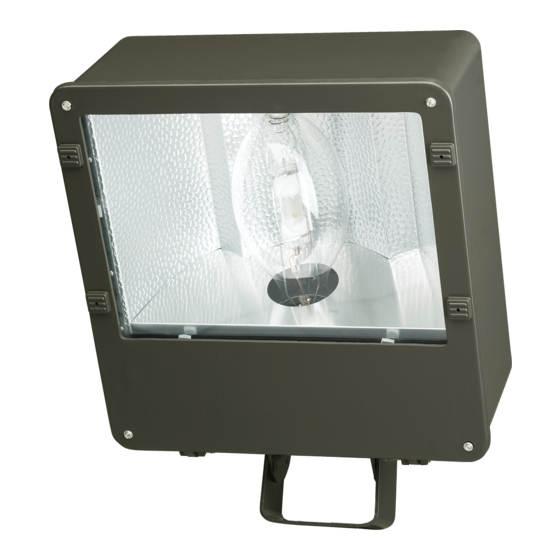

12" | 16" | 23" FLOODLIGHT
INSTALLATION INSTRUCTIONS

WIRING

Use Supply wire (3' SJO cord supplied) rated for 90°
1. Turn off electrical supply at the breaker.
2. Follow all local electrical codes for wiring and grounding requirements.
3. Check to make sure that the supply voltage to the fixture is compatible with
4. Connect the white fixture wire with white service wire.
5. Connect the black fixture wire to the black service wire.
6. Connect the green fixture wire to the ground wire.
7. Make sure all connections are secure using approved connecting devices.

LAMP SERVICE

Turn off power supply. Allow the fixture to cool.
1. Loosen door frame screws and open front of housing.
2. Remove old lamp by unscrewing counter clockwise.
3. Install new lamp by screwing clockwise until firmly seated in lamp holder.
4. Close front of housing and secure with screws.
WARNING: Replace only with a lamp of same type and wattage as indicated on
the fixture product label.
ATLAS LIGHTING PRODUCTS, INC.'S LIMITED WARRANTY
the fixture ballast.
240-006G
