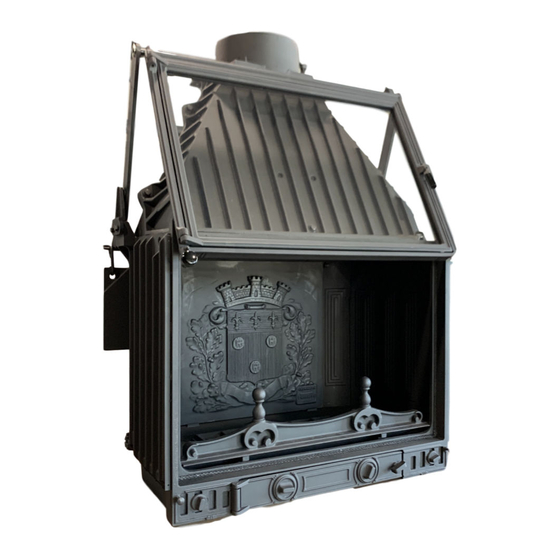

RADIANTE 700
LEGEND
Firebox Dimension
Exact Dimension
Minimum Dimension
Air Intake
Air Outlet
NOTES:
[1] Air intake grilles minimum air flow area required
= 180cm
2
each side.
[2] Air outlet grilles minimum air flow area = 240cm
and 480cm
2
if one grille is used.
[3] Hearth height dimensions optional (Refer to Technical Data
& Installation Instructions)
[4] All dimensions in millimetres.
[5] Heater can be left freestanding.
[6] Do not scale from these diagrams
[7] Air transfer kits mandatory for exempt units to comply to
AS/NZ 4012/4013:2014. Fan optional depending
on duct length. ( Refer to Technical Data & Installation
Instructions )
FIREPLACE
CONSTRUCTION STEP 1
FIREPLACE
CONSTRUCTION STEP 2
Cutaway
showing
lintel
430 Johnston St., Abbotsford, Victoria 3067 Phone: 03 9417 3315
e-mail: sales@wignells.com.au www.chemphilaust.com.au

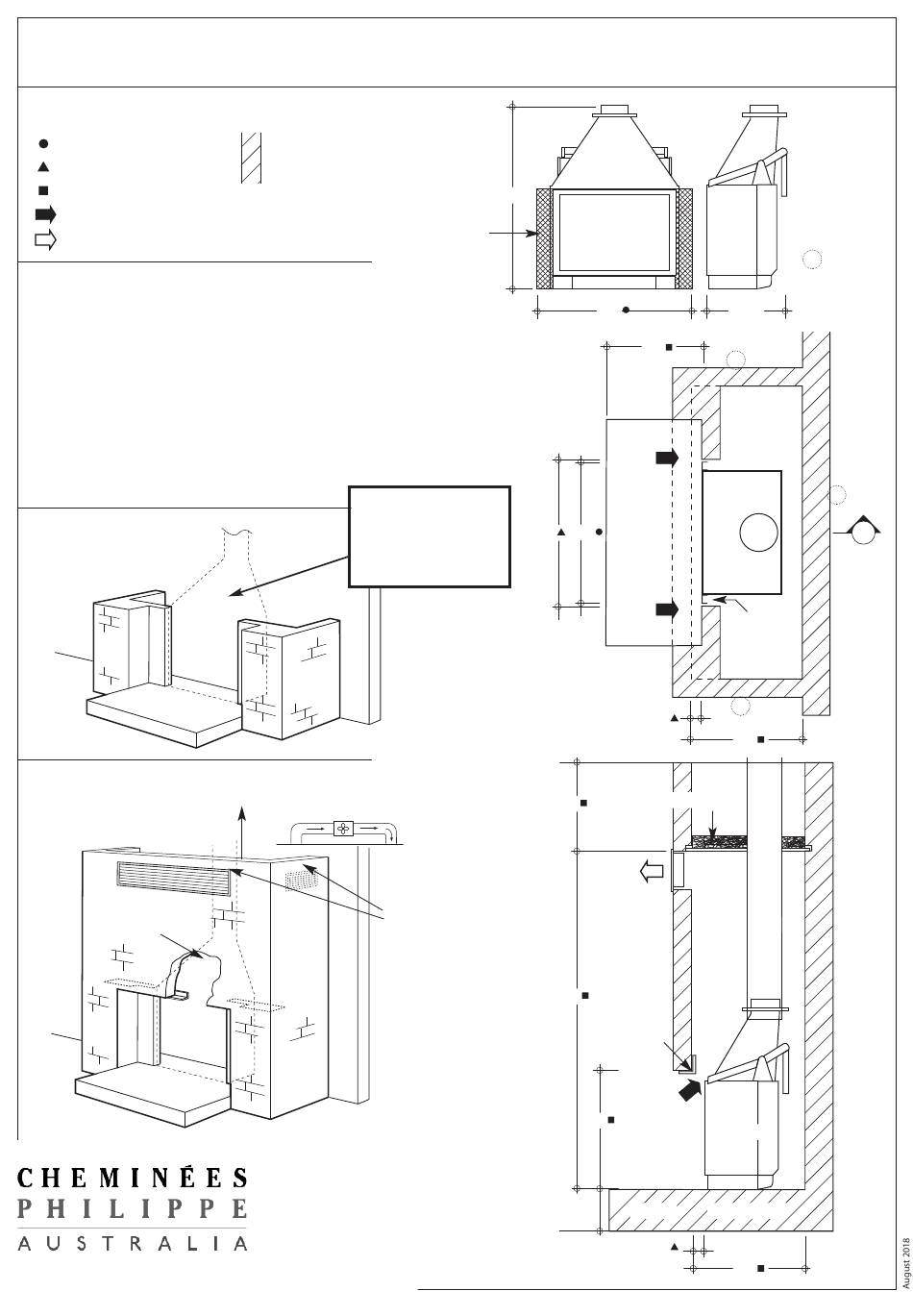

STANDARD INSTALLATION
Brick Masonry
OR
50mm Skamotec 225
Mesh vents
2
each side
IMPORTANT:
NO BRICKWORK TO
BE COMMENCED
UNTIL FIREBOX IS
PLACED IN POSITION
To ceiling height
Air Transfer Kit
Ceiling
Air grilles to be
either large front
as shown, or sides
x2 (dotted).
Cheminees Philippe's policy is one of continuous development. We reserve the right to change sizes and specifications without notice.
1110
850
500
850
860
50
Firerock Insulation
500
Air Grille
1800
Lintel
600
See note [3]
Hearth
50
SECTION 'A'
*
= 30mm air gap
to combustibles
when using
498
Skamotec
*
*
A
Mesh
vent
*
630
Flue
Firebox
Fireplace base
630
