Device Manual
IO-Link Master with PROFINET interface
CabinetLine
8 Ports
IP 20
AL1900
IO-Link: 1.1.2
ifm firmware: 2.1.35 or higher
LR DEVICE: 1.3.1.x or higher
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL1900 and is the answer not in the manual?

Questions and answers

Related Manuals for IFM Electronic AL1900

Summary of Contents for IFM Electronic AL1900

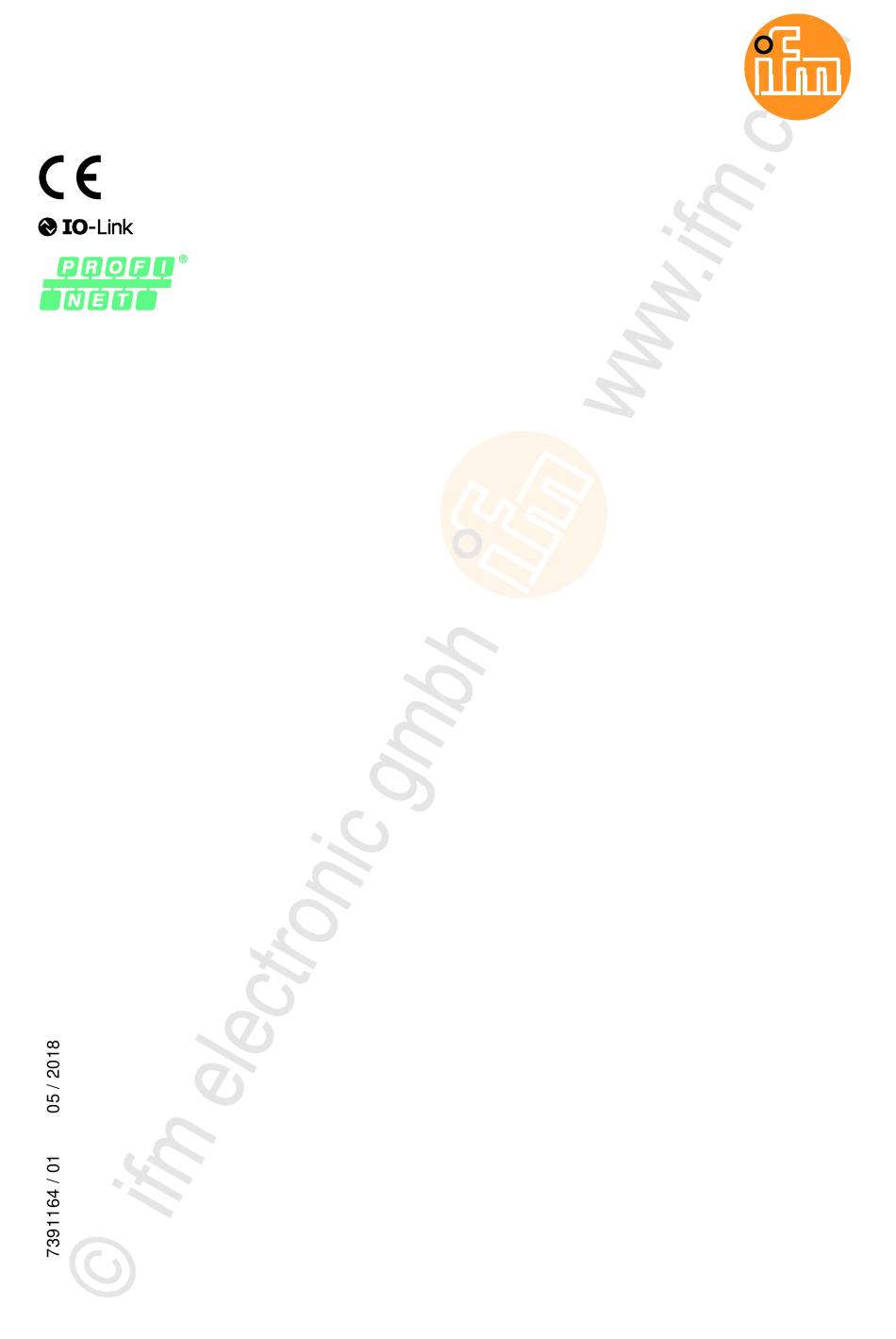

  • Page 1 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 AL1900 IO-Link: 1.1.2 ifm firmware: 2.1.35 or higher LR DEVICE: 1.3.1.x or higher English...

  • Page 2: Table Of Contents

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Content Table of Contents Preliminary note Legal and copyright information ................... 5 Purpose of the document ..................... 5 Symbols and styles used ..................... 5 Modification history ......................
  • Page 3 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Content Configuration LR DEVICE ........................24 8.1.1 Remarks ............................. 25 8.1.2 IoT: Configure access rights ....................... 26 8.1.3 IoT: Configure IP settings ......................27 8.1.4 IoT: Configure the interface to the LR SMARTOBSERVER ............
  • Page 4 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Content 13.1.5 Outputs ............................66 13.1.6 Interfaces ............................ 66 13.1.7 Environmental conditions ......................67 13.1.8 Approvals / tests ......................... 67 13.1.9 Mechanical data ......................... 67 13.1.10...

  • Page 5: Preliminary Note

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Preliminary note Legal and copyright information Preliminary note Legal and copyright information ....................... 5 Purpose of the document ......................... 5 Symbols and styles used .......................... 5 Modification history ...........................

  • Page 6: Modification History

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Preliminary note Modification history Death or serious irreversible injuries may result. CAUTION Slight reversible injuries may result. NOTICE Property damage is to be expected or may result.

  • Page 7: Safety Instructions

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Safety instructions General Safety instructions General ..............................7 Required background knowledge ......................7 Safety symbols on the device ........................7 Tampering with the unit ..........................8 >...

  • Page 8: Tampering With The Unit

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Safety instructions Tampering with the unit > Tampering with the unit 11242 WARNING Tampering with the units can affect the safety of operators and machinery! Tampering with the units is not allowed.

  • Page 9: Intended Use

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Intended use Permitted use Intended use Permitted use ............................9 Prohibited use ............................9 18761 > Permitted use 11028 The IO-Link master serves as a gateway between intelligent IO-Link devices and the fieldbus. The device is designed for use as cabinet module in plant construction.

  • Page 10: Function

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Function Prohibited use Function Communication, parameter setting, evaluation ..................11 Digital inputs ............................12 IO-Link supply ............................12 7482...

  • Page 11: Communication, Parameter Setting, Evaluation

    7284 The device provides the following configuration options:  Parameter setting of the IO-Link master of the AL1900 with LR DEVICE parameter setting software, PROFINET projection software or ifm IoT-Core services.  Parameter setting of the connected IO-Link devices (sensors, actuators) with LR DEVICE parameter setting software, PROFINET projection software or ifm IoT-Core services ...

  • Page 12: Visual Indication

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Function Digital inputs > 4.1.5 Visual indication 7772 The device has the following visual indicators:  Status and error indication of the gateway, of the PROFINET connection and of the system ...

  • Page 13: Mounting

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Mounting Install the device Mounting Install the device .............................13 22016 > Install the device 16676 ► Disconnect power before installation. The device contains components that can be damaged or destroyed by electrostatic discharge.

  • Page 14: Electrical Connection

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Electrical connection Install the device Electrical connection Remarks ..............................15 PROFINET ports ............................15 IoT port ..............................16 IO-Link ports ............................17 Connect the device ..........................19 22017...

  • Page 15: Remarks

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Electrical connection Remarks > Remarks 23709 A qualified electrician must connect the unit. ► Observe the national and international regulations for the installation of electrical equipment.

  • Page 16: Iot Port

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Electrical connection IoT port > IoT port 17859 ► Connect the device via the socket "IoT" (X23) to the IT network (e.g. laptop/PC with the installed LR DEVICE parameter setting software, laptop/PC with installed LR SMARTOBSERVER monitoring software).

  • Page 17: Io-Link Ports

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Electrical connection IO-Link ports > IO-Link ports 17860 ► Connect the IO-Link devices to the terminals X01 ... X08. Technical data  Wiring: →...

  • Page 18: Input Circuit

    The IO-Link ports of the device meet the requirements of the IO-Link specification 1.0 bis 1.1.2. The power supply of the connected IO-Link devices may only take place via the AL1900. Exception: Connection of IO-Link devices with additonal external power supply to ports X01...X08 for port class B operation...

  • Page 19: Connect The Device

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Electrical connection Connect the device > Connect the device 17851 ► Disconnect power. ► Connect the IO-Link master via port X31 to 24 V DC (20...30 V SELV/PELV;...

  • Page 20: Operating And Display Elements

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Operating and display elements Overview Operating and display elements Overview ..............................20 LED indicators ............................21 5440 > Overview 10998 IOL and DI status-LEDs of the IO-Link port (X01...X08 IO-Link ports (Class A) (→...

  • Page 21: Led Indicators

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Operating and display elements LED indicators > LED indicators 22024 The device only has the following LED indicators: > 7.2.1 Status LEDs 22034 The RDY LED shows the status of the gateway.

  • Page 22: Iot Port

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Operating and display elements LED indicators > 7.2.3 IoT port 7722 The IoT port (X23) has the 3 LNK, ACT and IoT LEDs. The LEDs indicate the status of the Ethernet connection and the device identification.
  • Page 23 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LED indicators Configuration LR DEVICE .............................24 PROFINET..............................34 IoT Core ..............................44 22367...

  • Page 24: Configuration Lr Device

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > LR DEVICE Remarks ..............................25 IoT: Configure access rights ........................26 IoT: Configure IP settings ........................27 IoT: Configure the interface to the LR SMARTOBSERVER ..............28 Fieldbus: Configure the PROFINET port ....................28...

  • Page 25: Remarks

    IO-Link master and the connected IO-Link devices without being connected to the AL1900 (OFFLINE mode). The configuration created in this way can be stored as a file (*.lrp) and loaded to the AL1900 and activated at a later date.

  • Page 26: Iot: Configure Access Rights

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.2 IoT: Configure access rights 16555 The access rights define which instance may read and / or write the parameter data, process data and event/diagnostic messages.

  • Page 27: Iot: Configure Ip Settings

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.3 IoT: Configure IP settings 17713 For access to the IO-Link master via the IT infrastructure the user has to set the IP settings of the IoT port.

  • Page 28: Iot: Configure The Interface To The Lr Smartobserver

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.4 IoT: Configure the interface to the LR SMARTOBSERVER 16552 To enable data transfer between the device and the LR SMARTOBSERVER monitoring software, the LR SMARTOBSERVER monitoring software interface has to be configured.
  • Page 29 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE The user can decide separately for each IO-Link port if the process data of the connected IO-Link devices should be transferred to the LR SMARTOBSERVER.

  • Page 30: Io-Link Ports: Configure Operating Mode

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.7 IO-Link ports: Configure operating mode 17439 The IO-Link ports X01...X08 of the device support the following operating modes: ...

  • Page 31: Io-Link Ports: Set The Device Validation And Data Storage

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.8 IO-Link ports: Set the device validation and data storage 17945 In the operating mode "IO-Link" the user can set the behaviour of the IO-Link port with regard to device validation and the storage / restoration of the parameter data of the connected IO-Link device.

  • Page 32: Firmware: Reset Device To Factory Settings

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE 8.1.9 Firmware: Reset device to factory settings 7209 When the IO-Link master is reset, all parameters are set to the factory settings: To reset the device to factory settings: ►...

  • Page 33: Configure Io-Link Devices

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration LR DEVICE > 8.1.11 Configure IO-Link devices 11033 To configure the IO-Link devices connected to the device with the LR DEVICE parameter setting...

  • Page 34: Profinet

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET > PROFINET Install GSD file ............................35 Add the IO-Link master to the PROFINET network ................36 Configure access rights ..........................38 Configure IO-Link ports ..........................39 Configure the PROFINET port........................40...

  • Page 35: Install Gsd File

    Install GSD file 22410 To represent the AL1900 in a field bus projection software (e.g. STEP 7), ifm provides a GSD file. The user can download the GSD file from the ifm website (→ (www.ifm.com)). In the GSD file, all parameters, process data, and their valid value ranges are defined.

  • Page 36: Add The Io-Link Master To The Profinet Network

    ► Open STEP-7 application "HW Config". > Program window shows the hardware structure of the project. ► Open hardware catalogue. ► Move the [AL1900] node via drag&drop from the hardware catalogue to the PROFINET connection. > STEP 7 shows the device as PROFINET bus participant.
  • Page 37 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET Add IO-Link ports ► Move the [8 Ports] node via drag&drop from the hardware catalogue to slot 1 of the AL1900. > Step 7 shows available IO-Link interfaces. ► Save the project.

  • Page 38: Configure Access Rights

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET > 8.2.3 Configure access rights 22760 In order to configure the access rights to the device: Open device editor ► Open STEP-7 application "HW Config".

  • Page 39: Configure Io-Link Ports

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET > 8.2.4 Configure IO-Link ports 17306 In STEP 7, the following assignment of the PROFINET slots to the IO-Link ports of the device applies:...

  • Page 40: Configure The Profinet Port

    > 8.2.6 Configure IO-Link devices 18428 The AL1900 supports the configuration of the connected IO-Link devices out of the PROFINET projection software. The configurable parameters depend on the corresponding IO-Link device. PROFINET: Programmers' notes Information about the usable functions: →...

  • Page 41: Read And Write Data Cyclically

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET > 8.2.7 Read and write data cyclically 17372 Mapping: IO-Link ► To check the validity of the cyclic process data, evaluate the PQI byte (→...

  • Page 42: Profinet: Programmers' Notes

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET > 8.2.9 PROFINET: Programmers' notes 12761 The programmer can access on the following data from the PLC application:  Read device information of the AL1900 ...
  • Page 43 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration PROFINET Configure IO-Link devices 1860 Symbol / function Description Remarks block IO_LINK_DEVICE / Acyclic access to the parameters of an IO-Link Input parameters:...

  • Page 44: Iot Core

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > IoT Core Configure IoT interface ...........................45 Configure the fieldbus interface ......................45 Configure IO-Link ports ..........................46 Configure IO-Link devices ........................46 Set application identification ........................47 Read / write cyclic process data ......................47...

  • Page 45: Configure Iot Interface

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core 8.3.1 Configure IoT interface 16540 The parameters of the IoT port X23 are saved in the iotsetup substructure. The user can access the...

  • Page 46: Configure Io-Link Ports

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core 8.3.3 Configure IO-Link ports 16454 Parameters of the IO-Link ports of the IO-Link master are saved in the iolinkmaster/port[n] substructure. There are the following data points for each IO-Link-Port X01...X08 :...

  • Page 47: Set Application Identification

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > 8.3.5 Set application identification 16580 The application name of the IO-Link master is saved in the devicetag substructure. The user can...

  • Page 48: Control Io-Link Master

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > 8.3.8 Control IO-Link master 17963 The device can be controlled via the following services: Service Description Access firmware/version Firmware version of the IO-Link master...

  • Page 49: Read Information About Io-Link Devices

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > 8.3.10 Read information about IO-Link devices 16553 Information about an IO-Link device connected via an IO-Link port is saved in the iolinkmaster/port[n]/iolinkdevice/ substructure.

  • Page 50: Examples

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > 8.3.11 Examples Example: Read process data of an IO-Link device ................50 Example: Read several parameter values of the IO-Link master simultaneously ........51 Example: Change name of the IO-Link master ..................51...

  • Page 51: Example: Read Several Parameter Values Of The Io-Link Master Simultaneously

    > Example: Change name of the IO-Link master 10987 Task: Set the name of the IO-Link master to AL1900 for the representation in the LR SMARTOBSERVER. Solution: Change the parameter [Application Tag] with the setdata service to the value [AL1900].

  • Page 52: Example: Read The Parameter Value Of An Io-Link Device

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > Example: Read the parameter value of an IO-Link device 16546 Task: Read the serial number of the ifm temperature sensor TN2531 at IO-Link port X02...

  • Page 53: Example: Subscribe To Event

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > Example: Subscribe to event 17946 Task: The current values of the following parameters should be sent regularly to a network server with IP address 192.168.0.4: product name of the IO-Link device at IO-Link port X02, cyclic input data of...

  • Page 54: Programmers' Notes

    Device description 14411 The IoT Core creates a device description on the AL1900. This device description is a structured, machine-readable data object in JSON format. All current values of parameters, diagnostic data and device information are mapped in this data object. The user can access this data object from IT networks.
  • Page 55 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > Access ifm-IoT Core 17561 To activate the changes of the parameter values the IoT Core must have the respective write access rights to the IO-Link master (→...
  • Page 56 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > POST method 16548 Using the POST method the user has read and write access to a data point. A form with the required information is transferred to the IP address of the IO-Link master (IoT port X23).
  • Page 57 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Configuration IoT Core > IoT Core: Diagnostic codes 17437 The ifm IoT Core uses the following diagnostic codes: Code Description OK; but reboot required...

  • Page 58: Operation Firmware Update

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Operation Firmware update Operation Firmware update .............................58 Web interface: Read device and diagnostic information ................59 Replace IO-Link device ..........................60 22368 > Firmware update 16582 The new firmware is installed via the device's web interface.

  • Page 59: Web Interface: Read Device And Diagnostic Information

    ► Connect laptop/PC and AL1900 via the Ethernet internet. ► Start web browser. ► Enter the IP address of the AL1900 into the address field of the browser and press [ENTER] to confirm. > Web browser shows the web interface of the device.

  • Page 60: Replace Io-Link Device

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Operation Replace IO-Link device Replace IO-Link device 7775 To replace an IO-Link device: Requirement: > IO-Link device is with factory settings. > IO-Link device supports IO-Link standard 1.1 or higher.

  • Page 61: Maintenance

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Maintenance Replace IO-Link device Maintenance 21577 The operation of the unit is maintenance-free. ► Clean the surface of the unit when necessary. Do not use any caustic cleaning agents for this! ►...

  • Page 62: Factory Settings

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Factory settings Replace IO-Link device Factory settings 16542 In the factory settings, the device has the following parameter settings: Parameter Factory setting [IP address] (PROFINET) 0.0.0.0...

  • Page 63: Accessories

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Accessories Replace IO-Link device Accessories 17853 List of accessories of AL1900: → www.ifm.com > Product page > Accessories...

  • Page 64: Appendix

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix Replace IO-Link device Appendix Technical data ............................65 PROFINET..............................69 ifm IoT Core ............................77 7156...

  • Page 65: Technical Data

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix Technical data > 13.1 Technical data Application ..............................65 Electrical data ............................65 Inputs / outputs ............................65 Inputs ..............................66 Outputs ..............................66 Interfaces ..............................66 Environmental conditions ........................67 Approvals / tests .............................67...

  • Page 66: Inputs

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix Technical data > 13.1.4 Inputs 22820 Inputs Number of digital inputs 16; (IO-Link Port Class A: 8 x 2) Switching level high [V] 11...30 DC...

  • Page 67: Environmental Conditions

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix Technical data > 13.1.7 Environmental conditions 17862 Environmental conditions Applications Control cabinet Ambient temperature [°C] -25...65 Storage temperature [°C] -25...85 Max. perm. relative air humidity [%] 90, linearly decreasing to 50 % (40 °C)

  • Page 68: Electrical Connection

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix Technical data > 13.1.10 Electrical connection 11030 Voltage supply IN X31 Plug and socket connection COMBICON Wiring GND (US) GND (US) + 24 V DC (US) + 24 V DC (US) Process connection IO-Link ports Class A X01...X0<IOL_AnzPorts>...

  • Page 69: Profinet

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET > 13.2 PROFINET Parameter data ............................69 Cyclic data ..............................72 Acyclic data ............................74 22433 > 13.2.1 Parameter data 1630 Slot Subslot Name Description...
  • Page 70 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET Parameters of the IO-Link ports 22787 Parameter Description Possible values [Fail-safe mode] Behaviour in case the PROFINET No Fail Safe deactivated connection is interrupted...
  • Page 71 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET Parameter Description Possible values  Type compatible V1.1 IO-Link device is compatible with device with Restore the V1.1 IO-Link standard  Verification whether it is an IO-Link...

  • Page 72: Cyclic Data

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET > 13.2.2 Cyclic data PROFINET modules ..........................72 PQI (Port Qualifier Information) ......................73 22429 > PROFINET modules 22685 Module Description IO-Link 32I/32O + PQI...
  • Page 73 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET > PQI (Port Qualifier Information) 22686 Port Qualifier Information (PQI) contains diagnostic information about the IO-Link port. In addition to the process data, the IO-Link master sends the PQI to the PROFINET controller.

  • Page 74: Acyclic Data

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET > 13.2.3 Acyclic data I&M datasets ............................74 Diagnostic and alarms ..........................76 22427 > I&M datasets 22778 The AL1900 supports the following I&M datasets (I&M = Identification & Maintenance): >...
  • Page 75 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET I&M3 (Slot 0) 22781 Variable Description Access* Size Descriptor Description of the device (ASCII, padded with spaces) * ... r/w = read and write >...
  • Page 76 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix PROFINET > Diagnostic and alarms 22784 Name Description Type code 0x02 EVNT_CODE_M_PDU_CHECK Receive frame with CRC error Alarm 0x1B EVNT_CODE_S_RETRY Repetitions detected Alarm...

  • Page 77: Ifm Iot Core

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > 13.3 ifm IoT Core Overview: IoT profile ..........................78 Overview: IoT types ..........................81 Overview: IoT services ...........................82 8988...

  • Page 78: Overview: Iot Profile

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > 13.3.1 Overview: IoT profile Profile: deviceinfo ...........................78 Profile: devicetag ............................79 Profile: iolinkmaster ..........................79 Profile: parameter ...........................80 Profile: processdata ..........................80 Profile: service ............................80...
  • Page 79 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core Profile: devicetag 17438 Element (identifier) Properties mandatory Comments  devicetag type = structure  profiles = devicetag devicetag/applicationtag type = data...
  • Page 80 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Profile: parameter 16545 The profile is used to mark the elements of type data as parameters (acyclic data). The profile defines no substructure.

  • Page 81: Overview: Iot Types

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > 13.3.2 Overview: IoT types 16547 The ifm IoT Core uses the following element types: Name Description structure Element is a structure element (like a folder in a file system)

  • Page 82: Overview: Iot Services

    Return data (data): none > Service: gettree 17435 Name: gettree Description: The service reads the complete device description of the AL1900 and provides it as JSON object. Applicable to: Objects of the device type Request data: none Return data (data):...
  • Page 83 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Service: getdata 12223 Name: getdata Description: Service reads the value of a data point and provides it. Applicable to: Objects of the data type...
  • Page 84 IoT Core > Service: getidentity 17134 Name: getidentity Description: The service reads the complete device description of the AL1900 and provides it as JSON object. Applicable to: Objects of the device type Request data: none Return data (data): Data field...
  • Page 85 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Service: iolreadacyclic 12222 Name: iolreadacyclic Description: The service acyclically reads the parameter value of an IO-Link device. It is accessed via IO-Link index and subindex.
  • Page 86 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Service: setblock 12224 Name: setblock Description: The service simultaneously sets the values of several data points of a structure.
  • Page 87 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Service: setelementinfo 7159 Name: setelementinfo Description: The service sets the uid of an element. Applicable to: Objects of the device type...
  • Page 88 Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Appendix ifm IoT Core > Service: subscribe 10920 Name: subscribe Description: The service subscribes to the values of data points. The data points to be subscribed are transferred as a list.

  • Page 89: Index

    Device Manual IO-Link Master with PROFINET interface CabinetLine 8 Ports IP 20 (AL1900) 05 / 2018 Index Index I&M datasets ..................74 I&M0 (Slot 0) ..................74 I&M0 (Slot 1) ..................75 Access ifm-IoT Core ................55 I&M1 (Slot 0) ..................74 Accessories ...................
