Summary of Contents for JETHRO SC318
- Page 1 Quick Set-Up Guide Model number: SC318...
-
Page 2: Table Of Contents
Jethro SC318 Set-Up Guide Table of contents My phone ..........3 Getting Started ........5 Using the Phone ........6 Saving Contacts to Phonebook ....7 Changing the ringtone ......8 Setting up the SOS function ....9 Setting up the Speed dial ...... 10 Meeting (Vibrate only) mode .... -
Page 3: My Phone

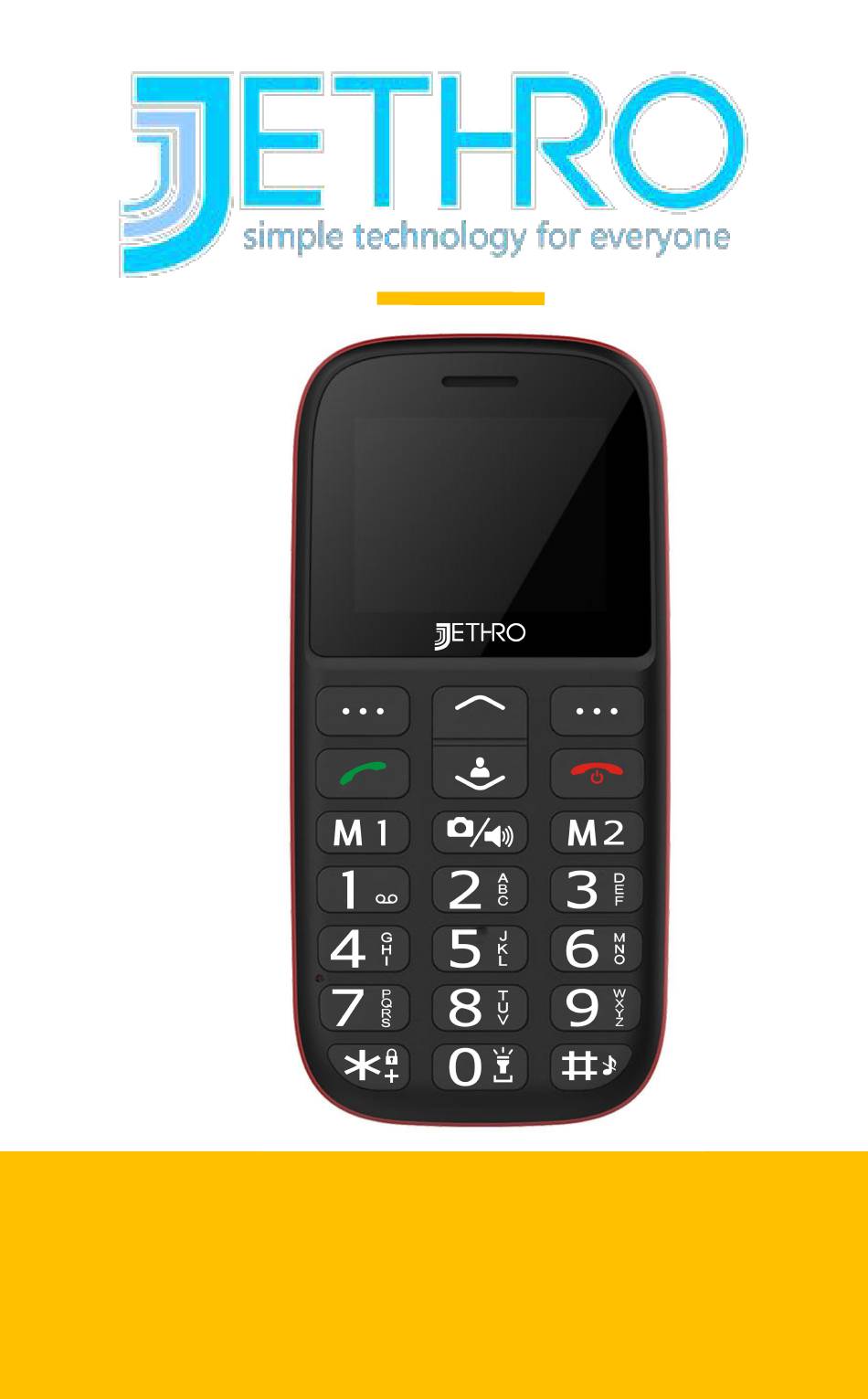

My phone Figure SC318 Speaker Left menu key / main menu Green call button/call list Call in standby mode / Ok button Direct dial button M1 #1 key /Voice mail (press and hold 2 sec) * Button Press this key in standby mode to enter the following characters: * /+ /P / W. - Page 4 Arrow button (up): Shortcut to text Message in standby mode Arrow button (down): Call the Speed dial contacts in standby mode Right menu button/call in standby Mode of the Phonebook Power button (press and hold 8 Seconds), ending the call, reject the call Direct dial button M2 Camera button / Speaker switch...
-
Page 5: Getting Started
Getting Started Inserting a SIM card Remove battery cover (opening bottom left-hand corner) Slide the SIM card into the SIM card holder with gold contacts facing down. Slide your MicroSD card into the card holder with gold contacts facing down... -
Page 6: Using The Phone
Inserting and battery Insert the battery, making sure that battery contacts touch the gold contacts, then place the battery cover and press down until it clicks into place. Using the Phone In standby mode the phone is one, but is not running any applications (call, SMS message, etc.). -
Page 7: Saving Contacts To Phonebook
Press Up/Down arrow keys to flick through the menu items. Press Left menu key to open a menu item. To return to standby mode, press Red button or close the phone. Dual-function keys Some keys have additional functions if they are pressed and held down for a few seconds. -
Page 8: Changing The Ringtone
in standby mode, selecting Phonebook -> OK 1. Press Options New OK 2. To input contact’s name, use down arrow key to move the highlight to Name, then press Edit. Press OK when finish. 3. To input phone number, press the down arrow button to move the highlight to Mobile or Home number, press edit, press OK when finish. -
Page 9: Setting Up The Sos Function
1. Select Profiles 2. Select Normal (or your current Profile) 3. Select Option Settings OK 4. Scroll to and select Ring Settings Caller ringtone Select 5. Choose ringtone from Fixed ringtones (comes with the phone) or More ringtones (download from your computer to phone memory or optional MicroSD card) - Page 10 2. Scroll to and select Settings 3. Select SOS setting OK (Ensure Status is checked), scroll to Set SOS numbers Select 4. Select No. 1. (if no numbers have been previously programmed it will be empty) 5. You can use keypad to key in the SOS contact numbers, or press Contacts to choose a saved contact from Phonebook.
-
Page 11: Setting Up The Speed Dial
Please note: SOS message will only be sent to mobile phone numbers (in SOS list). SOS calls need to be accepted by the receiver within a specific timeframe. If you are programming a phone number that has an automatic answering feature please test before use. -
Page 12: Meeting (Vibrate Only) Mode
1. Select 2. (If no number has been previously programmed will “Empty”), press Options Edit 2. You can use keypad to key in the phone number or press Contacts to choose a saved contact from Phonebook. Press OK after done. 3. -
Page 13: Enable Talking Keypad
When in standby mode, the phone can be changed to meeting (Vibrate only) mode by pressing and holding the pound (#) key for three seconds. Repeat the step will switch the phone back to normal mode. Enable Talking Keypad 1. Press the Menu button (on keypad) 2. -
Page 14: Technical Data
4. Enter password (default 1234) 5. Press OK, then OK to confirm Please note: By performing this function, all settings will be restored to factory default. All information includes contacts will be erased. Please ensure backup all your contacts to SIM card before performing this function. - Page 15 Standby time: 160 hrs* Talk time: 240 min* *Depending on network coverage and activated applications the battery life can be reduced Bluetooth: Bluetooth® v2.1 + EDR FCC Caution § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Ope ration is subject to the condition that this device does not cause harmful interference.
- Page 16 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 17 and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 18 FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: SC318 (FCC 2AAWJSC318) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.72W/kg...
- Page 19 This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components.
- Page 20 L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage susceptible d'en compromettre fonctionnement. Contact us: Jethro Trading Ltd. Toll-Free: 1-888-509-6199 Company website: www.jethroshop.com...
- Page 21 PMN: Jethro 3G Senior Cell Phone FCC ID: 2AAWJSC318 IC: 11350A-SC318 Bluetooth DID: D034684...
