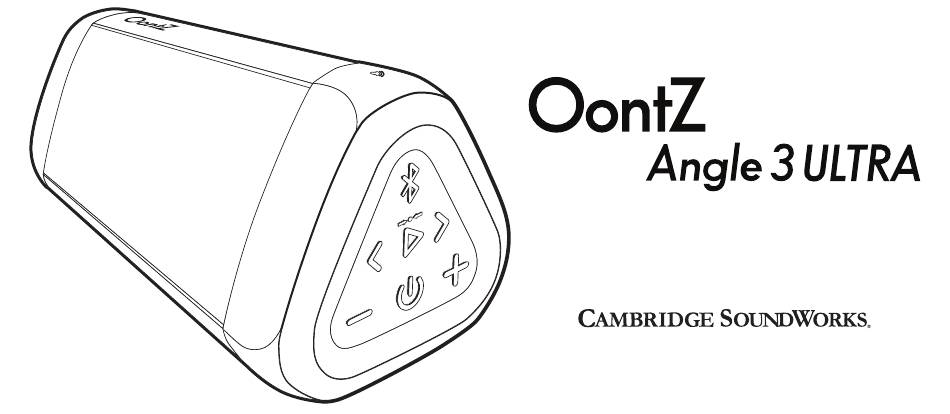

- Page 1 Quick Start Guide Portable Bluetooth Speaker Designed and Engineered By TheOontZ.com...
- Page 2 In the Package Quick Start Guide Extra Long 6 foot Micro USB Charging Cable 3 foot 3.5mm Audio Cable Note: The cables are packed below the cardboard insert in the box. Slide out the insert to locate the cables.
-
Page 3: Table Of Contents
Pair & Connect with Your Device 9 - 12 To Play with Non-Bluetooth Devices Use the 3.5mm Audio Cable OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 ULTRA Speakers Together 14 - 18 IPX6 Water Resistant Talk to Siri... -
Page 4: Buttons, Lights And Connectors
Buttons Play/Pause Bluetooth (Dual Function) Press and Release to Pause/Play Track Back Track Forward Press and Release to go to Press and Release to go the beginning of the track. to next track Press and Release twice to go to previous track Volume Down Volume Up Power... - Page 5 - Blue Light will turn to Solid Green OontZ Wireless Dual Stereo when the 3.5mm audio cable is plugged into the AUX IN Jack - With a second OontZ Angle 3 ULTRA Red Light lit when charging: speaker (sold separately) you can wirelessly connect both speakers - Slowly flashing Red...
- Page 6 Connectors Built-in Mic for Speakerphone AUX IN Jack Micro USB Charging Connector Note: The rubber flap needs to be closed Rubber Flap to keep the speaker water resistant - covers connectors - pull gently from the top to access connectors, it is a snug fit to provide water resistance Page 3...
-
Page 7: Play Horizontally Or Vertically
Play Horizontally or Vertically Play Horizontally Play Vertically Controls on side Controls on top Dual Precision Stereo Drivers Passive Bass Radiator Page 4... -
Page 8: Battery Features And Charging The Battery
- For maximum playtime, fully charge the battery. - You can play while charging. Power Saving Feature - When playing from battery power the OontZ Angle 3 ULTRA will turn off after 30 minutes of not playing audio to conserve the battery charge. * Low Charge Remaining... - Page 9 Charging the Battery - Insert the small end of the Micro USB Charging Cable into the Micro USB Charging Connector as shown. - Insert the large end of the Micro USB Charging cable into either a USB wall charger Red Light lit for a Smartphone or iPhone, or a USB port when charging: on your laptop/computer to charge the...
- Page 10 Insert the large end of the Micro USB charging cable into either a USB wall charger for a Smartphone or iPhone (a USB wall charger that is 5V 1.0A up to 5V 2.4A maximum) or a USB port on your laptop/computer to charge the OontZ Angle 3 ULTRA rechargeable battery. Page 7...
-
Page 11: Turning On And Off
The speaker is in pairing mode - Solid Blue Your device has connected with the Red Light will turn OontZ Angle 3 ULTRA and is ready to play on for 3 seconds Turn OFF Press and Hold Down the Power Button for 2 Seconds Blue Light will turn off... - Page 12 - To disconnect the current device, press and hold down the Bluetooth button for 5 seconds. - The Blue Light will begin flashing and the OontZ Angle 3 ULTRA is ready for the next device to pair and connect. *Exception: certain devices may not automatically reconnect.
-
Page 13: Pair & Connect With Your Device
- The Blue Light will turn solid blue and there will be a quiet chime a quiet chime - You can now play your audio wirelessly to your - You can now play your audio wirelessly to your OontZ Angle 3 ULTRA OontZ Angle 3 ULTRA Note: Your Smartphone or Tablet instructions may vary Important - The volume control on your device and the speaker work independently of each other. - Page 14 - Select the 'OontZ_Angle 3 Uxxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers' - Alexa will announce: "Connected to OontZ_Angle 3 Uxxx" To connect the next time, turn on the OontZ Angle 3 ULTRA and say "Alexa, connect my speaker" or "Alexa, pair" Page 11...
- Page 15 This will use up the battery charge. We recommend to: 1) Keep the OontZ Angle 3 ULTRA plugged into a USB wall charger and it will remain on and available to play from the Amazon Echo device until you manually turn the speaker power off.
-
Page 16: To Play With Non-Bluetooth Devices Use The 3.5Mm Audio Cable
- You are now ready to play. Important: The Bluetooth on the OontZ Angle 3 ULTRA is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device. -
Page 17: Oontz Wireless Dual Stereo - Connect Two Oontz Angle 3 Ultra Speakers Together
OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 ULTRA speakers together Play your music wirelessly through both speakers up to 100 feet apart Bluetooth Left Channel - Right Channel for playing music for stereo separation Audio Cable for playing the... - Page 18 Connecting two OontZ Angle 3 ULTRA Speakers together for Left Channel - Right Channel – Turn on both OontZ Angle 3 ULTRA speakers. – Pair and Connect one of the speakers with your device. When connected the Blue Light will be lit solid.
- Page 19 Two OontZ Angle 3 ULTRA Speakers connected for Left Channel - Right Channel Blue Light lit solid Blue Light OFF White Light lit solid White Light lit solid Second Speaker Play Control Speaker – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls.
- Page 20 Changing to Dual Stereo from Left Channel - Right Channel Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo. – To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 15). –...
- Page 21 Playing the audio from a video in OontZ Wireless Dual Stereo –To play the audio from a video or TV in OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your device or TV using the 3.5mm audio cable, allowing the audio and video to play in sync with each other. If the Play Control Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
-
Page 22: Ipx6 Water Resistant
IPX6 rating - The OontZ Angle 3 ULTRA can resist water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speaker. -
Page 23: Talk To Siri
Free Speakerphone and your phone. - The response from Siri will then play through the - When two speakers are paired together in OontZ Wireless Dual Stereo, OontZ Angle 3 ULTRA, and may display information on calls will come through the Play Control Speaker only. Use the Bluetooth... -
Page 24: Contacting Customer Support
Customer Support Reset Function Step 1: Remove the Micro USB charging cable If you have a question about your OontZ Angle 3 ULTRA and 3.5mm Audio cable, if connected. or experience an issue with the speaker, our Customer Support Team wants to assist you. -
Page 25: Safety And Precautions
Safety and Precautions When the OontZ Angle 3 ULTRA speaker is plugged in to a charging source with the Micro USB charging cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. - Page 26 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 OontZ Angle 3 ULTRA Carry Case Sold separately • Lightweight neoprene rubber with reinforced zipper • Includes a durable aluminum carabiner for easily attaching to backpacks, luggage, laptop bags, coolers, camera bags, purses, belts, and other clippable items Available at TheOontZ.com...
- Page 28 OontZ Wireless Dual Stereo With a second OontZ Angle 3 ULTRA speaker you can wirelessly connect both speakers together Incredible Stereo Separation Up to 100 feet apart Left Channel Right Channel Full Stereo in Separate Areas Connect with a friend's OontZ Angle 3 ULTRA...
