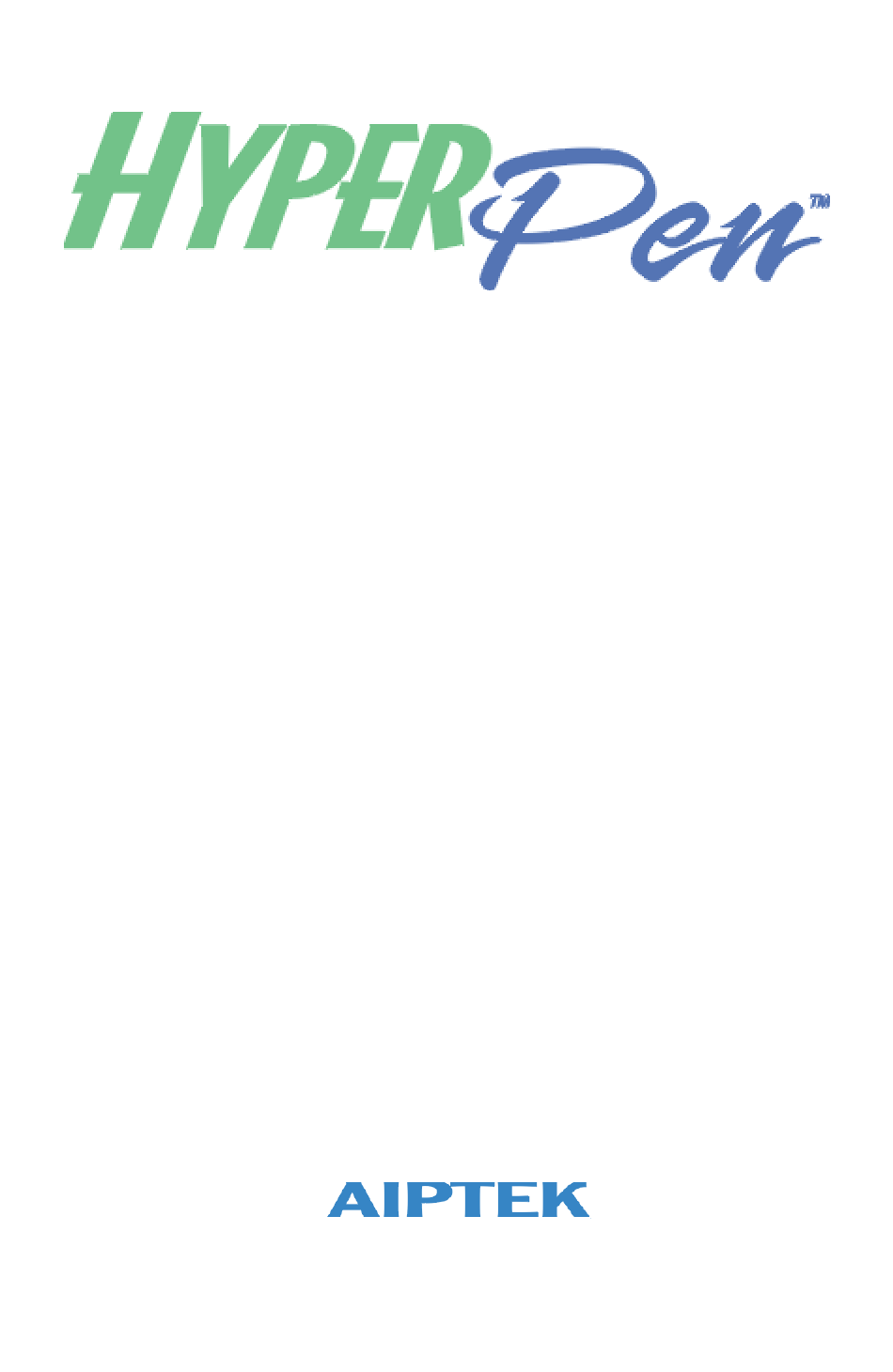

- Page 1 PC Tablet User’s Guide...
-
Page 2: Fcc Statement
FCC Statement This equipment generates and uses radio frequency energy and if not installed and used in accordance with the manufacturer’s instructions, it may cause interference to radio and television reception. This equipment has been tested and certified to comply with the limits for a Class B computing device, pursuant to sub-part J of part 15 of FCC Regulation, which are designed to provide reasonable protection against such interference in a residential installation. - Page 3 Their potential in everyday computing has not, until recently, been fully realized. With the introduction of its HyperPen series of affordable, user-friendly graphics and text tablets, Aiptek brings the power of such intuitive input devices to a much wider audience of computer users, proving that they can be successfully used for much more than CAD/CAM and painting.
-
Page 4: System Requirements
computer being able to confirm authenticity of the signature in real time. It's all possible with HyperPen! Use of graphics tablets as the input device of choice is increasing as the mainstream computing world realizes their huge potential. For example, Microsoft Windows 98 will feature a whiteboard utility to allow direct sketching and writing via tablet and pen. -
Page 5: Hardware Installation
Hardware Installation Before connecting the tablet to your computer, please take a few moments to familiarize yourself with the contents of your HyperPen package. The various components are shown below: • HyperPen stylus • HyperPen pad • RS-232 data/power connector •... - Page 6 Please carefully read the following instructions to install HyperPen on your computer. 1. Make sure your computer and all peripherals are turned off. 2. Remove the keyboard cable from the back of your computer. 3. Attach the keyboard cable into the female connector of the keyboard/power adaptor cable and then plug the male connector of the keyboard/power adaptor into the keyboard socket of your computer.
- Page 7 6. Open the HyperPen stylus with a gentle twisting motion and insert the included AAAA-type battery. 7. Power up your computer and prepare to install software drivers for your HyperPen tablet. 8. If HyperMouse option was included with your HyperPen package, you may now insert the AAA-type battery by opening the panel on the bottom of the mouse.
-
Page 8: Software Installation
Software Installation BACKUP Before starting the software installation procedure, please make a backup copy of the original diskette and use this copy to install, storing the original in a safe place.. Driver Installation 1. HyperPen is fully Plug-n-Play compliant and should therefore be detected by Windows 95 as “New Hardware Found”... - Page 9 adjustments to suit your particular writing or drawing style. 1. Back up a copy of your HyperPen Manager diskette and insert it into your floppy drive. 2. Select “Run” from the “Start” button and type A:\SETUP (or B:\SETUP). Press “Enter.” 3.
- Page 10 3. Click on the “Buttons” tab to configure pen button functions. You may also adjust pen pressure values (a higher value means higher pressure, and vice-versa). Press “Default” to return to preset values. 3. Click on the “Mouse” button if you are using HyperMouse to set up mouse button functions.
- Page 11 working area of the tablet to utilize a relatively smaller area of the screen. To allocate a certain area of your screen to be used as the effective working area of your tablet, select “Screen Ratio.” To automatically match the full working area of your tablet to your full screen, select “Full Area.”...
- Page 12 3. Click on “Settings”. 4. You can register 2 signatures if required. Click on “Registration No. 1” to register your signature. You are required to sign 3 times for registration. 5. During registration, if you are prompted “Unstable signature”, click on “Del”...
-
Page 13: Operation Environment
icon in the status bar on the right bottom of screen. How to uninstall: 1. Go to “ Control Panel” and double click on “Add/Remove Programs ”. 2. Choose “Cadix Signature Screen Saver” and click on “Add/Remove”. 3. Program is removed. Operation Environment The digitizer should operate within the following environment: 41 to 104 degrees Fahrenheit or 5 to 40 degrees Celsius... -
Page 14: Troubleshooting
Don’t use volatile/chemical liquids such as thinner or benzine to clean the tablet. Don’t store or operate the tablet in extremely hot or cold environment or where the humidity is beyond the specified range. Don’t place hot items on the surface of tablet. Trouble Shooting Tablet LED light is not ON Make sure the power jack of the Keyboard/Power adaptor is plugged... - Page 15 Specifications (3000 Series) Active area (W x D) 2.75 x 2.0 in (69.85 x 50.8 mm) Physical size (W x D x H) 121.23 x 124.88x 10.5 mm Power consumption 0.6 watts Power supply Keyboard power (DC 5 +/- 5% V regulated) Weight 120 g (0.26 lb) Resolution...
