Summary of Contents for DARAY X350

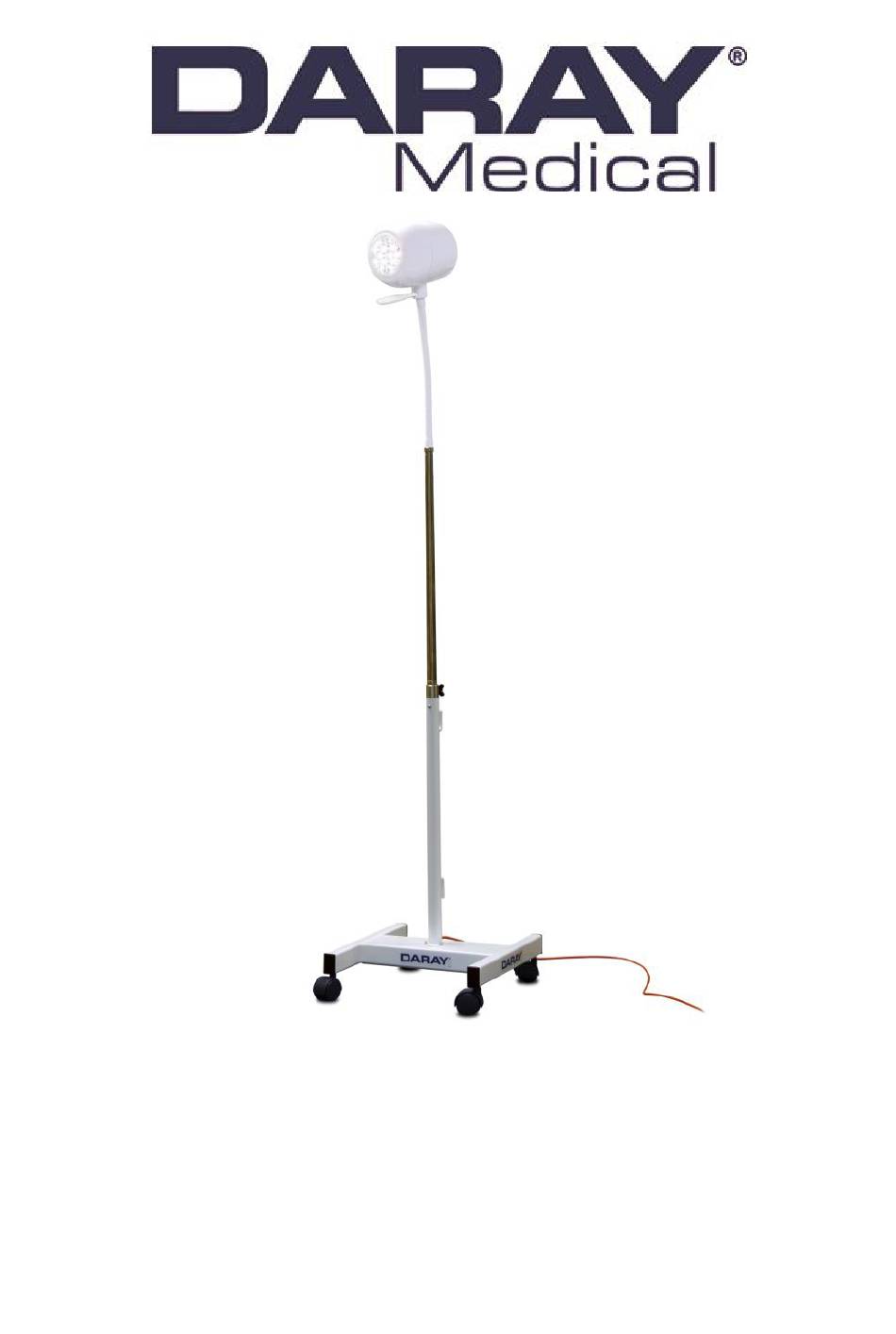

- Page 1 X350 LED Examination Light Operating & Installation Manual QAM.X350.0918.12...
- Page 2 Page 1 of 17...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 1.1 Supported Lights ............4 2. Technical Specifications ..........5 2.1 Technical Drawing ............. 6 2.2 Pre-Installation Responsibilities and component packing list ... 7 2.3 Pre-Start Checks ............7 3. Operation ..............8 3.1 Turning the light ON/OFF and adjusting the intensity ... -
Page 4: Introduction
DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY. -
Page 5: Supported Lights
This product was designed & manufactured in Great Britain by: Daray Ltd. Edison House Robian Way Swadlincote Derbyshire DE11 9DH 1.1 Supported Lights The Following Models are supported in this Manual X350LM X350 LED Mobile Examination Light Page 4 of 17... -
Page 6: Technical Specifications
2. Technical Specifications Light Source Light Intensity (Lux) @ 0.5m 64,000 Lux ±5% Light Intensity (Lux) @ 0.75m 30,000 Lux ±5% Light Intensity (Lux) @ 1.0m 17,000 Lux ±5% Light Intensity Adjustment Range 10% - 100% Colour Temperature (Kelvin) 4,300K ±500 Colour Rendering Index (CRI) Colour Rendering (R9) @ 0.5m: 90mm... -
Page 7: Technical Drawing
2.1 Technical Drawing Page 6 of 17... -
Page 8: Pre-Installation Responsibilities And Component Packing List
All fixings between DARAY lights and the building super-structure must be approved by either the chief project engineer or an appropriate and competent structural assessor. The components supplied by DARAY for fitting / installation should be the following items in the specified quantities. X350LM Qty. -
Page 9: Operation
3. Operation IEC mains connector Safety retainer Illuminated Position the light by moving it using the handle provided on the main stand. power switch Note: The light must not be lifted using the light-head handle or gooseneck. To position the light, hold the upstand and move the light-head using the handle. -
Page 10: Correct Usage Of The Light
Locking screw The telescopic extension is released for raising and lowering, and locked by the locking screw at the rear of the up-stand. Use the light-head handle to position the light-patch to where it is required. In the interests of cross-infection control, avoid touching any other part of the light. - Page 11 This is the correct way to bend the neck, ensure you curve it through its entire range. This is the incorrect way to bend the neck. Notice the sharp kink in the neck – this will ultimately affect future flexibility.
-
Page 12: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 13: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 12 of 17... -
Page 14: Fuse Replacement
4.4 Fuse Replacement CAUTION: Fuses normally blow for a reason. Investigate likely faults before changing fuses. CAUTION: Isolate the unit from the mains before accessing the fuses. Both the live and neutral mains inputs are fused. The fuses are contained in a holder which is part of the IEC inlet mounted on the rear panel of the mobile base. - Page 15 5. Spare Parts CAUTION: Use only genuine ‘DARAY’ replacement lamps as other types may seriously impair the optical performance of the product. ITEM NO PART NAME TYPE PART NO Fuse 1A 20mm D10873 Microfibre cloth 5 pack DRK4080 Rocker Switch...
-
Page 16: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 17: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 18 Service Notes Page 17 of 17...
- Page 19 Page 18 of 17...
- Page 20 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 +44 (0)333 321 0973 sales@daray.co.uk www.daray.co.uk...
