Summary of Contents for Maxi Comfort Cloud
- Page 1 U S E R M A N U A L PR OD U CT COD E RR019 5 6...
-
Page 2: Table Of Contents
CONTENTS SAFETY GUIDELINES GENERAL GUIDELINES MODIFICATIONS SPECIFICATIONS HAZARDS OPERATION STORAGE DELIVERY TRANSPORT COMPONENTS ASSEMBLY OPERATION TROUBLESHOOTING CARE & MAINTENANCE SPECIFICATIONS WARRANTY PAGE 2... -
Page 3: Safety Guidelines

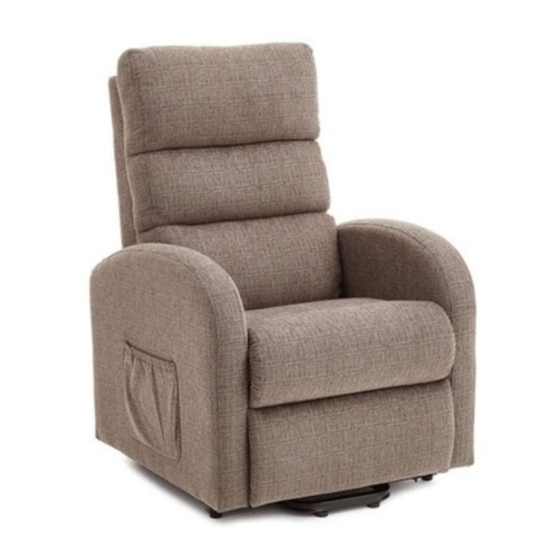

SAFETY GUIDELINES Congratulations on purchasing your MaxiComfort Rise Recliner Chair. The product you have purchased combines state-of-the-art components with safety, comfort and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities. Understanding how to safely operate and care for this product should bring you years of trouble-free operation and service. -
Page 4: General Guidelines
GENERAL GUIDELINES Your lift chair is a state-of-the-art life-enhancement device designed to increase mobility. Please be aware that the final selection and purchasing decision regarding the type of lift chair to be used is the responsibility of you, the lift chair user, if capable of making such a decision, and/or your healthcare professional (i.e., medical doctor, allied health professional, therapist, etc.). -
Page 5: Operation
WARNING! Do not place objects or appendages in the path of moving parts. STORAGE AND OPERATION TEMPERATURES Transportation or storage: -75°C/-104°F to 70°C/158°F Operation: 10°C/50°F to 40°C/104°F ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI) Laboratory tests have shown that electromagnetic and radio frequency waves can have an adverse effect on the performance of electrically-powered devices, such as lift chairs. -
Page 6: Delivery
Be aware that mobile phones, two-way radios, laptops and other types of radio transmitters may cause unintended movement of your electrically-powered device due to EMI. Exercise caution when using any of these items while operating your lift chair. The addition of accessories or components to the lift chair can increase the susceptibility of the chair to EMI. -
Page 7: Emi
COMPONENTS This section describes the features of your lift chair. Carefully review the function and location of each item described and note that the illustrations and option locations shown in this manual may not reflect the type of lift chair that you own. ELECTRICAL COMPONENTS Your MaxiComfort Lift Chair is equipped with a low voltage DC motor system that reduces the standard household alternating current of 90V AC - 264V AC to direct... -
Page 8: Assembly
ASSEMBLY Your lift chair will require some assembly before initial use. LIFT CHAIR SET-UP The chair is packed in two pieces consisting of the back and the base to make transport and delivery easier. Assemble the chair as per the assemble instructions below. - Page 9 2. The rear of the base of the chair has a vertical flat bar on each side as per above image (B). 3. To assemble the chair simply lower the back receiver brackets onto the vertical flat bars until they are fully seated on both sides. NOTE: Both back receivers need to be lowered onto the flat bars at the same time and evenly to prevent binding.
- Page 10 FOLLOW THESE STEPS TO POSITION THE LIFT CHAIR IN A SAFE MANNER 1. The back of the lift chair should be positioned with sufficient clearance to avoid any obstructions, particularly behind the chair after reclining. 2. To allow for unimpeded reclining make sure there is a minimum of 65cm behind the chair 3.
-
Page 11: Operation
OPERATION SAFE OPERATING PRECAUTIONS There are certain precautions that should be taken during the operation of your lift chair. Read and follow these precautions carefully in order to ensure safe lift chair operation and to prevent injury and/or product damage. •... - Page 12 HAND CONTROL OPERATION The hand control is equipped with switches that control the movement of the chair-back, chair base and footrest Do not lean on or apply downward force to the chair-back when the lift chair is in the fully reclined position. Doing so could cause the lift chair to tip, resulting in personal injury and/or product damage.
- Page 13 FOLLOW THESE STEPS TO SIT IN YOUR LIFT CHAIR 1. Ensure the chair back is UP and footrest is DOWN engaging the Chair Back UP and Footrest DOWN positions. 2. Engage and hold the up/down switch in the UP position to raise your lift chair to the standing position.
-
Page 14: Troubleshooting
TROUBLESHOOTING Your MaxiComfort Lift Chair is a state-of-the-art product designed to enhance your mobility. Your lift chair should bring you years of trouble-free service, however, it may require occasional troubleshooting. The following troubleshooting tips and FAQs should summarise what you need to know about your lift chair. - Page 15 What if my lift chair stops during a lifting cycle? • Your lift chair is equipped with an internal thermal shut-off switch located inside the external transformer that prevents the motor control box from overheating. If the thermal shut-off activates, allow the lift chair to remain in a stationary position for 10 minutes to allow the motor to cool, then resume normal operation.
-
Page 16: Care & Maintenance
CARE & MAINTENANCE Your MaxiComfort Lift Chair will require routine maintenance checks. You can perform some of these checks, but others may require assistance from an authorised MaxiComfort Dealer. By following the maintenance checks in this section as scheduled, you can help ensure your lift chair gives you years of trouble-free operation. - Page 17 ELECTRONICS CARE • Inspect all wiring harnesses to make sure they are not damaged or frayed. • If damage is present, unplug the lift chair and contact your authorised MaxiComfort Dealer for service. • Keep all electronics free from moisture and temperature extremes. •...
-
Page 18: Specifications
SPECIFICATIONS MaxiComfort Cloud Factory Model Name RR01956 Factory Model Number inch Seat Width 19.5 Seat Depth 19.89 43.5 16.97 Seat Height 28.08 Chair Width 26.91 Backrest Height Chair Height(Sitting) 41.73 56.16 Chair Height(Lifted) Armrest Height(Sitting) 23.79 168.5 65.72 Chair Length(Reclined) Footrest Maximum Height 22.23... -
Page 19: Warranty
WARRANTY QUALITY / WARRANTY DECLARATION Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims MaxiComfort will, at their discretion, replace / repair / refund items mutually agreed to be defective. The lift chair’s warranty is as follows: •...
