Q ui c k Sta r t G u id e
6-Port Wireless Access Controller
EWS4606

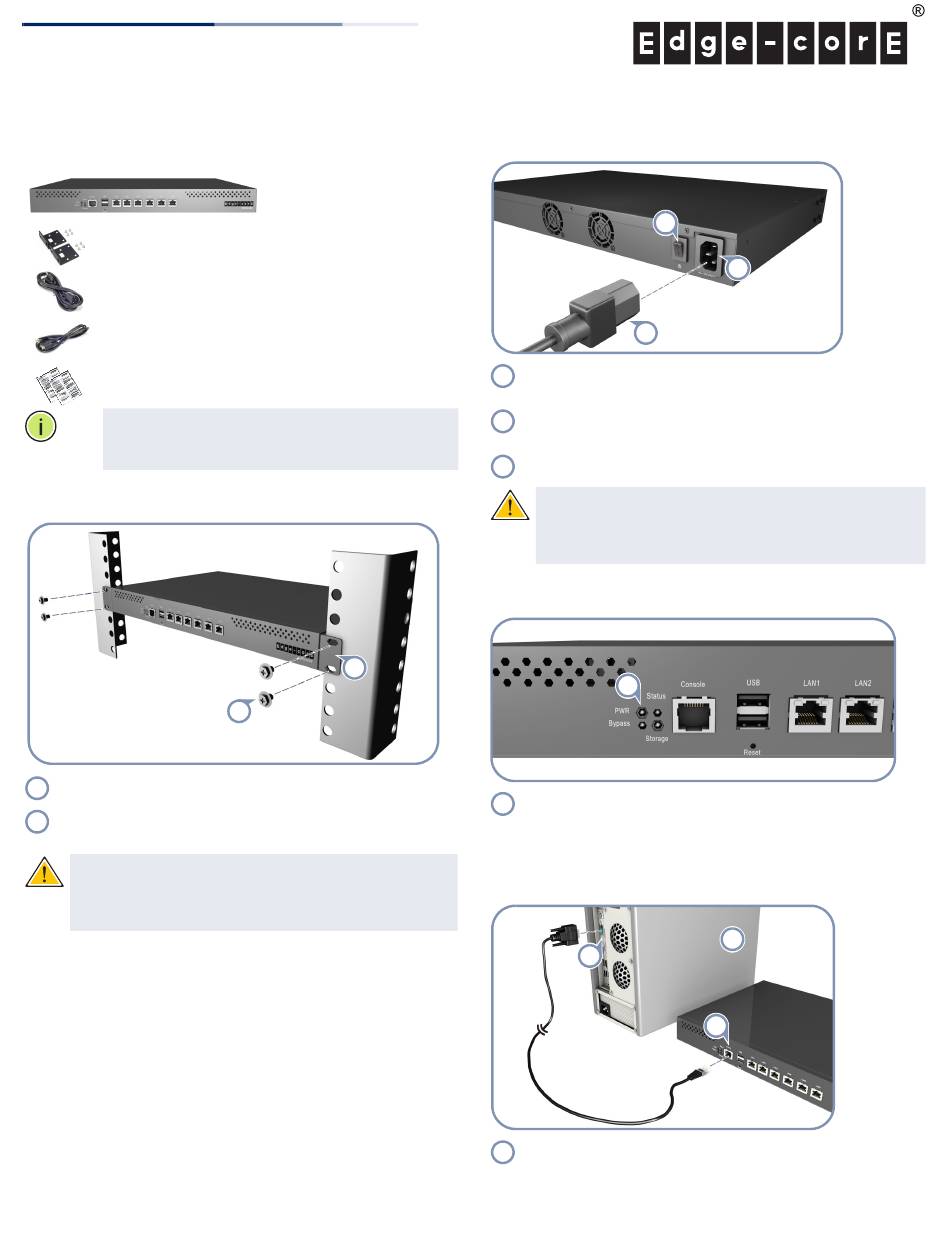

1. Unpack the Controller and Check Contents
Rack Mounting Kit—contains two brackets and eight
screws
Power cord—either Japan, US, Continental Europe
or UK
Console cable—RJ-45 to DB-9
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
For safety and regulatory information, refer to
the Safety and Regulatory Information document
included with the wireless controller.
2. Mount the Wireless Controller
1 Attach the brackets to the wireless controller.
2 Use the screws supplied with the rack to secure the wireless
controller in the rack.
Caution:
Installing the wireless controller in a rack requires
two people. One person should position the wireless
controller in the rack, while the other secures it using the
rack screws.
www.edge-core.com
EWS4606
Wireless Access Controller
1
2
3. Connect Power
1 Plug the power cord into a 100-240 VAC, 50-60 Hz AC power
source.
2 Insert the other end of the power cord directly into the AC
input socket on the back of the wireless controller.
3
Turn the wireless controller power switch to on.
Caution:
Use the AC power cord supplied with the wireless
controller. For international users that may need to change
the AC power cord, you must use a cord set that has been
approved for the socket type in your country.
4. Verify Wireless Controller Operation
1
1 Verify basic wireless controller operation by checking the
system LEDs. When operating normally, the PWR LED should
be on green.
5. Make Initial Configuration Changes
2
1 Connect a PC to the wireless controller console port using
the included console cable.
– 1 –
3
2
1
3
1
