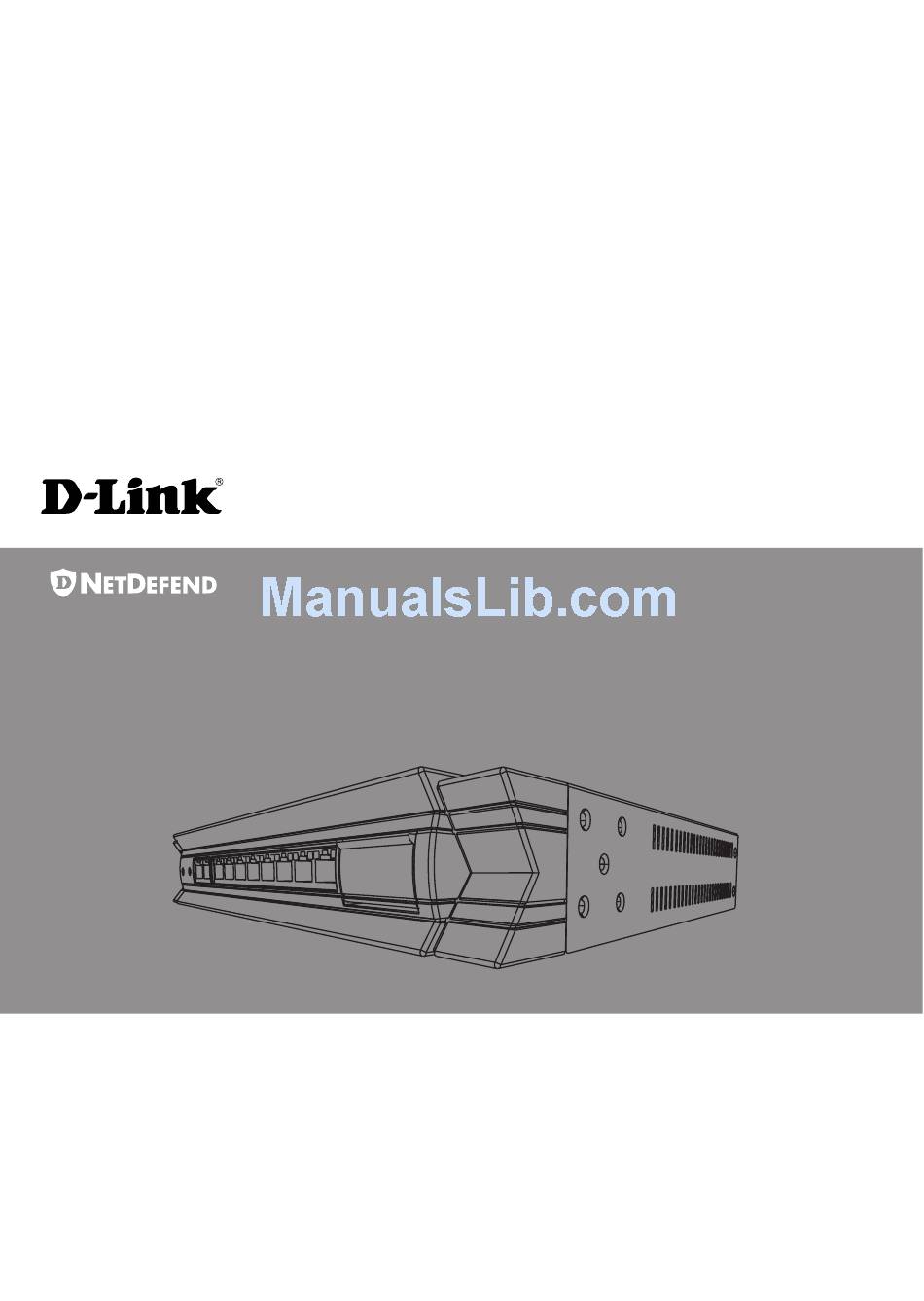

Building Networks for Peopl e
Network
Security Firewall
This Quick Guide will guide you through the installation Process. You are
only moments away from using your new D-Link Network Security Product
DFL-800

Advertisement

Table of Contents
loading

Related Manuals for D-Link DFL-800

Summary of Contents for D-Link DFL-800

  • Page 1 Building Networks for Peopl e Network Security Firewall This Quick Guide will guide you through the installation Process. You are only moments away from using your new D-Link Network Security Product DFL-800...

  • Page 2: Table Of Contents

    DFL-800 Quick Installation Guide 1.Before You Begin 1.1 Check Your Package Contents...1 2.Indentifying Components 2.1 Front View...2 2.2 LED Indicators...3 2.3 Default Interface Attribute Definition...3 3.Connecting the DFL-800 3.1 Setting up Firewall to your Network...4 4.Configure DFL-800 4.1 Configure your Computer’s IP ...5 4.2 Using the Setup Wizard...6...

  • Page 3: Before You Begin

    If any of these items is found damaged or missing in your package, report it to your reseller immediately for replacement. One (1) DFL-800 NetDefend™ Network Security Firewall One (1) Power Cord One (1) 5V DC Power Adapter...

  • Page 4: Front View

    Identifying Components The following illustrates the front panel of the DFL-800 and explains the front panel’s key components: 2.1 Front View Power LED System LED 3. WAN Ports 4. DMZ Port 5. LAN Ports 6. Console Port Note: None of the WAN1 and WAN2 interfaces support Auto MDI/MDI-X (Automatic cable detection for Straight-through and Crossover function.

  • Page 5: Led Indicators

    DFL-800 Quick Installation Guide 2.2 LED Indicators Power System Phone Jack LED light (right) Phone Jack LED light (left) 2.3 Default Interface Attribute definition Wording on Default name Front plate WAN1 WAN2 Ports: 1~7 Note: For security reason, default only allow LAN interface (192.168.1.1) that can login into firewall GUI from Web browser.

  • Page 6: Connecting The Dfl-800

    3.1 Connecting Firewall to Your Network A. First, connect the power cord to the receptor at the back panel of the DFL-800 and then plug the other end of the power cord to a wall outlet or power strip. Then powered on the DFL-800 using the on/off switch.

  • Page 7: Configure Dfl-800

    Configure DFL-800 4.1 Configure Your Computer’s IP Address Make sure that the network adapter in your computer is configured to use a static IP address with 192.168.1.1 as default gateway and 255.255.255.0 as netmask. Instructions on how to configure the network adapter can be found in the appendix.

  • Page 8: Using The Setup Wizard

    IP Address in the web browser, instead of the default IP Address shown.) Log on to the DFL-800 web interface. To start using the DFL-800 web interface you need to log on using the default username and password. Type the default...
  • Page 9 DFL-800 Quick Installation Guide Step1 - Welcome to the DFL-800 setup wizard! This wizard will guide you through the setup of your DFL-800 Step2 - Set up fi rewall administrator password First Enter the username that you want to use for the admin account.
  • Page 10 Step 3 - Set up time and date Click Set time and date button for setting device Select the appropriate date Enter the appropriate time DFL-800 Quick Installation Guide Click Click Next...
  • Page 11 DFL-800 Quick Installation Guide Step 4 - Set up timezone Select the appropriate timezone. Enter the appropriate dayligt saving time settings. Step 5 - Select WAN interface Select the WAN interface that you want to use. Next Click Click Next...
  • Page 12 If you selected Static IP you have to fi ll out the IP address information provided to you by your ISP. You will need to complete all the required fi elds except for Secondary DNS Server. DFL-800 Quick Installation Guide Click Next...
  • Page 13 DFL-800 Quick Installation Guide Step 7.2 - WAN Interface Type is PPPoE If you selected PPPoE (Point-to-Point Protocol over Ethernet) you will have to fi ll out the user name and password provided to you by your ISP. The PPPoE Service Name fi...
  • Page 14 This range is entered in the format “Start IP - Stop IP” i.e. 192.168.0.100 - 192.168.0.200. If you don’t want to use the built-in DHCP Server or confi gure it later, choose Disable DHCP Server. DFL-800 Quick Installation Guide Click Next Click Next...
  • Page 15 DFL-800 Quick Installation Guide Step 9 - Confi gure helper servers NTP Servers If enabled, specify which NTP Servers that should be used to syncronize the fi rewall time Syslog Servers If enabled, specify where the fi rewall should log, you can specify up...

  • Page 16: Appendix

    Appendix To connect to the DFL-800 Network Security Firewall, make sure the network adapter in your computer is confi gured properly. Here is how to confi gure the network adapter manually to the correct IP-address. 5.1 How to configure Static IP Manually on Microsoft Windows XP Go to Start >...

  • Page 17: How To Configure Static Ip Manually On Apple Mac Os X

    DFL-800 Quick Installation Guide Select Use the following IP address Set IP address to 192.168.1.30, Subnet mask to 255.255.255.0 and Default gateway to 192.168.1.1 Click Note: Except for 192.168.1.1, you could set your PC with any IP addresses that same as the 192.168.0.0/ 255.255.255.0 subnet.
  • Page 18 Select Built-in Ethernet in the show pull down menu Select Manually in the Confi gure pull down menu Set IP Address to 192.168.1.30, Subnet Mask to 255.255.255.0 and Router to 192.168.1.1. Click on Apply Now DFL-800 Quick Installation Guide...

  • Page 19: Warranty

    WARRANTY Warranty FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 20 DFL-800 Quick Installation Guide Attenzione! Il presente prodotto appartiene alla classe B. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati. VCCI Warning BSMI Warning 警告使用表 這是乙類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這...
