Operating Instructions AND PARTS BREAKDOWN
DO NOT OVERLOAD. OVERLOADING CAN
CAUSE DAMAGE TO, OR FAILURE OF
THE STAND.
THIS STAND IS DESIGNED FOR USE ONLY
ON HARD LEVEL SURFACES CAPABLE OF
SUPPORTING THE LOAD. USE ON OTHER
THAN HARD LEVEL SURFACES CAN
RESULT IN STAND INSTABILITY AND
TIPPING OF LOAD.
LOCK THE MOUNTING-PLATE ROTATING
MECHANISM BEFORE APPLYING A LOAD.
RELEASE ROTATIONAL LOCKING DEVICE
SLOWLY AND CAREFULLY.
ALWAYS USE HIGH STRENGTH SAE GRADE
8 BOLTS FOR ENGINE MOUNTING BOLTS.
MAKE SURE WIDEST SET OF MOUNTING
HEAD FINGERS ARE NEAREST THE
GROUND WHEN MOUNTING AN ENGINE
TO THE STAND.
ALWAYS BE SURE THAT THE LOAD IS
CENTERED AND SECURED TO THE
MOUNTING PLATE. OFF-CENTER LOADS
MAY MAKE THE LOAD AND HANDLE
ROTATE IN EITHER DIRECTION WHEN
THE ROTATIONAL LOCKING DEVICE IS
RELEASED.
NEVER LOOSEN MOUNTING BOLTS
UNLESS ENGINE IS SUPPORTED BY A
CRANE OR HOIST.
DO NOT USE STAND TO DOLLY OR
TRANSPORT ENGINES.
NO ALTERATIONS TO THE STAND OR
ADAPTERS SHALL BE MADE.
DO NOT ROTATE MOTOR UNLESS REAR
LEGS ARE SECURED FROM TIPPING.
READ, STUDY AND UNDERSTAND ALL
INSTRUCTIONS BEFORE OPERATING.
FAILURE TO HEED THESE WARNINGS MAY
RESULT IN LOSS OF LOAD, DAMAGE TO
STANDS, AND/OR FAILURE RESULTING IN
PROPERTY DAMAGE, PERSONAL OR
FATAL INJURY.
8750
OWNER/USER RESPONSIBILITY
The owner and/or user must have a thorough understanding of the
manufacturer's operating instructions and warnings before using this
engine stand. Personnel involved in the use and operation of
equipment shall be careful, competent, trained, and qualified in the
safe operation of the equipment and its proper use when servicing
motor vehicles and their components. Warning information should be
emphasized and understood. If the operator is not fluent in English,
the manufacturer's instructions and warnings shall be read to and
discussed with the operator in the operator's native language by the
purchaser/owner, making sure that the operator comprehends
its contents.
Owner and/or user must study and maintain for future reference
the manufacturer's instructions. Owner and/or user is responsible
for keeping all warning labels and instruction manuals legible
and intact. Replacement labels and literature are available from
the manufacturer.
MAINTENANCE
Apply motor oil to support base wheels and casters. Apply chassis
grease to mounting head hub. Rotate head to distribute grease.
DO NOT CRAWL UNDER ENGINE OR PLACE
ANY PART OF YOUR BODY UNDER ENGINE AT
ANY TIME DURING MOUNTING OF ENGINE,
USE OF STAND, OR REMOVAL OF ENGINE.
Refer to Engine Service Manual
for Correct Lifting Points,
Mounting Points and Mounting
Bolts! Mounting bolts should
be torqued at appropriate
amount to maintain load.

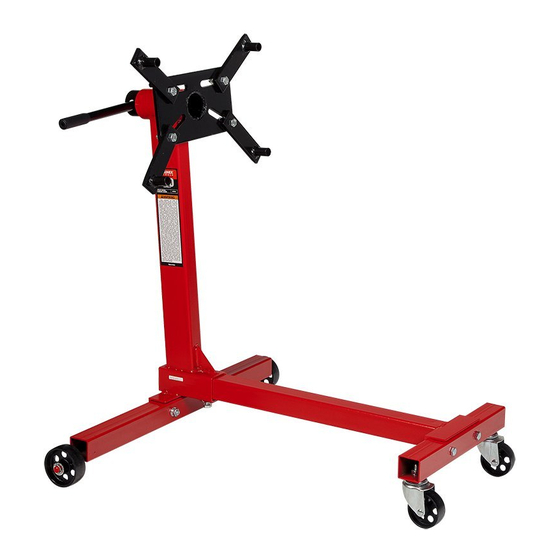

MODEL #8750
750 Lb. Capacity Engine Stand
Rev. 4/21/03
