Hedler Profilux LED 1400 Operation Manual

Operation MANUAL
< 5061 >

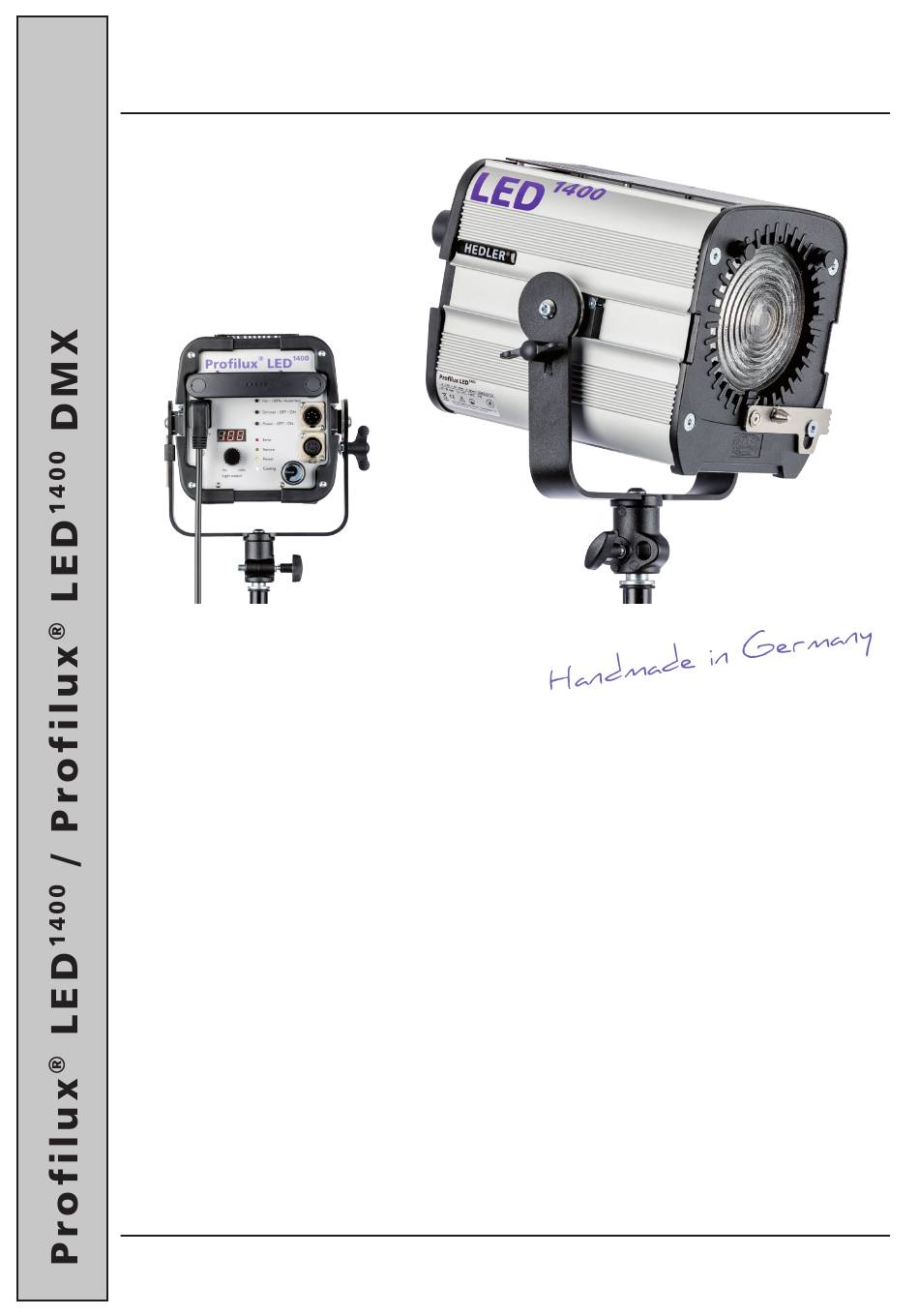

HEDLER Profilux ® LED 1400
HEDLER Profilux LED and HEDLER Profilux
® 1400
Please, read the following technical information and the HEDLER safety
instructions carefully before using the light unit.

TECHNICAL DESCRIPTION

Light units of the HEDLER Profilux
tested individually for function and quality. The focusable daylight HEDLER Profilux
LED Dmx light unit is provided with an integrated U-bracket and a friction brake and a 5/8" Quick-Lock light stand attachment. After
1400
loosening the hex key screws by approx. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity adjustment and it is
turnable for right and left hand use.
The light units of the HEDLER Profilux
50/ 60 Hz and are equipped with a LED Softstart feature. They use one 185 W highpower single cell LED and generate a flicker-free light with
approx. 5600 K and a CRI > 95. They have an extremely quiet cooling. It can be used in automatic mode or can be switched manually to 100%.
Besides they are equipped with a special active LED fan cooling and an integrated safety switch-off.
At the front side the aluminium housing holds a Fresnel lens and the QuickFit adapter for a quick and easy compatibility of all HEDLER
lioghtformers. Interchangeable reflectors with bayonet ring can be attached in the following way: Interchangeable reflectors with bayonet ring
can be attached in the following way: place the rim of the ring into the guide grooves of the upper studs and the round opening over the
coneshaped bolt, and lock it by a turn to the left. To attach the rotatable 4-Leaf barndoors or a MaxiSoft folding reflector, place the rim of the ring
into the guide grooves of the upper studs, and then push the complete reflector towards the QuickFit´s cone-shaped bolt until the ring locks in
the bolt´s groove. Detach the reflector by lifting the QuickFit´s handle, moving the lower side of the reflector away from the light unit´s housing,
and then lifting the reflector´s ring out of the guide grooves of the upper studs.
The focusing option of the light units HEDLER Profilux
up to flood light characteristic. Simply turn the focusing knob located at the back of the housing and the size of the light beams diameter can be
adjusted precisely to your lighting needs or ideas - intuitively.
H E D L E R S y s t e m l i c h t G m b H
Te l e f o n + 4 9 - ( 0 ) 6 4 8 2 9 1 8 1 0 0
DMX
LED1400 DMX operation manual.
®
LED range are designed for professional use, they are assembled by applying precision methods and
®
LED range are designed for AC use from 110 - 230 V (with automatic mains voltage recognition) and
®
LED1400 and HEDLER Profilux
®
H e e r s t r a s s e 1 1 2
Te l e f a x + 4 9 - ( 0 ) 6 4 8 2 9 1 8 1 1 1
HEDLER
S y s t e m l i c h t
HEDLER Profilux
LED light unit as well as the daylight HEDLER Profilux
® 1400
LED DMX allows to adjust the light beam from spot
® 1400
D - 6 5 5 9 4 R u n k e l / L a h n
e M a i l i n f o @ h e d l e r. c o m
®
< 5060 >
LED
® 1400
®
w w w . h e d l e r. c o m
