TM

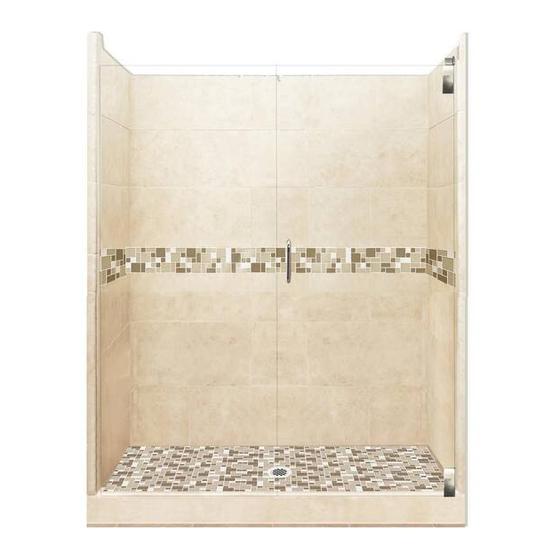

SINGLE ALCOVE - HSF
Single Threshold Shower System Installation Guide for Liner Style & Accent Liner Style Showers
Congratulations on the purchase of your new shower system.
This guide will give you the instructions on the installation of your new shower.
Natural Travertine Stone Appearance
All of our stone products are custom made and hand-crafted to look and feel like authentic
travertine. As you may know, travertine is a form of limestone that has been under pressure for
thousands of years. The product of long-ago hot and cold springs and waterfalls, travertine is a
beautifully banded and colored stone with a unique character. Among its most appealing
characteristics are the interesting craters and depressions, created by streams of water that
flowed through the stone.We have taken great care in reproducing the appearance of genuine
travertine stone, giving you a beautiful and authentic shower.
Installation time may vary depending on your experience, complexity of shower,
and "Pre Installation Preparation Work" which may include: plumbing relocation,
drain location and bathroom demolition.
Prior to demolition, scheduling a contractor or building your shower, double check that you
have all the parts from the factory. Some applications may require a licensed plumber or
contractor. Do not use any product spec sheets to begin installation before receiving product.
These spec sheets are for reference only. Use actual product measurements only.
The diagrams throughout this guide illustrate a 36" x 36" shower. Depending on the size of the
shower purchased, actual parts may vary in size from the diagrams shown.
Our goal is to help you achieve a quick and successful shower installation.
See the clock in each section for estimated installation time.
Missing or damaged hardware and tiles should be reported within 24 hours
of receiving this shipment - If you need assistance call 1.800.454.2284,
7:15 am - 4:00 pm PST, Monday thru Friday.
G_00827-HSF-9.25.14 Rev B
Advertisement
Related Manuals for American Bath Factory Sistine Stone Single Alcove-Hsf
Summary of Contents for American Bath Factory Sistine Stone Single Alcove-Hsf
- Page 1 SINGLE ALCOVE - HSF Single Threshold Shower System Installation Guide for Liner Style & Accent Liner Style Showers Congratulations on the purchase of your new shower system. This guide will give you the instructions on the installation of your new shower. Natural Travertine Stone Appearance All of our stone products are custom made and hand-crafted to look and feel like authentic travertine.
- Page 2 TOOLS AND SUPPLIES YOU WILL NEED TO INSTALL YOUR SHOWER PENCIL & MARKER SPONGE 60 GRIT SANDPAPER HAMMER GROUT FLOAT & BUCKET CLEAN DROP CLOTH DRILL WITH 3/16” & 5/8” DRILL BITS 1/8” PLASTIC TILE SPACERS PLASTIC SHEETING LEVEL SHEET ROCK SCREWS 3”...
-
Page 3: Optional Items
OPTIONAL ITEMS FAUCETS SHAMPOO BOX SHOWER BENCH TIME REQUIRED PRE-INSTALLATION TEAR DOWN 8-16 HRS This shower system is designed to be installed on a bare floor. It is necessary for any existing shower to be completely removed. Tear out and remove all old material to expose the 2 x 4 wall studs. Clean up the shower area, removing all dust and old material from the area. TIME REQUIRED DRY-FITTING THE PAN ½... - Page 4 TIME REQUIRED 2 x 4 STUDS ALIGNMENT & POSITIONING ½ to 1 HR Using the pan and 1B and 2B wall panels, you will be able to check to make sure your 2 x 4 studs are in the needed position and supported adequately. You will see in (diagram 2) extra 2 x 4 studs are added to the door and glass side thresholds for extra strength.
- Page 5 TIME REQUIRED SETTING PAN ½ HR High quality thinset may be used on uneven floors Recommended silicone adhesive on page 7 1. Apply adhesive to floor 2. Carefully lift the shower pan and set into place. Make sure the ABS pipe is still centered. 3.
- Page 6 TIME REQUIRED SIDE THRESHOLD PLUMB LINE ½ HR To help with the wall installation, use a level and draw a plumb line from Plumb Line the inside of the floor threshold up to the top of the shower. Do this on both sides.
- Page 7 Preliminary Information for Wall Installation SILICONE RECOMMENDATIONS We recommend using GE Silicone II Window and Door 100% Silicone throughout this installation as well as for your wall panel silicone. During our tests we have found that using this silicone gives the best results. Use this silicone whenever the installation guide refers to the use of “silicone”. Depending on the size and threshold type of your shower, you will need from 10 - 20, 9.8 oz.
- Page 8 TIME REQUIRED WALL PANEL/LINER INSTALLATION (continued) 3-4 HR C - Installing Panels 9. Sand the backside surface of the wall panels with 60 grit sandpaper. This will increase the bond to the silicone. Remove all dust and dirt with a clean dry cloth. 10.
- Page 9 TIME REQUIRED OPTIONAL SHAMPOO SHELF INSTALLATION 1/2 - 1 HR 1. The Shampoo Shelf was designed to match your tile size. 4. On the 2 tiles the Shampoo Shelf will be replacing, mark 1” (2) 12” x 12” tiles, the cut-out hole size is 10 x 22”. from the outside of the grout line, the cut-out area will be 10”...
- Page 10 C - Door/Side Glass Installation 1. You need to dry-fit the door to check for alignment. Install the door with a 1/2” gap from the pan threshold and bottom of the door, the front glass panel will be flush and matches the door in height.
- Page 11 GROUT Your American Bath Factory shower has a non-porous tile surface, which makes it easy to clean. Grout used must contain an ACRYLIC ADDITIVE to ensure proper bonding to the tiles. 1. Linen Tile & Grout Caulking is available at www.americanbathfactory.com. For Natural Sistine Stone use Snow White Product No. 15302, for Medium Sistine Stone use Linen Product No.
- Page 12 NOTES 13395 Estelle Street, Corona, California 92879 Phone 800.454.2284 Fax 951.734.1480 Visit us at www.americanbathfactory.com...
