- Page 1 MP9210 13.56 MHz Proximity Reader Owner’s Manual...
- Page 3 About SAMSys SAMSys is the world leader in the design and supply of radio frequency identification (RFID) hardware solutions for high volume pallet and reusable container tracking applications in global logistics management, materials handling, and supply chain industries. SAMSys is a public company listed on the Canadian Venture Exchange under the symbol SMY.
- Page 4 The authority to operate this product is conditioned by the requirements that no modifications be made to the equipment unless the changes or modifications are expressly approved by SAMSys Technologies. Trademarks SAMSys is a trademark of SAMSys Technologies, Inc. ® HyperTerminal is a registered trademark of Hilgraeve, Inc.
-
Page 5: Table Of Contents
Unpacking the Reader ..... . . 2 About the MP9210 ......3 Features . - Page 6 Reader and Accessories ..... . 2 SAMSys Reader Network ....4 Reader Board and Enclosure .
-
Page 7: Introduction
Introduction This chapter provides a general description of the MP9210 13.56 MHz reader. Topics discussed in this chapter include the following: • Unpacking the Reader • About the MP9210 • Features • Applications • Physical Description... -
Page 8: Unpacking The Reader
Straight Female Barrel 5.5 x 2.1 x 12 mm with center positive. The North American model of the MP9210 power supply is a custom made power supply manufactured by GlobTek, Inc. (Part number WR92E1250CS2-Y). GlobTek will provide the same power supply with international plug configurations upon request. -
Page 9: About The Mp9210
About the MP9210 The MP9210 is one of the most advanced 13.56 MHz proximity readers in the industry. This multi-protocol device supports many of today’s most popular RFID tags including: • ISO 15693 • Philips I-code • TI Tag-It The MP9210 recognizes multiple protocols simultaneously during operation. -
Page 10: Applications
Applications The MP9210 can be used in a stand-alone type operation, where the application is built into the reader. The reader can also be used in a network of SAMSys readers connected to a concentrator for warehouse tracking or similar applications. -
Page 11: Physical Description

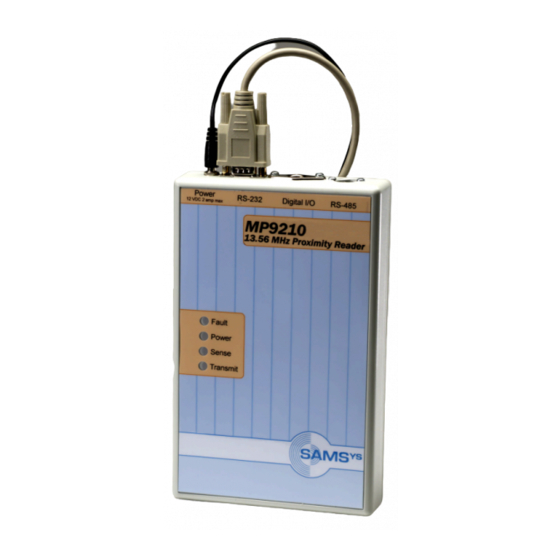

• Product identification and conveyor sorting Physical Description The MP9210 consists of an RF reader board housed in an ABS plastic case. The board contains the microprocessor, RF circuits, and the digital signal processing circuits. The integral antenna is embedded in the board. -
Page 12: Reader Led Indicators
If a sealed or explosion proof reader is required for wet or hazardous environments, contact your SAMSys representative. The reader board contains four LED indicators to provide the operational status of the reader. The LEDs are visible on the front panel of the reader. -
Page 13: Reader End-Panel Connectors
Introduction The reader also has four power and communication interface connectors on the end panel. Figure 5: Reader End-Panel Connectors... - Page 14 Installation This chapter provides information for installing the MP9210. Topics discussed in this chapter include the following: • Reader Installation • RS-232 Communication Setup • RS-485 Communication Setup • Digital (TTL) Input/Output Setup • Power Supply Installation...
-
Page 15: Installation
Installation Reader Installation The MP9210 is designed for easy installation. The following instructions provide the information to install your reader. As shown in Figure 6, the reader is designed for horizontal installation and has four rubber pads on the back panel to prevent slippage. -
Page 16: Rs-232 Communication Setup
MP9210 Owner’s Manual RS-232 Communication Setup The reader is equipped with a 9-pin RS-232 communication port for communication directly with a PC or other serial device. To set up a reader network with RS-232 communications, perform the following steps: 1. Insert the 9-pin male plug on the RS-232 cable into the 9-pin female connector on the end panel of the reader. -
Page 17: Rs-485 Communication Setup
Installation RS-485 Communication Setup The MP9210 communicates with the SAMSys Interrogator Control and Concentrator Module (ICCM) using an RS-485 interface. To set up a reader network with RS-485 communications, perform the following steps: 1. Insert the 3-pin male plug on the RS-485 cable into the 3-pin connector on the end panel of the reader. -
Page 18: Digital (Ttl) Input/Output Setup
North American Power Supply Installation Power is provided to the MP9210 by a 120/240 Vac to 12 Vdc power supply. Perform the following to install the power supply: 1. Insert the DC power connector into the connector on the end panel of the reader. -
Page 19: International Power Supply Installation
Standard, straight Female Barrel 5.5 x 2.1 x 12 mm with center positive. The North American model of the MP9210 power supply is a custom made power supply manufactured by GlobTek, Inc. The part number is WR92E1250CS2-Y. GlobTek will provide the same power supply with... -
Page 20: Operation
Operation This chapter provides general information to operate the MP9210. Topics discussed in this chapter include the following: • Reader Power Up • Reading Tags • Operation with the ICCM • Operation with a Terminal Emulation Program... -
Page 21: Reader Power Up
Operation Reader Power Up When the power supply is connected, the reader produces an extended beep while each LED indicator flashes briefly in sequence. The reader is operational when the Power Transmit LEDs remain on. Figure 8: LED Indicators - Reader Operational Reading Tags After power up, the reader begins transmitting at the specified frequency. -
Page 22: Operation With The Iccm
LAN-attached application server. Contact your SAMSys representative for more information on the ICCM product or visit the SAMSys web site at www.samsys.com. Operation with a Terminal Emulation Program In addition to the ICCM, a terminal emulation program such as ®... -
Page 23: Troubleshooting
Troubleshooting This chapter provides general information to troubleshoot the MP9210. Topics discussed in this chapter include the following: • General Troubleshooting • Contact Us... -
Page 24: General Troubleshooting
MP9210 Owner’s Manual General Troubleshooting SAMSys readers are designed, manufactured, and tested to provide many years of trouble-free service. However, in the event of a reader malfunction or failure, refer to the following troubleshooting instructions to help identify and correct the problem. - Page 25 Troubleshooting Symptom Probable Cause Corrective Action No LEDs or Power supply Ensure power supply is buzzer during malfunction. inserted into wall outlet. Verify power up. correct operating voltage at outlet. Replace Power Supply. Reader software is Replace reader. corrupt. Reader appears Readers are Disconnect the power from the to lock up.
- Page 26 MP9210 Owner’s Manual Symptom Probable Cause Corrective Action No buzzer when Buzzer malfunction. Reader may operate normally reading a tag. without buzzer, but the reader should be replaced as soon as possible. Reader board If the reader does not read or failure.
-
Page 27: Contact Us
Verify reader operation with a known good tag. Contact Us For any questions regarding products and services, including returns, repairs, technical support, training, and all other available services, contact your distributor or SAMSys Customer Service at the following: E-mail support@samsys.com Telephone... - Page 28 MP9210 Owner’s Manual...
-
Page 29: Specifications
Specifications This chapter describes the specifications for the MP9210. Information provided includes the following: • Reader Specifications • Environmental Specifications • Power Supply Specifications • Digital I/O Connector Specifications • RS-232 Connector Specifications • RS-485 Connector Specifications... - Page 30 MP9210 Owner’s Manual Reader Specifications Range Up to 6 inches (15.24 cm) Frequency 13.56 MHz Sensitivity –65 dBm with a gain limit of 80 dB Antenna Drive 200 mW Current Connections RS-232, RS-485, Digital I/O (TTL) or Wiegand Input Voltage...
-
Page 31: Digital I/O Connector
Specifications Power Supply Specifications Input Voltage 100 – 240 VAC Input Consumption 0.3 A, 31 – 45 VA Input Frequency 50 – 60 Hz Output Voltage 12 VDC Output Current Digital I/O Connector Specifications Figure 10: Digital I/O Connector Pin 1 Input common for pins 2, 3, 4, 5 (<80 Vdc) Pin 2 Digital input... -
Page 32: Rs-232 Connector
MP9210 Owner’s Manual RS-232 Connector Specifications Figure 11: RS-232 Connector Baud rate 9600 — Parity None — Data bits — Stop bits — Pin 1 CNVSS Normally low. High puts reader in programming mode. Pin 2 ETxD1 Pin 3 ERxD1... -
Page 33: Rs-485 Connector
Specifications RS-485 Connector Specifications Figure 12: RS-485 Connector Pin 1 RS-485 Phase A Pin 2 RS-485 Phase B Pin 3 RS-485 Phase C (common) - Page 34 MP9210 Owner’s Manual...
- Page 36 SAMSys Technologies, Inc. Part Number: HI469-21-OM-V2.1 Printed in U.S.A.
