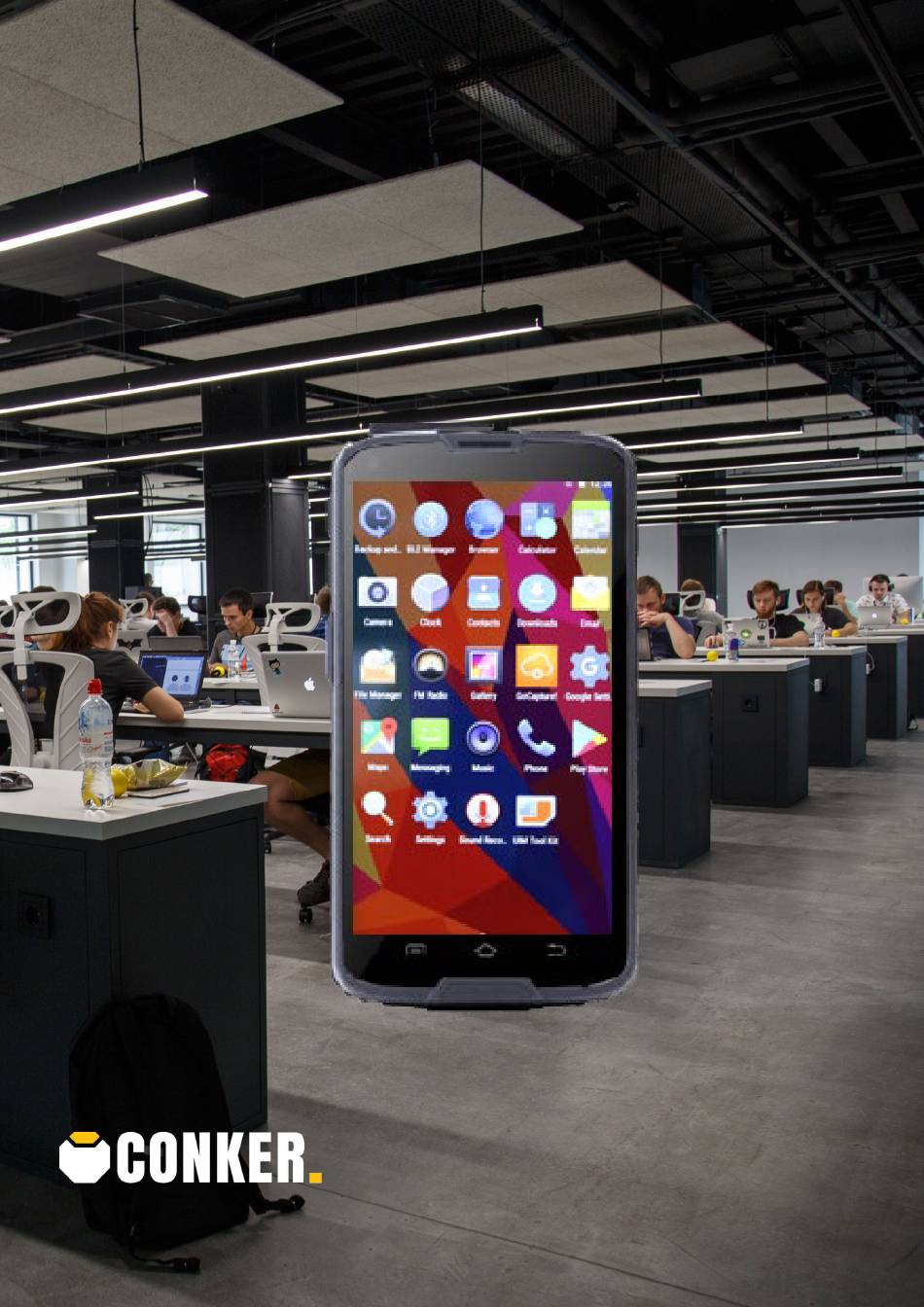

- Page 1 5” RUGGED ANDROID BARCODE SCANNER CONKER SX5...
- Page 2 IT’S THIS RUGGED. THE CONNECTIVITY IS THIS GOOD. I65 Rated 1 x 3.5mm Headphone jack Drop Tested from 1.2m onto concrete 1 x Micro USB (OTG) Protected against water jets 1 x Micro SD card Impervious to dust 2 x SIM slot Operating temperature between -20 °C 2 x SAM slot and 70 °C...
- Page 3 HOW TO USE YOUR SX5 RUGGED DEVICE Light sensor/ notification light Ear piece Front camera Menu button Home button Back button Camera flash Rear Camera NFC Antenna Rear cover lock Loud speaker Volume buttons Scan trigger Power button Scan trigger...
- Page 4 INSTALLING SIM AND MICRO SD CARD To remove the back cover rotate the rear cover lock anti-clockwise Always use right size of SIM card Lift battery cover begining at the re- moval point indicated Orientate the SIM and Micro SD card as per the picture below and also on the phone just above each SIM and SD card slot...
- Page 5 BARCODE SCANNING To access the barcode scanner setting, enter “Settings” > “Barcode” Here you can deactivate either or both trigger buttons to prevent accidental triggering. You can also set the barcode scanning mode and the suffix. By default the suffix is configured to be a carriage-return.
- Page 6 GET IN TOUCH To contact Conker Support: 01279 295830 Support@weareconker.com Conker Calf Pens Hatfield Park Farm Takeley CM22 6NG Conker customers benefit from the UK’s market leader in rugged device support. Contact us with complete confidence.
- Page 7 Thank you for purchasing a CE Marking and European Economic Area Tablet Technologies hereby declares that this equipment is in compliance with Direc�ve 2011/65/EU and 1999/5/EC or 2014/53/EU. The following standards have been applied and tested. Conformity is limited to the essen�al requirements of the R&TTE.
- Page 8 Ba�ery Informa�on CAUTION. Use only approved ba�eries. Risk of explosion if ba�ery is charged with an incompa�ble charger, exposed to heat >60C or replaced by an incorrect type. European Ba�ery Direc�ve 2006/66/EC Dispose of ba�eries separately and responsibly. All waste ba�eries are classified as hazardous waste and should be disposed of at a ba�ery recycling centre.
- Page 9 Embedded Laser: Wavelength 650 nm Max power output 10 mW Cau�on - use of controls or adjustments or performance of procedures other than those specified by the manufacturer may result in hazardous radia�on exposure.
