DMP Electronics 1137 Installation Manual

1137 WIRELESS LED EMERGENCY LIGHT
Installation Guide

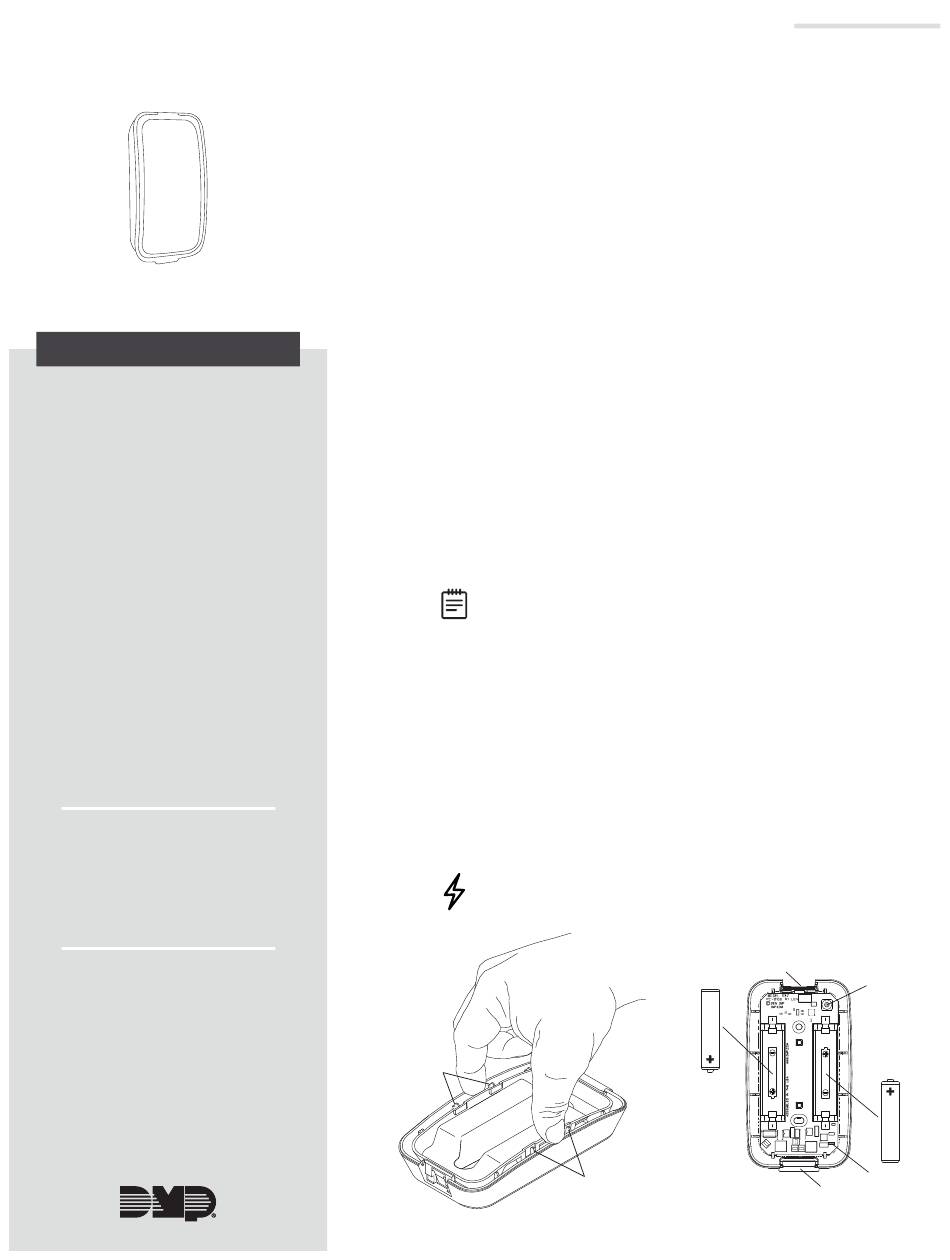

Figure 1: 1137 Wireless LED
Emergency Light
DESCRIPTION
The 1137 Wireless LED
Emergency Light is a battery
powered LED light that may be
programmed for any output in
panel programming such as the
Burglary or Bell Output.
The light may be used for path
lighting during an alarm or
trouble. For example, when
programmed as the Burglary
Alarm Output, the 1137 may be
used to automatically illuminate
dark areas.
Multiple lights can be activated
simultaneously by the panel via
the Trip with Panel Bell feature.
Unless turned off, the light will
automatically turn off after 15
minutes of operation.
Compatibility
• All DMP 1100 Series Wireless
Receivers and Panels
What is Included?
• One 1137 Emergency Light
• Two AA Energizer Ultimate
Lithium batteries
1
PROGRAM THE LIGHT
Refer to the panel programming guide as needed.
Program the device as an output in Output Information during
1.
panel programming.
2. At the Serial Number prompt, enter the eight-digit serial
number. The serial number is located on the PCB between the
two batteries.
3. Continue to program the output as directed in the panel
programming guide.
In Output Information program the wireless output as:
XTLplus/XTLtouch
XT30/XT50
XR150/XR550
Trip with Panel Bell Option
Select YES to have the 1137 lights follow the panel bell output including
bell cutoff time. The ON/OFF state of the 1137 can not be changed via
the output menu or any other panel function. Default is YES.
2
INSTALL OR REPLACE THE BATTERIES
Observe polarity when installing batteries. Use only AA Energizer
Ultimate Lithium batteries.
Note: When setting up a wireless system, program outputs
and connect the receiver before installing batteries in
the Emergency Lights.
1. Open the cover lens and remove the reflector to expose the
batteries (see steps 1 and 2 in Mount the Light). Remove the
old batteries and dispose of properly.
2. Observing polarity, place the batteries in the holders and
press into place. When the batteries are installed with
the proper polarity, the RED Survey LED on the PCB will
immediately begin to flash. If the RED Survey LED does not
begin to flash, the batteries are not installed with the proper
polarity. They must be removed and installed correctly. See
Figure 3.
3. Snap the reflector in place and snap the cover lens in place.
Caution: Properly dispose of used batteries. Do not
Reflector
Snap-in
Retainers
Figure 2: Reflector Removal
51-54, 61-64
31-34, 41-44
450-474, 480-499
recharge, disassemble, heat above 212°F (100°C), or
incinerate. Risk of fire, explosion, and burns.
Observe polarity
when installing
batteries
Reflector
Snap-in
Retainers
Figure 3: PCB and Battery Location
Cover Lens Latch
Case Tamper
Switch
Red Survey LED
Cover Lens Hinge
