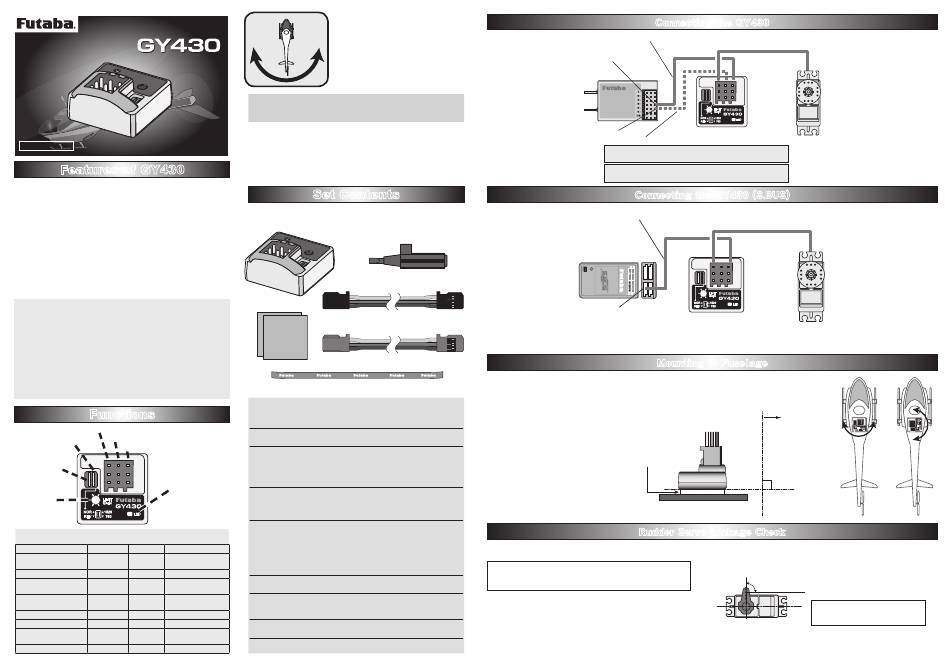

FUTABA GY430 Instruction Manual

1M23N27202
Rate Gyro for Helicopters
I M
I M
NSTRUCTION ANUAL
NSTRUCTION ANUAL
For RC models
Features of GY430
● Remote gain function and mode switching function
You can adjust gain from the transmitter by using the remote gain
function. Gain can also be adjusted with the trimmer on the GY430.
The mode switching function allows AVCS/NORMAL gyro mode
switching.
● Integrated, compact,and light weight
Compact size（20.5x20.5x11mm）and light weight（3.5g）
realized by high density mounting technology.
● Easy setup
The GY430 can be used immediately with minimum setup.
● Supporting the S.BUS/S.BUS2 connection
Only one wire connection to the receiver can operate the GY430.
GY430 Ratings:
(Integrated sensor type rate gyro)
• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC4.0V to 8.4V
• Current drain: 30mA (excluding a servo)
• Operating temperature range: -10ºC to +45ºC
• Dimensions: 20.5 x 20.5 x 11.0mm (except protrusion)
• Weight: 3.5g
• F u n c t i o n s : S e n s i t i v i t y t r i m m e r . L E D m o n i t o r . S e r v o
selection(1520uS,760uS). S.BUS/S.BUS2 connection.
Functions
● Port3（Rudder output）
● Port2（Gain input）
● Servo Selection Switch
● Port1（Rudder input/S.BUS input）
● Gyro Direction
Switch
● LED
● Trimmer
（Limit / Gain）
Monitor LED display
State Color Move Reference
1. No servo pulse /
Red Slow blink
sensor error
2. Warm-up Green Fast blink
AVCS (Red)
3. Sensor initialization Red/Green ON
Normal (Green)
Right (Green)
4. Turn Red/Green Fast blink
Left (Red)
5. Neutral offset Orange Slow blink Stick operation
6. Gain off OFF
－
Each time of switch
7. Switch operation Green One blink
operation
8. Low battery Red One flash Less than 3.8V
Thank you for purchasing a GY430
gyro, a rate gyro for RC helicopters.
GY430 is a lightweight micro gyro
developed for RC helicopter rudder
(yaw axis) control. It can be used with
mininum setup and includes an S.BUS/
S.BUS2 port.
Before using your new gyro, please read this manual thoroughly
and use the gyro properly and safely. After reading this manual,
store it in a safe place.
• No part of this manual may be reproduced in any form without
prior permission.
• The contents of this manual are subject to change without prior
notice.
• Futaba is not liable for any potential damage (accidental or oth-
erwise) that may occur after installation.
Set Contents
The following items are supplied with the GY430:
GY430
Mini screwdriver
Extension Cord: (Black)
Sensor tape
Extension Cord: (Red)
Wiring strap
WARNING
Failure to follow these safety precautions may result in severe injury
to yourself and others.
 Always check the transmitter and receiver battery voltage to ensure
they have enough remaining capacity to complete the flight.
 The GY430 requires 3-5 seconds to initialize when the power is turned
on. Do not move the helicopter and do not move the rudder stick during
this initialization or the gyro may not initialize properly. Once the initializa-
tion process has been completed the rudder servo will move several times
indicating that the GY430 is now ready for flight.
 Always ensure that there is some slack in the gyro cables to help maxi-
mize performance. Always use the supplied gyro mounting pads to attach
the gyro to the helicopter mechanics. Do not use a strap that encompasses
the GY430 sensor. This may affect the overall performance of the gyro.
 If you are switching between NORMAL mode and AVCS mode in flight,
please keep in mind that you must have the gyro re-learn the center posi-
tion after making a trim change within the transmitter. To memorize the new
center position simply flip the gain switch on the transmitter three times
between NORMAL mode and AVCS mode (NORMAL → AVCS → NORMAL
→ AVCS → NORMAL → AVCS) within one second. The servo will center indi-
cating that the new center position has been memorized.
 Be sure to use a digital servo. Use only digital servos with the GY430.
Using the GY430 with an analog servo will damage the servo.
 Always check the direction of operation of the servos. If you attempt to
fly the model when a servo operates in the wrong direction, the fuselage
will spin in a fixed direction and enter an extremely dangerous state.
 Do not drop the GY430 onto a hard surface or subject the GY430 to a
strong shock as this may damage the sensor.
 When using the GY430 in the AVCS mode, set revolution mixing to OFF.
Connecting the GY430
Extension Cord:（Black）
Rudder CH
Receiver
Gyro gain CH
Extension cord:（Red）
Gyro gain CH(Receiver)←connect→Port2(GY430)
Remote gain effective. Trimmer(GY430) becomes LIMIT.
Gyro gain CH(Receiver)←It does not connect→Port2(GY430)
Remote gain is invalid. Trimmer(GY430) becomes GAIN.
Connecting the GY430 (S.BUS)
Extension cord:（Black）
S.BUS Receiver
S.BUS/S.BUS 2 port
S.BUS CH
Rudder --- 4CH
Gyro gain --- 5CH
Mounting to Fuselage
GY430 installation precautions
· Always use the accessory sensor tape to
install the GY430. Install the GY430 the
center of the sensor tape.
· Depending on the vibration from the heli-
copter, the sponge may tear near the cor-
ners of the sensor tape. If the helicopter is
flown in this state, vibrations will not be
sufficiently absorbed and the sensor may
fall off. Before flight, always check the sen-
Sensor tape
sor installation state. If the sponge is torn,
replace it.
*Oil on the sensor bottom and the part in-
stalled to the frame can be wiped off with
Gyro mounted to the helicopter
cleaner, etc.
Rudder Servo Linkage Check
In the NORMAL mode, make the following linkage checks:
Make the initial linkage connections in the NORMAL mode.
In this case, make adjustments mechanically and make mini-
mum trimmer adjustments at the transmitter.
Move the rudder stick to the right and left and check the di-
rection of operation of the tail rotor. If the tail rotor turns in
the wrong direction, reverse the direction with the transmitter
reverse function.
Port 3
Port 1
Port 2
GY430
Rudder servo
※Only digital servo
Port 2 is not connected.
Port 3
Port 1
GY430
Rudder servo
In S.BUS connection, the port 2
is not connected.
※Only digital servo
Remote gain is still effective.
Install the sensor so that the bottom of the
gyro is perpendicular to the main rotor shaft
axial direction. Offset of this axis will also re-
act in the roll and pitch directions.
Main rotor shaft
LIMIT
GAIN
As shown in a figure, the direc-
tion which sticks GY430 is free.
90°
GY430
·In the rudder neutral position, connect the linkage at the position at
which the servo horn and control wire are perpendicular.
Perpendicular
Control wire
Set the servo horn length based on
the helicopter manufacturer's instruc-
tions.
