TECHNICAL SHEETS
Audio
POLYX
Description
2 WIRE handsfree handset for wall mounted installation.
It's fitted with keys for: EP activation/cycling, door lock release, staircase light switching
on and 4 programmable keys, which operating mode is set through the configuration.
Specific audible and visual signals mean that it is also suitable for use by disabled people.
Fixing bracket supplied.
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Stand by absorption:
5 mA
Max. operating absorption:
55 mA
Operating temperature:
5 - 40°C
Dimensional data
124,5 mm
10
9
8
7
Front
30 mm
Rear view
Legend
1 - Call signalling LED
2 - Loudspeaker
3 - Staircase light key
4 - Loudspeaker volume adjustment
5 - Connection key+ LED
6 - Microphone
7 - Door lock key + LED
8 - Bell volume adjustment and exclusion + LED
9 - EP Activation/cycling
10 - 4 programmable keys (through configuration)
11 - Clamps for the connection to the 2 WIRE BUS
12 - Line termination ON/OFF micro-switch
13 - Configurator socket
14 - Clamps for the connection of the Floor call auxiliary services and extra bell
1
6
11
12
ON
BUS
OFF
14
13
ART.344082
344082
2
3
4
5
5 1
1
Advertisement
Related Manuals for Bticino 344082
Summary of Contents for Bticino 344082
- Page 1 TECHNICAL SHEETS Audio POLYX 344082 Description 2 WIRE handsfree handset for wall mounted installation. It’s fitted with keys for: EP activation/cycling, door lock release, staircase light switching on and 4 programmable keys, which operating mode is set through the configuration.
- Page 2 TECHNICAL SHEETS 344082 Configurator in P key ( ) function Configuration Entrance panel audio activation N - handset number (configured with P=0-9) Assigns to each handset an identification number within the system. The handsets must be configured in progressive order. Handsets with parallel connection (max 3 are...
- Page 3 TECHNICAL SHEETS 344082 Configuration Below are the various operating modes that can be assigned to the 4 programmable keys: MODE FUNCTION NOTES MOD = Intercom on itself, it sends the call to all handsets with the same address. EP activation (configured with P+1), directly, without call, or activation of the...
- Page 4 TECHNICAL SHEETS 344082 MODE FUNCTION NOTES MOD = Intercom inside the apartment, in systems with apartment interface item 346850, or intercom among apartments without apartment interface. Intercom inside the apartment, in systems with apartment interface item 346850, or intercom among apartments without apartment interface.
- Page 5 TECHNICAL SHEETS 344082 MODE FUNCTION NOTES Activation of the scenario saved in the scenario module (SCENARIO 1) MOD = Activation of the scenario saved in the scenario module (SCENARIO 2) EP door lock release (configured with P+1), directly, without call, or activation of...
- Page 6 TECHNICAL SHEETS 344082 MODE FUNCTION NOTES MOD = Intercom between apartments, in systems with apartment interface, item 346850 Intercom between apartments, in systems with apartment interface, item 346850 Intercom between apartments, in systems with apartment interface, item 346850 Intercom between apartments, in systems with apartment interface, item 346850...
- Page 7 TECHNICAL SHEETS 344082 Configuration 20 = B 40 = C 60 = D 80 = E A Configuration selected for the operation of the keys (see previous pages) B Configuration selected for the operation of the keys + OFFICE function...
- Page 8 TECHNICAL SHEETS 344082 OFFICE FUNCTION DETAIL With the function active, when a call is received from the entrance panel, the video handset rings and the associated door lock is automatically released, without the need for pressing the door lock release key on the handset.
- Page 9 TECHNICAL SHEETS 344082 DOOR STATUS function PUSH TO TALK function This function notifies the status of the door lock. If open, the “door lock LED” flashes, if If the entrance panel is in a particularly noisy position, during the conversation it will closed, the LED stays off.
- Page 10 TECHNICAL SHEETS 344082 Programming of bells Bell selection from MAIN ENTRANCE PANEL (S=0) EXIT EXIT >3s >3s EXIT EXIT EXIT >3s >3s >3s EXIT EXIT >3s EXIT >3s EXIT >3s EXIT EXIT >3s >3s >3s EXIT EXIT EXIT EXIT >3s >3s...
Need help?
Do you have a question about the 344082 and is the answer not in the manual?
Questions and answers

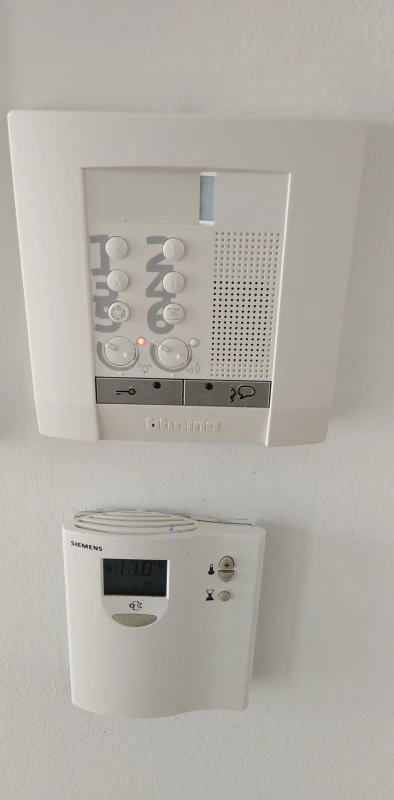

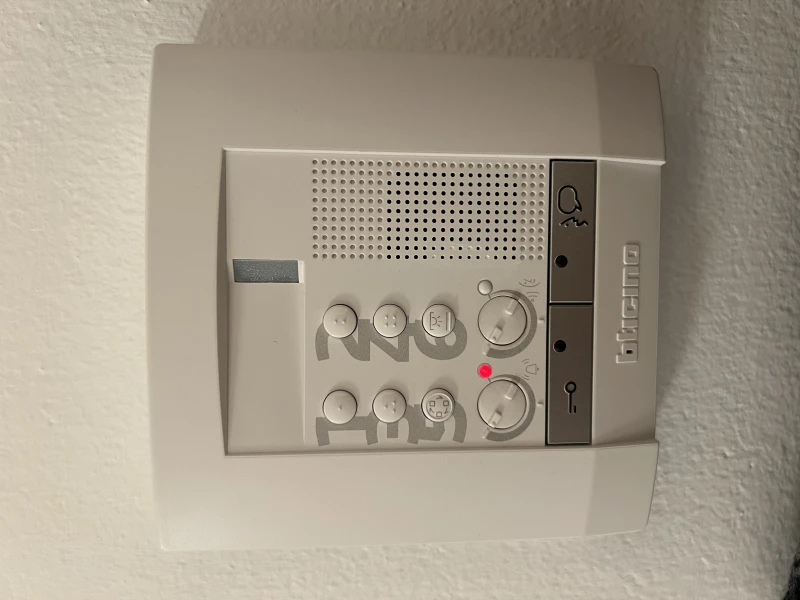

Hello. I have the Bticino 344082 installed in my apartment. It has a red-light indicator constantly red on the left turn regulator. Also quite frequently, but very sporadically it does beep. How should I handle it?
@MICHAEL CHAUSSKY
@Αποστολος Γουρζουλιδης
If the red light indicator on the Bticino 344082 is constantly on and the device beeps sporadically, it suggests that a function is currently active or the device is in an unintended mode. According to the manual:
1. Red LED Constantly On: This indicates that a function is active while the device is otherwise in an idle state.
2. Sporadic Beeping: This may be due to key press sounds being enabled or an active mode causing notifications.
### Recommended Actions:
- Check and Disable Active Function: Press the "Connection" key briefly to end any ongoing function. The red LED should turn off once the function is deactivated.
- Disable Beep Sound (if desired):
- To disable the key beep, follow the procedure outlined in the manual:
- Hold the key combination mentioned (likely represented as “>3s BEEP” in the context) for over 3 seconds until confirmation.
- Handsfree Mode: If the Handsfree function is enabled (which automatically activates the speaker and mic), it might cause unexpected behavior. To disable:
- Press the relevant key again to turn off the Handsfree mode.
In summary, press the Connection key briefly to exit the current mode and turn off the red LED, and if beeping continues, disable the key sound or check for other active functions like Handsfree.
Would you like help finding the exact key combination to disable the beep?
This answer is automatically generated
