Remote Audio Lifebox 20 User Manual

4. Current shunt range

This meter is designed to function with either a 50 or 100 Amp current shunt. The
meter has been preset to use the supplied 100 Amp current shunt. This setting
should not need any adjustment.
Step1: Press and hold the key (about 8 seconds) until "Curr" appears flashing at the
bottom left of the screen. Then release the key.
Step2: At this time, you will see "100A" displayed at the top left of the screen. A
single click of the key will switch between "100A" and "50A". Press and hold the key
to save the setting. If there is no operation after 3 seconds the meter will
automatically quit.

Specifications

Dimensions:
Weight:
DC Output Voltage:
Output Current:
Input/Output Connectors:
Battery Capacity:

Limited Warranty

Remote Audio warrants the MEON Series LiFe Box against defects in materials and workmanship for a period of one
(1) year from the date of original retail purchase. The internal battery pack is warranted for six (6) months. Remote
Audio will repair or replace qualifying products at its discretion at no charge. Please visit our website for complete
terms and conditions or contact us at info@remoteaudio.com
9.44" x 7.80" x 4.29" (L x W x D)
7.4 lbs
12 V Nominal, battery shutdown below 10 V
10 A max, external automotive blade fuse
One (1) 4-pin XLR Female and One (1) NL2 Male SpeakON
250 Wh
U S E R G U I D E

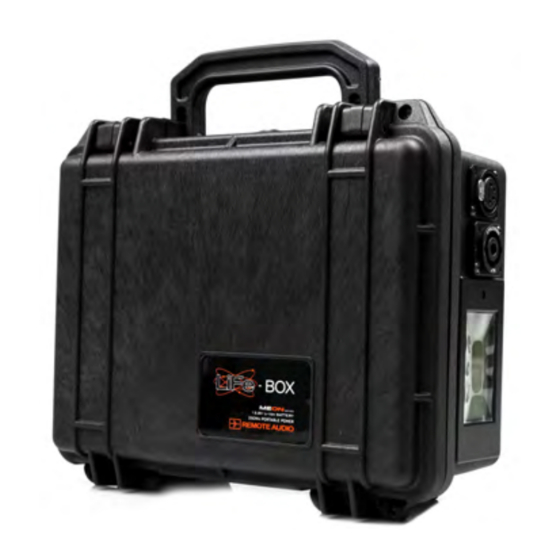

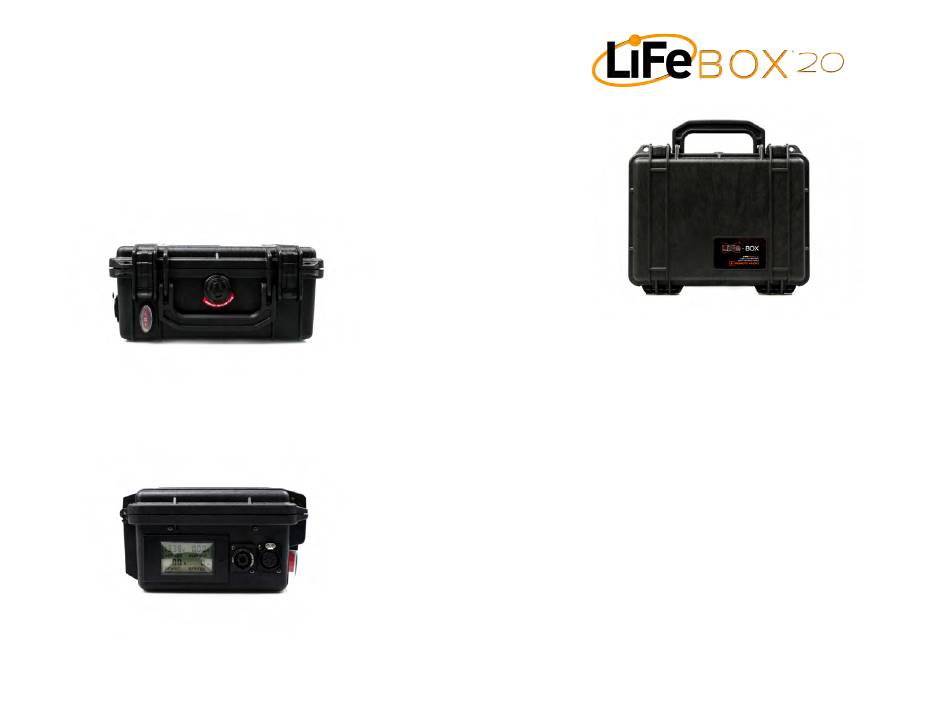

Remote Audio's MEON Series LiFe Box 20 is a Lithium Iron Phosphate (LiFePO4)
battery module designed to be used as a stand-alone 12 Volt DC power source
providing 250 Watt-hours (20 Amp-hours) of battery life at up to 10 Amps
continuous current and digital metering all housed in a compact and portable
Pelican 1150 case. The LiFe Box 20 can also be used as a supplemental battery to
the MEON LiFe cart power system to extend its run time.

LiFePO4 Battery

The MEON Series LiFe Box's Lithium-Iron-Phosphate (LiFePO4) batteries, similar to
other Li-Ion technology batteries, are lower weight and smaller size than
equivalent capacities in other chemistries, such as Lead Acid and NiMH. However,
a key advantage of the LiFePO4 when compared to other Li-Ion types is its
superior thermal and chemical stability, higher peak-power rating, and it contains
no toxic heavy metals. It is internally protected against over-charge (> 15.2 Volts)
and over-discharge (< 10.0 Volts) and short circuit conditions.

Connections

The LiFe Box 20 has two DC input/output connectors; a Neutrik 2-pole SpeakON
Male and Neutrik 4-pin XLR Female.
The 2-pole SpeakON wiring configuration is 1+ = Battery +, 1- = Battery -.
The 4-pin XLR wiring configuration is pin 4 = Battery +, pin 1 = Battery -.
