- Page 1 *** USER’S MANUAL *** FCC ID : SRKWPBT100S...
- Page 2 The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication.

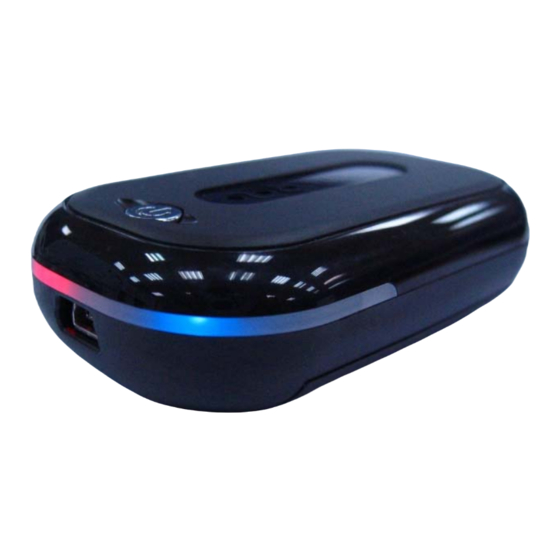

- Page 3 GPS Bluetooth Receiver User’s Guide Bluetooth GPS Receiver User’s Guide...
-
Page 4: Table Of Contents
Bluetooth GPS Receiver User’s Guide Table of Contents Read Me First………………………………………………………………………………….. p.3 Box Contents…………………………………………………………………………………… p.3 Getting Started…………………………………………………………………………………. p.3 Hardware Description…………………………………………………………………………. p.7 LED Indicator…………………………………………………………………………………... p.8 Specification……………………………………………………………………………………. p.9... -
Page 5: Read Me First
Bluetooth GPS Receiver User’s Guide 1. Read Me First 1. The battery must be charged for at least 8 hours for the ‘INITIAL’ use. The LED1 (ORANGE) will turn off after 3 hours’ charging, please keep on charging for 5 more hours. Thereafter, for each time’s battery charging please fully charge for 3 hours. - Page 6 Bluetooth GPS Receiver User’s Guide BTGPS Click here Click here to select installation...
- Page 7 Bluetooth GPS Receiver User’s Guide BTGPS **** Enter Pass Key " 0000", then Press “Enter” Enter key BTGPS BTGPS Click here Click here...
- Page 8 Bluetooth GPS Receiver User’s Guide Connection established BTGPS: SPP slave The connection between GPS Bluetooth receiver and PDA has been successfully established 5. Turn off the GPS Bluetooth receiver Press the power button for 1 second, all LEDs will goes off. We recommend that close the E-map before turning off the GPS Bluetooth receiver, in order to avoid any possible PDA /PC freeze.
-
Page 9: Hardware Description
Bluetooth GPS Receiver User’s Guide 4. Hardware Description LED3: Power Status Power Button (GREEN) LED1: Charging Status (ORANGE) LED4: Bluetooth Status Charge Socket LED2: GPS Fix Status (BLUE) (RED) Slip-Resistant... -
Page 10: Led Indicator
Bluetooth GPS Receiver User’s Guide 5. LED Indicator Power on: LED1: Charging Status LED2: GPS Fix Status LED3: Power Status LED4: Bluetooth Status Red (Keep ON) Blue GPS not fixed yet! Blinking quickly for the first 5 sec., then blinking slowly (in paring mode) GPS get fixed/Bluetooth connected: LED1: Charging Status LED2: GPS Fix Status... -
Page 11: Specification
Bluetooth GPS Receiver User’s Guide 6. Specification GPS Features Datum Chipset SiRF Star III WGS-84 Dynamic Conditions Frequency L1, 1575.42MHz C/A Code 1.023MHz chip rate Altitude <18,000 m (60,000feet) Channels Supports 20 channels Velocity <515 m/s (1000 knots) Antenna (Internal) Built-in low noise antenna Acceleration <4G...
