Summary of Contents for Soekris DAC2541

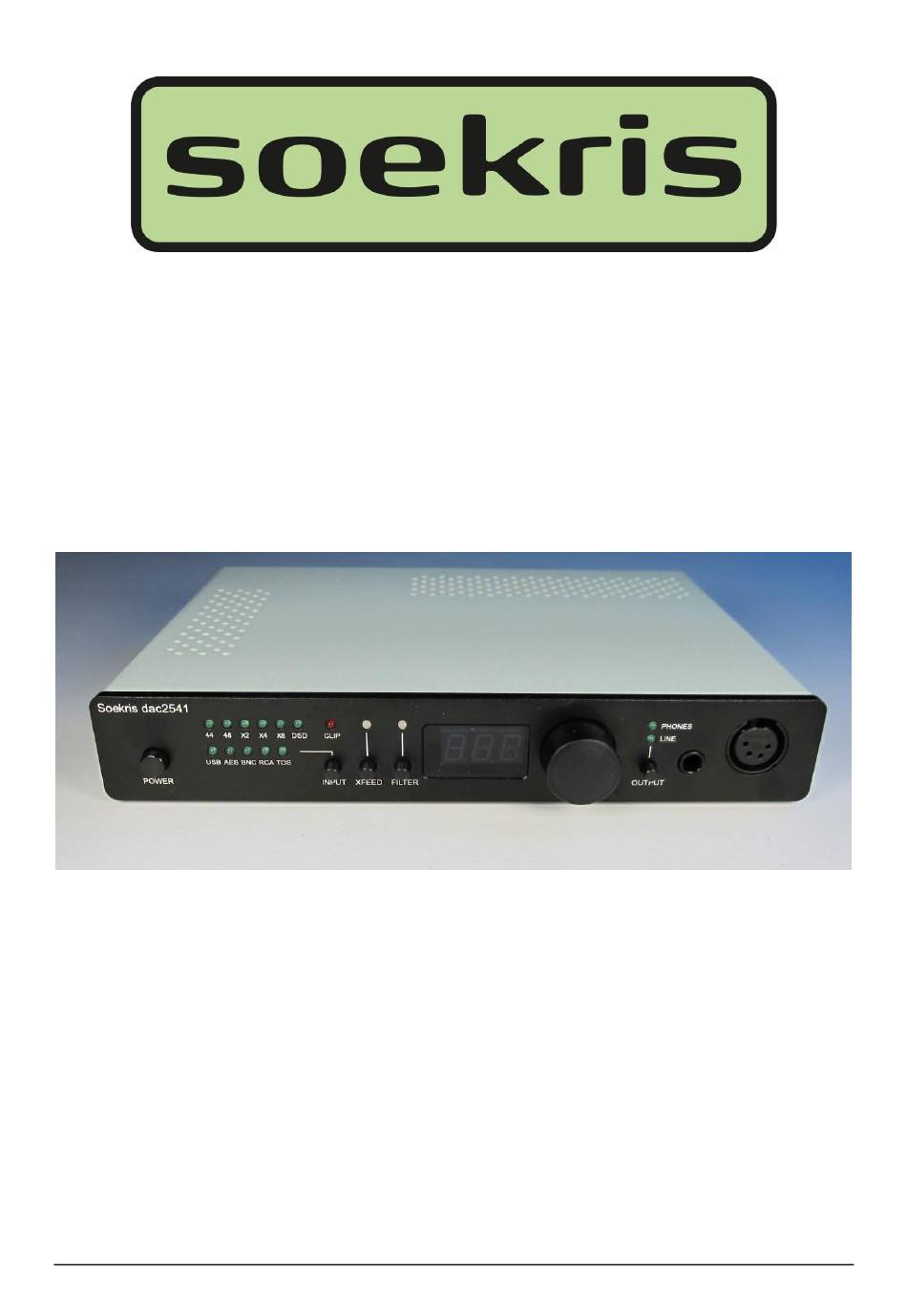

- Page 1 Users Manual Discrete R-2R DAC / HeadAmp www.soekris.dk Nov 2020...
- Page 2 Soekris Audio ApS dac2541 Users Manual Empty Page www.soekris.dk Nov 2020...
- Page 3 XLR or 6.3mm Jack, or to line level outputs on rear mounted XLR and RCA Phono connectors. The dac2541 is not just any regular DAC, the sound quality is the absolute best available, thanks to the ultra high end...
-
Page 4: Specifications
Soekris Audio ApS dac2541 Users Manual Specifications THD @ -1 dB <0.004% THD @ -60 dB <0.02% Clock Jitter RMS 0.3 pS typical Discrete Resistor Network 28 bit, 0.01% - 0.05% Resistors S/N 20 Khz Bandwidth >126 dB unweighted Frequency Range @ 44.1 Khz 20hz - 20Khz +0.1 -1.0 dB... - Page 5 Soekris Audio ApS dac2541 Users Manual dac2541 front view “POWER” button: Main power switch. The LED’s on the front indicates input sample rate, input source, crossfeed setting, reconstruction filters selected, selected output and a clip indicator. When input is Linear PCM audio When input is DSD or DoP audio “44”...
- Page 6 1 dB steps. If you connect the Line Out to a system with a volume knob you might want to set the dac2541 Line Out volume startup level to a fixed 0 dB, you can do that by selecting Line Out, turning the volume up to -4 or higher, then store the startup setting by pressing and holding the “FILTER”...
- Page 7 The power Supply is double isolated. Power Cable: The dac2541 is supplied with a power cable for the US and EU markets, but any power cable designed to fit between an IEC8 socket and the wall power socket in your country can be used, it don’t need to be anything fancy.
-
Page 8: Conformity Declarations
Soekris Audio ApS dac2541 Users Manual Conformity Declarations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
