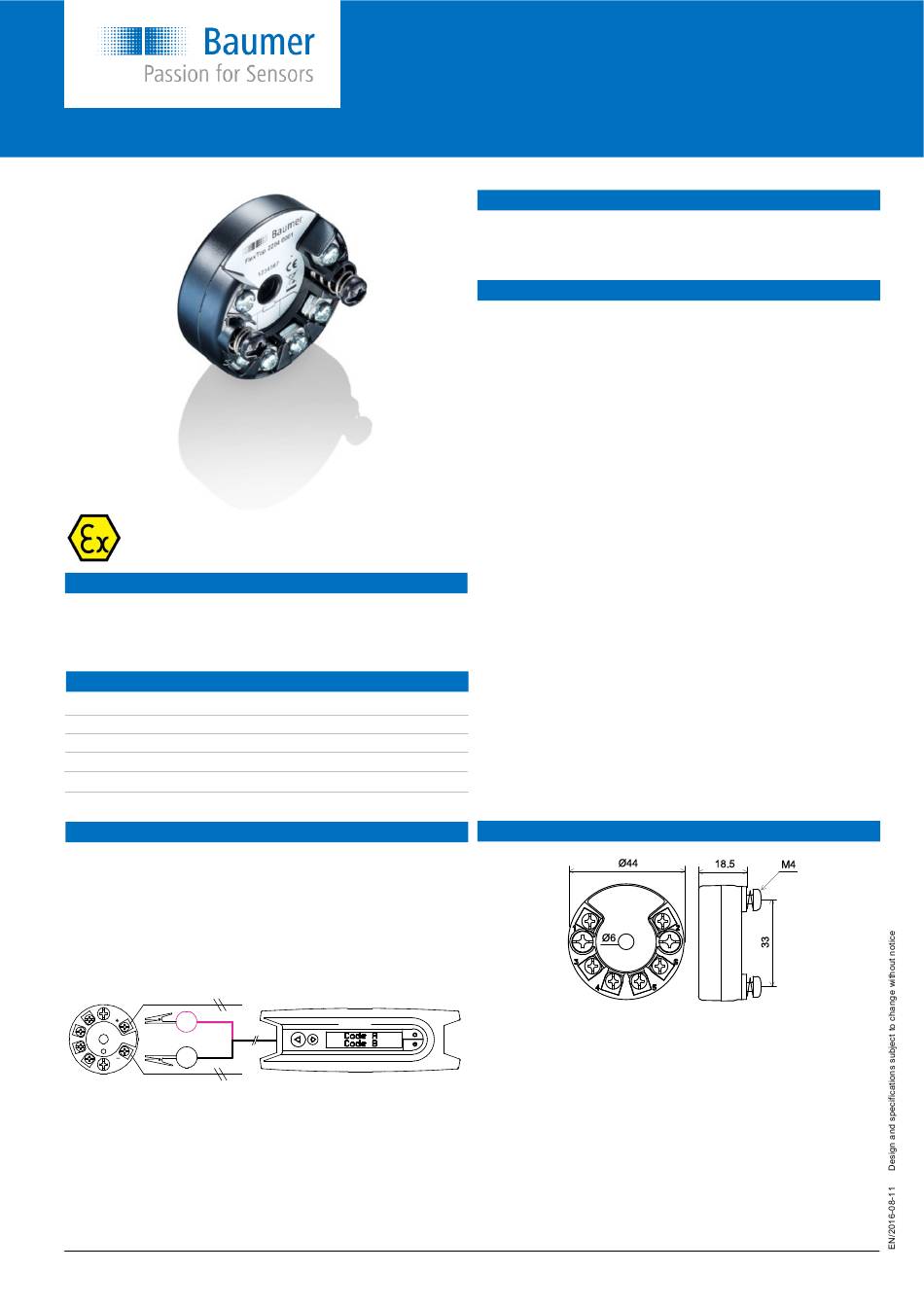

Baumer FlexTop 2204 Operating Instructions

Baumer FlexTop 2204 Operating Instructions

Temperature transmitter

Advertisement

Quick Links

Description

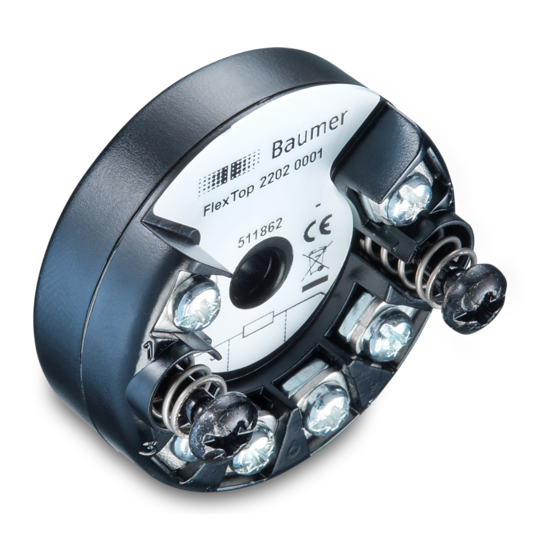

The FlexTop temperature transmitter type 2204 is suitable for input
from Pt500 RTD sensors, potentiometer and resistance input.
The FlexTop 2204 features a 4 ... 20 mA output signal.

Environment

Humidity
Ambient temperature
Storage temperature
Protection class
Vibrations

Configuring with FlexProgrammer 9701

The FlexTop 2204 can be configured using the 4...20 mA cable. The
maximum distance depends on the cable type, resistance and capacity.
We recommend to use shielded cables.
To be able to configure the FlexTop 2204 with the FlexProgrammer
9701 the dedicated software, Flex-program, must be loaded on the PC.
During the configuration the new data are, by means of the FlexPro-
grammer 9701, transferred from the PC to the FlexTop 2204, where
they are stored in the internal memory.
Note: During the first power-up after a configuration the power-on time
increases to approx. 10 sec.
www.baumer.com
<98 % RH, condensing
-40 ... 85°C
-55 ... 90 °C
IP00
GL, test 2
Operating Instructions: 11109133 02 EN
Temperature transmitter
FlexTop 2204
Operating instructions

Field of application

FlexTop temperature transmitter type 2204 is a compact temperature
transmitter, designed to be built into the housing of a temperature sen-
sor, like the Baumer CombiTemp.

Safety instruction

This instrument is built and tested according to the current EU-directives
and packed in technically safe condition. In order to maintain this condi-
tion and to ensure safe operation, the user must follow the hints and
warnings given in this instruction.
During the installation the valid national rules have to be observed.
Ignoring the warnings may lead to severe personal injury or substantial
damage to property.
The product must be operated by trained staff. Correct and safe opera-
tion of this equipment is dependent on proper transport, storage, instal-
lation and operation.
All electrical wiring must conform to local standards. In order to prevent
stray electrical radiation, we recommend twisted and shielded input
cables, as also to keep power supply cables separated from the input
cables. The connection must be made according to the connecting
diagrams.
Before switching on the power supply take care that other equipment is
not affected. Ensure that the supply voltage and the conditions in the
environment comply with the specification of the device.
Before switching off the supply voltage check the possible effects on
other equipment and the processing system.
WARNING
For electrical installation and commissioning of explosion protected
devices, the data given in the conformity certificate as also the local
regulations for installation of electrical apparatus within explosion pro-
tected areas must be considered. The intrinsically safe versions can be
mounted in the explosion hazarded area according to its specification
only connected to a certified intrinsically safe supply loop with the corre-
sponding electrical values.

Dimensions

WARNING
This product contains no replaceable parts.
In case of malfunction the product must be shipped to Baumer
for repair
Page 1 / 4
