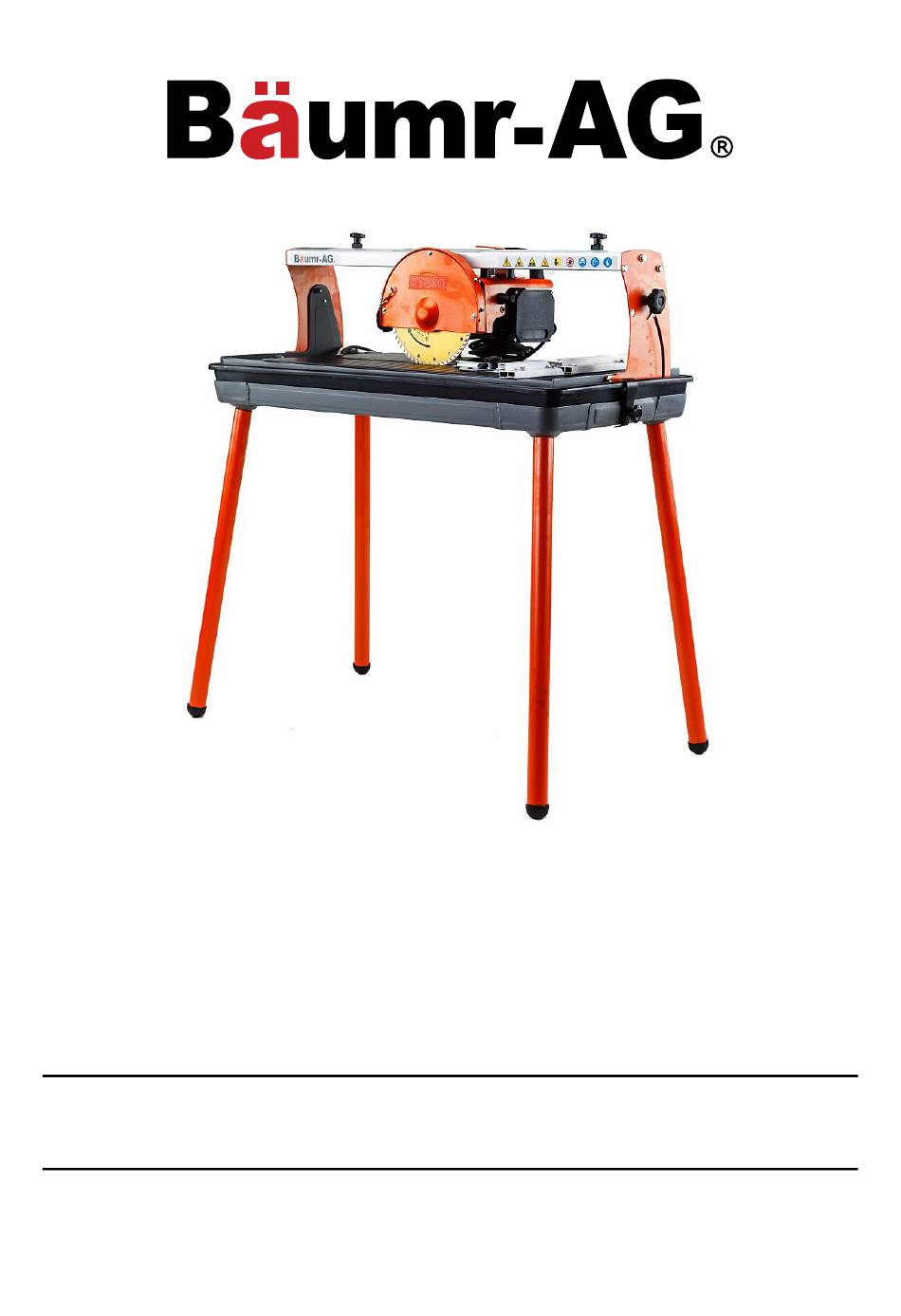

Tile Saw – BTS90
User Manual
[Revision 2.0 February 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY,
PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE.
• Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description
and packaging.
E&OE
©2018 Bäumr-AG
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Baumr-AG BTS90
Summary of Contents for Baumr-AG BTS90
- Page 1 Tile Saw – BTS90 User Manual [Revision 2.0 February 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Tile Saw BTS90 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or... - Page 3 Tile Saw BTS90 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must • The equipment must be serviced or cords, power bars, and electrical fittings have an approved cord and plug and be repaired at authorised service centres for damage or wear before each use.
-
Page 4: Safety Symbols
Tile Saw BTS90 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them. Flammable Material Hazard Read User Manual... - Page 5 Tile Saw BTS90 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the Do NOT attempt "slam dunk" confined areas or without...
-
Page 6: Equipment Safety
Tile Saw BTS90 Equipment Safety Tile saws are high-speed, fast-cutting equipment with exposed blades that can cause serious or fatal injury if not used correctly or without taking proper safety precautions. It is extremely important that you read and fully understand the information in this section and all other safety warnings / recommendations and usage instructions before using the equipment. - Page 7 Tile Saw BTS90 • Do NOT cracked or damaged cutting wheels. Use only cutting wheels supplied by the manufacturer and rated for the correct speed and type of material to be cut. • Fully understand how to safely operate the machine and the various attachments. See Operation.
-
Page 8: Table Of Contents
Tile Saw BTS90 Table of Contents Safety ............................. 2 Safety Symbols ............................4 Equipment Safety .......................... 6 Parts Identification ........................9 Assembly ............................. 10 Operation ............................. 11 Coolant ............................... 11 Straight Cuts............................... 11 Mitre Cuts ..............................12 Bevel Cuts ..............................12 Limiting Cut Length ............................ -
Page 9: Parts Identification
Tile Saw BTS90 Parts Identification Name Name Machine Frame Cutting Head Handle (not visible) Table Carriage Cutting Wheel Carriage Support / Bevel Adjustment Guard Stand Coolant Tray E&OE ©2018 Bäumr-AG... -
Page 10: Assembly
Tile Saw BTS90 Assembly 1. Before assembly, ensure that all parts have been supplied. 2. Lay the machine on its side, then attach each leg (A) to the main frame (B) using a M8 cap screw (C) and spring washer (D). Tighten the screws using the Allen key. -
Page 11: Operation
Tile Saw BTS90 Operation The machine is for cutting ceramic, marble, granite, and masonry tiles. The cutting wheel is water cooled. Ensure that the direction of rotation marked on the cutting wheel is in the same direction as the arrow on the guard. • Use only cutting wheels recommended by the manufacturer. -
Page 12: Mitre Cuts
Tile Saw BTS90 Mitre Cuts 1. Loosen the protractor knob (B) and rotate the protractor (A) until it is aligned at the required angle (0 to 45°). Firmly tighten the protractor knob by hand. 2. Set the cut width – loosen the cut width knobs (C), then move the protractor to the required setting. -
Page 13: Maintenance And Troubleshooting
Tile Saw BTS90 Maintenance and Troubleshooting Disconnect the tool from the electrical supply before performing any maintenance. • The tool should be cool enough to touch before performing maintenance activities. • Wear suitable gloves when handling blades. • Some maintenance activities described may be beyond the scope of some users. -
Page 14: Water Pump Maintenance
Tile Saw BTS90 Water Pump Maintenance Clean the filter and water pump immediately after you stop using the machine to help prevent any debris in the filter and pump from drying, which may reduce water flow and/or damage the pump. - Page 15 Tile Saw BTS90 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death, consult the points below and additionally, the information available at www.datastreamserver.com/safety •...
