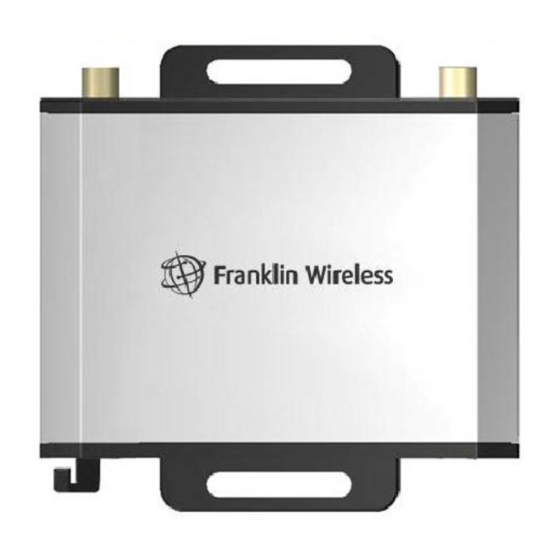

Franklin Wireless S600 Manual

M600 series

S600 User Manual

Table of Contents

Need help?

Do you have a question about the S600 and is the answer not in the manual?

Page 1 S600 User Manual...
Page 2 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 3 RF connectors. The S600 can be used to test the performance of the module. Both the wired connection test (connect the module to the each equipment) and the wireless connection test (connect the module to the antennas) can be implemented.
Page 4 Figure-3. Configuration for Adjustment and Test of WIMAX mode 2. Diagram of connecting the S600 and the antenna Figure-4. Diagram of connecting the module and the antenna Table-1. Port definition of RF connectors Port definition S600 WiMAX Main CDMA Aux+GPS...
Page 5 Connect the devices and set up the test environment according to Figure-2 or Figure-3. Then connect the S600 to the PC through a Micro-USB to Type A USB cable.. When performing the wired connection test, connect the E5515C to the RF interface of the S600.. (For the connection method, see Figure-2 and Figure-3) When performing the wireless connection test, connect the antennas to the RF interface of the S600 directly.
