Summary of Contents for Lamona LAM3406

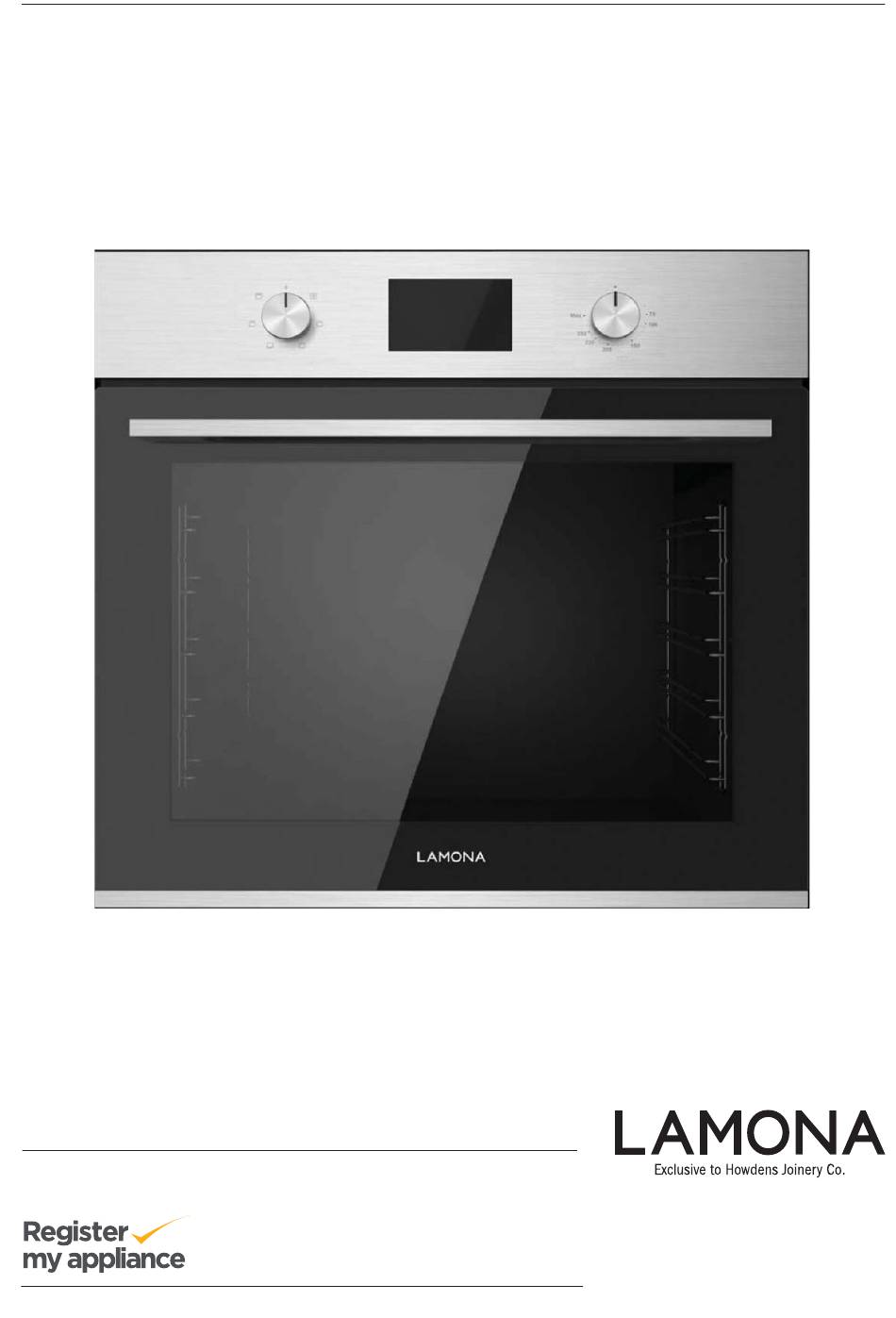

- Page 1 Built-In Single Fan Oven LAM3406 Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of oven. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the oven. Always follow the safety instructions. Keep this user manual within easy reach for future reference.
- Page 4 User manual LAM3406 Index Before using the oven & Safety Cooking table Oven cooking table General Cooking and baking advice Safety for children Safety when working with electricity Care and maintenance General information General information Cleaning the control panel Oven layout...
-
Page 5: General Safety
LAMONA Appliances Before using the Oven • Make sure that you have removed all packaging, wrappings, stickers and film from the oven's surface (see page 10). • It is recommended that you clean and wash the oven's surface before using for the first time. - Page 6 User manual LAM3406 WARNING FIRE RISK: Do not place aluminium foil, baking trays or cook on the base of this oven, doing so will cause permanent damage to your appliance and cabinetry with the potential risk of fire. • Keep all ventilation slots clear of obstructions, as this may cause premature failure of the oven element.
-
Page 7: Safety For Children
Safety for children • Electrical products can be dangerous to children under 8 year of age. • Keep children away from the product when it is operating and do not allow them to play with or near the product. • “CAUTION: accessible parts of the oven may become hot when the oven or grill is in use. - Page 8 User manual LAM3406 °C oven / grill function knob Main oven temperature control knob oven /grill temperature indicator Page _ 8 Exclusive to Howdens Joinery.co...
-
Page 9: Operating Modes
LAMONA Operating modes Operating modes or the ovens and grill are listed in this section. Please not der of operating modes av y deviate from the illustrations sho Lamp Defrosting Turns on the oven light. This will o this position. The automatically activate the cooling fan. -
Page 10: First Cleaning Of The Appliance
User manual LAM3406 Preparation First cleaning of the appliance Tips for saving energy 1. Remove all packaging materials. The following information will help you to use your 2. Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy: damp cloth or sponge and dry with a clean cloth and mild detergent. - Page 11 LAMONA Appliances How to operate the main oven and grill Setting the correct time How to use the Oven & Grill 1. Set thermostat knob to the desired temperature. 2. Set function knob to the required operating mode. 3. Close the oven door The oven heats up to the adjusted temperature and maintains it.
- Page 12 User manual LAM3406 Clock Programmer To Check time left: Press mode button Minute Minder (0.01 min - To Cancel: Press mode button x 1 time until Cook symbol is displayed. Touch the + or – buttons until alarm sounds and display shows 00.00.
-
Page 13: Delayed Start Cooking
LAMONA Appliances Delayed Start Cooking Key Lock How To Use The two timed cooking modes can be combined to Child Lock function is activated by touching Set create a delayed start cooking period. for a minimum of 5 seconds. From this moment on... -
Page 14: Oven Cooking Table
User manual LAM3406 Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the lowest shelf level. food, the quantity and your preferences of cooking. -
Page 15: Cooking And Baking Advice
LAMONA Appliances Cooking and baking advice Tips for baking cake Risk of scalding by hot steam! Take care when If the cake is too dry, increase the temperature opening the oven door as steam may escape. by 10°C and decrease the cooking time. -
Page 16: Care And Maintenance
User manual LAM3406 Care and maintenance General information Cleaning oven door glass Service life of the product will e end and the e cleaners or sharp oduct is metal scrapers for cleaning the oven door. They cleaned at regular intervals. - Page 17 Removing and cleaning wire racks 1- Remove the wire racks by pulling them in the direction of the arrows (see below) 2- To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
-
Page 18: Before Installation
User manual LAM3406 Installation Before installation The appliance is intended for installation in Howdens kitchen cabinets. The product should only be installed by suitably Surfaces, synthetic laminates and adhesives used must be heat resistant. The product must be installed in accordance with all local regulations. -
Page 19: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 20: Cooling Fan
User manual LAM3406 Your oven comes prefitted with a mains cable. Terminal If you need to change it: Neutral : Live: Brown 1. Open the terminal block cover with screwdriver. Earth: Green / 2. Pass the mains lead under the cable clamp and secure clamp with the screw over the outer cable insulation. - Page 21 LAMONA Appliances TECHNICAL INFORMATION General Voltage /Frequency 220-240 V ~ 50 Hz Total power consumption 2.1kW Fuse min. 13A Oven/Grill External dimensions (height / width / depth) 595 mm/595 mm/5 5mm Installation dimensions (height / width / depth) 585-595 mm/560 mm/min. 5 0 mm...
-
Page 22: Troubleshooting Guide
User manual LAM3406 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Food is being cooked with a high It is normal that steam escapes from food during Oven emits steam when it water content is in use. cooking. This is not a fault. -
Page 23: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 24 Notes www.howdens.com...
-
Page 25: Product Fiche
Product Fiche Commission Regulation (EU) No 65/2014 LAM340 Type of Oven Fan Oven 101.2 cavity class 0.85kWh/cycle electric cavity Number of cavities Product Information Commission Regulation (EU) No 66/2014 LAM340 Type of Oven Fan Oven Number of cavities 0.85kWh/cycle electric cavity 101.2 cavity Exclusive to Howdens Joinery.co... - Page 26 Product serial number (Place sticker here) ISSUE v...
