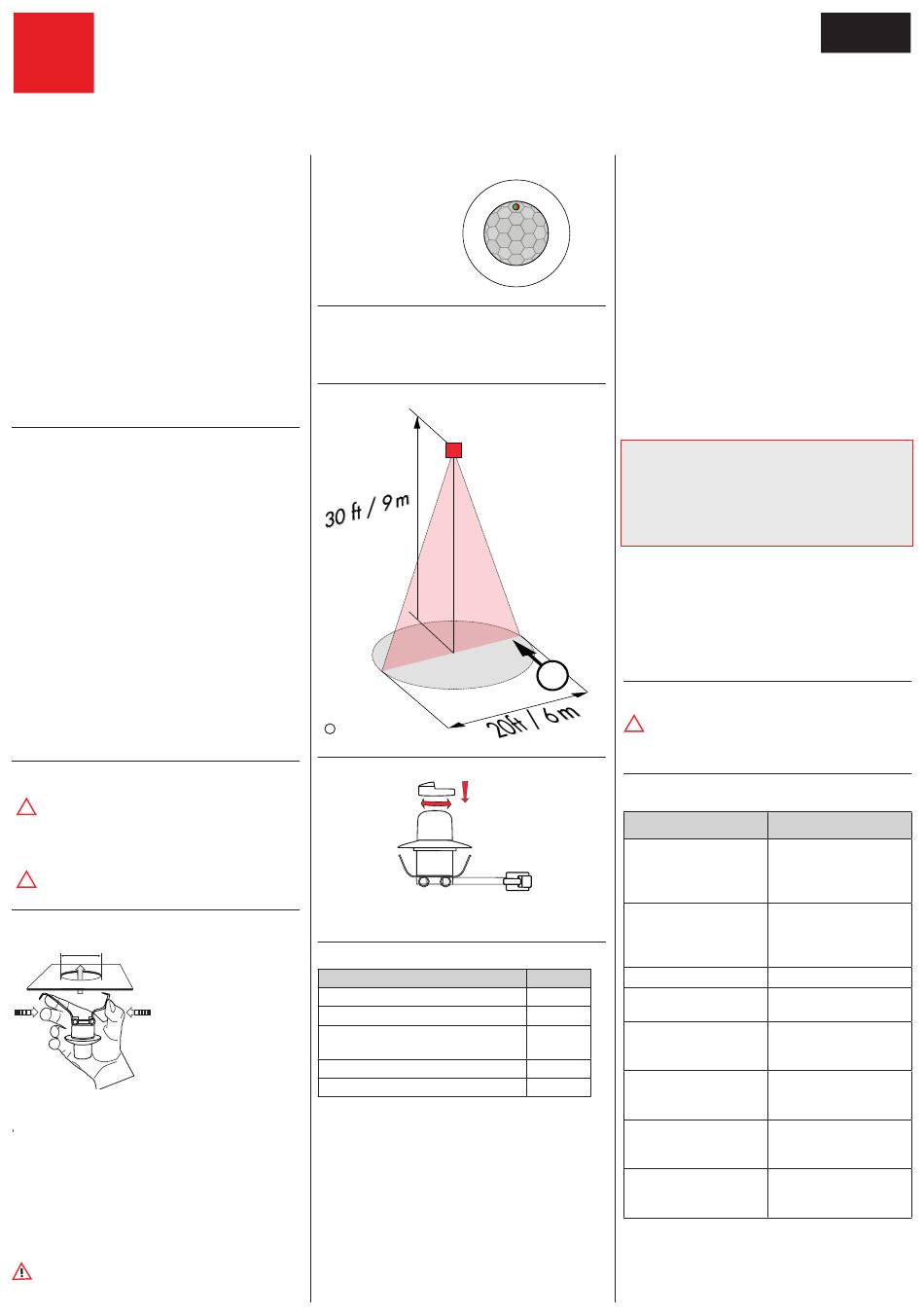

Installation and Operating Instruction for B.E.G. Controls - Occupancy sensor MINI-P-PP-A-GH-FC
1. Product information
• MINI high bay primary sensor for use with PP-
A-J and PP-1-J power packs or proprietary low
voltage system
• Designed for indoor locations - High Ceilings
• Up to 4 Secondary sensors may be connected
with a primary sensor to increase detection
coverage.
• Spring clips for quick and easy installation in
suspended ceilings and light fixtures
• 5-year limited warranty
• Masking blinds included
• All programmable features can be adjusted via
B.E.G. Controls smartphone IR-Adapter and
Android or iOS app.
• ROHS compliant
• Photocell included as a standard feature
2. Operation with power pack
PP-A-J and PP-1-J
The MINI with B.E.G. PP-A power pack detects
both motion and the ambient light level in the
room and then automates the lights according to
the parameters set by the installer and/or building
management. The integrated light sensor constantly
measures the ambient light and if the light level is
sufficient, the light will be switched off. If the ambient
light level is below the preset brightness level the
lights will be allowed to come on when the sensor
detects movement in the room.
When motion is detected in the room, the PP-A's
auxillary dry contact relay will send a signal to HVAC
or other systems indicating that the room is occupied.
With the integration of simple off the shelf, normally-
open momentary switches, the MINI-PP-A can be set to
operate in vacancy mode via the auto/manual switch
selector on the power pack. The switches can be used
to turn off the lighting before the preset time out period.
3. Safety information
Work should be carried out by qualified pro-
fessionals or by instructed persons under the
!
direction and supervision of qualified skilled
electrical personnel in accordance with electri-
cal regulations.
The device is not to be used to isolate other
!
equipment from the mains supply!
4. Mounting
Select sensor(s) mount-
≤1.3 in
ing location based on
≤ 34 mm
room dimensions and
sensor coverage pattern.
Avoid placing sensor(s)
less than four feet away
from heat and/or ven-
tilation sources. Avoid
placing sensor(s) where
view will be directed
outside of intended
controlled space, this to prevent outside sources from
activating sensor(s).
A circular opening 1.3 in/34 mm in diameter must be
made in the ceiling.
Having connected the cables in accordance with the
national and local electrical codes, connect the sensor
to the power pack using the RJ12 connector. Pass sen-
sor's RJ12 connector through ceiling opening. Next,
squeeze spring clips through ceiling opening. Sensor
should clip securely into place. (See Figure)
When using primary and secondary devices,
please mount the primary device at the place
with the least amount of natural light.
5. Position LEDs
LED 1 green/red
6. Self test cycle/Startup behavior
When power is first applied, the sensor enters an
initial 60 second self-test cycle. During this time the
device does not respond to movement and stays on.
7. Range
Walking across
1
8. Exclude sources of interference
To prevent false activation from external heat-emitt
sources, use blinds to mask sensor viewing angle.
9. Decription / Part No. / Accessory
Description
MINI-P-PP-A-GH-FC
MINI-S-PP-GH-FC
Remote control:
via B.E.G. Controls IR-Adapter
Power pack PP-A-J
Power pack PP-1-J
The required app for smartphones can be down-
loaded from the App Store for iOS smartphones and
Google Play Store for Android smartphones.
The manual for the B.E.G. Controls App can be
downloaded from www.begcontrols.com
Note: Remote only works with primary MINI-P-PP-A-
GH-FC sensor.
Note: Maximum distance between sensor and
remote - 24 ft/ 7.3 m
10. Technical data
Operating voltage:
1
Ambient temperature: -13°F-122°F/-25°C to +50°C
Protection: Suitable for indoor use and dry locations
Factory settings:
Note: Maximum mounting height for feasible day-
light control 16.4 ft./5 m.
Natural daylight contribution must be 2.5 times
the artificial light contribution at the sensor for the
controlled load to turn-off.
Recommended height
for mounting:
Range of coverage Ø: walking across 19.7 ft /6 m
Area of coverage:
Following settings can only be changed using the
B.E.G. Controls IR-Adapter for smartphones and app.
Brightness threshold: 2 - 100 fc/20 - 1000 Lux
Follow-up time:
Sensitivity:
Dimensions:
Technical data MINI-Secondary
Operating voltage:
Pulse output:
1
11. Manual switching
See manual of the power pack PP-A/PP-1: "PB
!
load" and "All off" (only PP-A)!
12. LED-functional indicators
LED function indicators
Red blinks once per
second during the
first 60 seconds after
RJ12
powering
Red blinks twice per
second during the
first 60 seconds after
powering
Part No. Red flashes
97184 Green blinks once per
second
97187
Red and green
92726
flash once in quick
succession
97020
Red and green blink
97036
together once every 4
seconds
Green is on for 4
seconds
Green flashes twice per
second for 5 seconds
USA-EN
24 V DC
only.
50 fc/500 Lux, 10 min.
30 ft / 9 m
360°
Load: 30 sec. - 30 min.
HVAC: 5 min. - 120 min.
MIN-LOW-MID-HIGH-MAX
H 1.93 in x Ø 1.77 in
H 49 x Ø 45 mm
24 V DC
Digital output
Process
Self-test cycle, unmodified
device
Self-test cycle, previously
modified device
Motion detected
Too bright detected
Remote control signal
received
Device operates in pulse
mode
Remote control signal
received but device is
locked
Device has just been
locked and can now be
double locked
