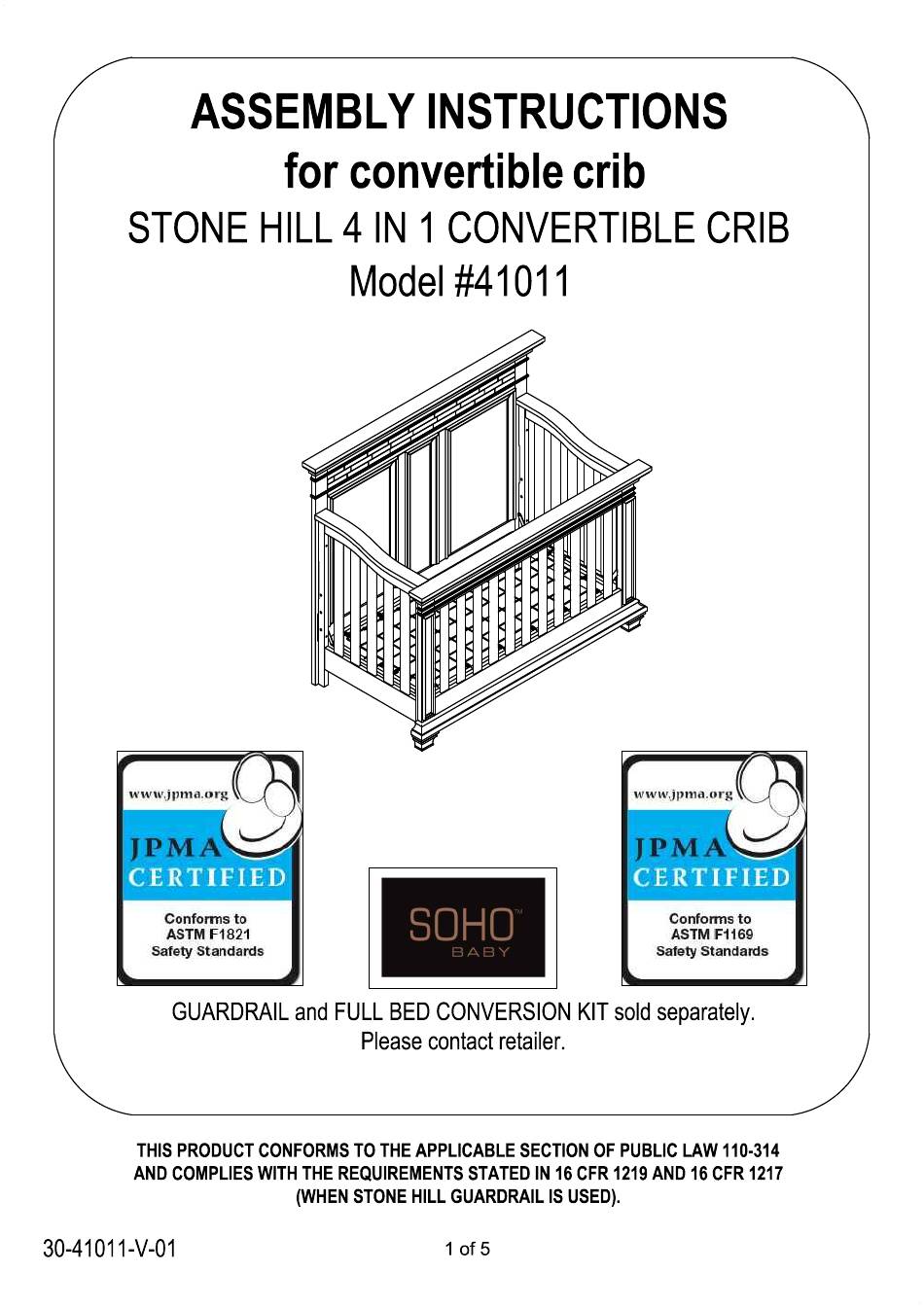

Summary of Contents for Soho 41011
- Page 3 STEP 1.2 - Insert Barrel nut (M) into holes in Stabilizer Bar. - Connect Stabilizer Bar to the Sideboard using (4 pcs) Allenbolt 2 3/4" [70 mm](G), Spring Washer (W) . - Tighten all Bolts with Allenkey(N). 30-41011-V-01 3 of 5...
- Page 10 - Move Mattress Spring to the lowest position as shown in FIG.2. - Attach the Allenbolt 1"(25mm) (K), Spring Washer (W) and Nut 3/4"(20 mm) (L) on the lowest hole of Sideboard. - Final position as shown in FIG.3. 30-41011-V-01...
