ASSEMBLY INSTRUCTIONS

for Guard Rail

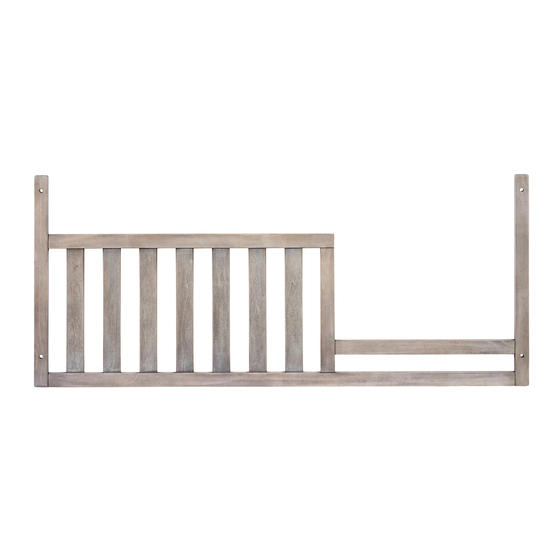

HAMPTON 4 IN 1 CONVERTIBLE CRIB
Model #43095
30-43095-V-01
1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43095 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SOHO BABY 43095

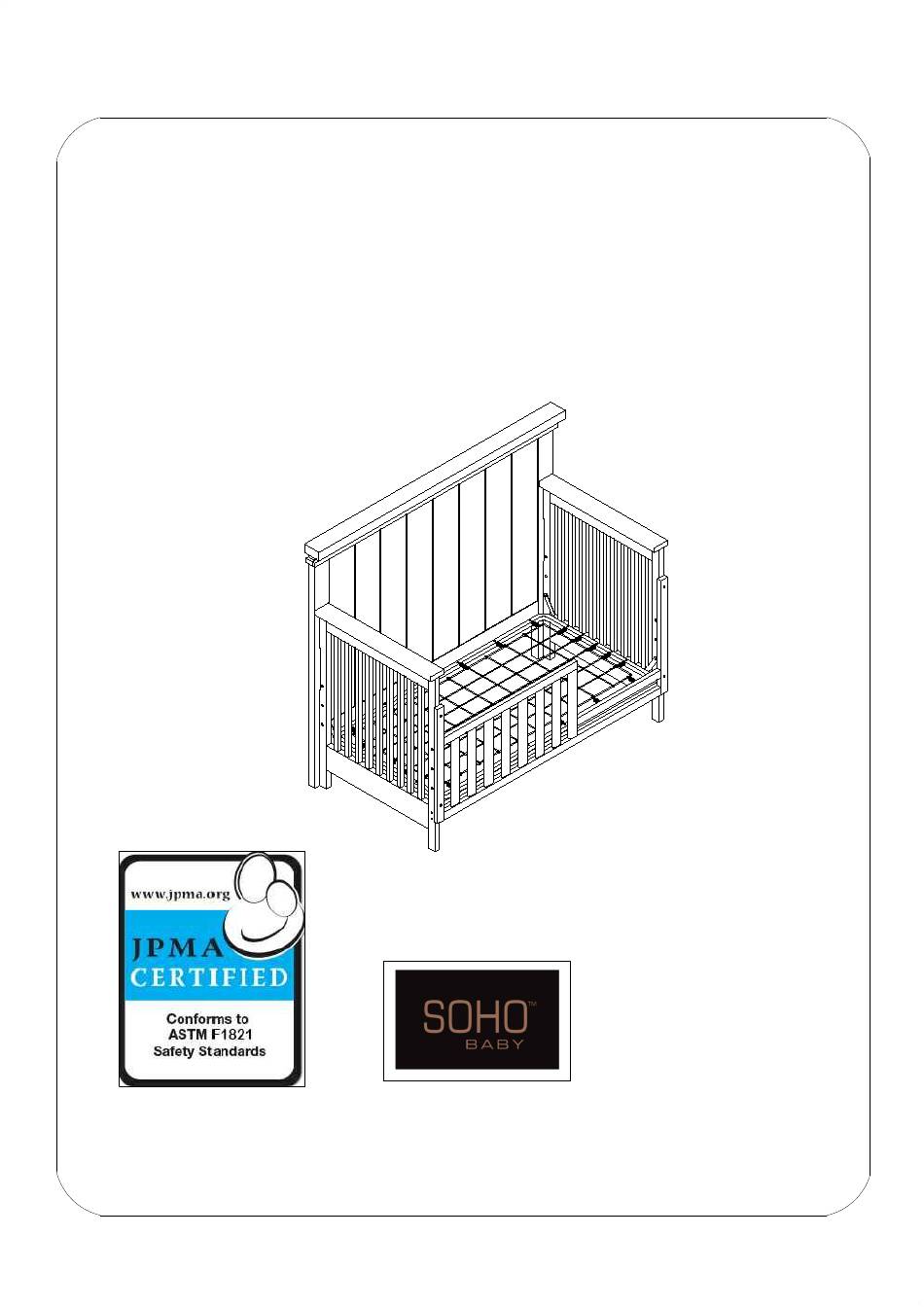

  • Page 1 ASSEMBLY INSTRUCTIONS for Guard Rail HAMPTON 4 IN 1 CONVERTIBLE CRIB Model #43095 30-43095-V-01 1 of 5...
  • Page 2 (E) Allen key (2 pcs) (length may vary) (C) Spring washer (4 pcs) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 30-43095-V-01 2 of 5...
  • Page 3 STEP 1 " UNINSTALL FOOTBOARD " THIS STEP REQUIRES: E. Allen key (1 pc) Step 1: Remove Footboard by unscrewing (4pcs) Allen Bolts as shown. 30-43095-V-01 3 of 5...
  • Page 4 - Move Mattress spring to the lowest position as shown in FIG.2. - Attach the Allenbolt 1"(25 mm)(K), Spring washer (w) and Nut 3/4"(20 mm)(L) on the lowest hole of Sideboard. -Final position as shown in FIG.3. 30-43095-V-01 4 of 5...
  • Page 5 - Insert the Allenbolt 2"(50 mm) (B) & spring washer (C) through the top and bottom hole in the crib sideboard and guardrail and connect with nut 3/4" (20 mm) (D). Tighten all bolts and nuts with Allenkey (E). Assembly complete. Thank you! 30-43095-V-01 5 of 5...
  • Page 6 ! “CAUTION : ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4 INCHES (69 CM) BY 51 5/8 INCHES (131 CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15 CM). THE DIMENSIONS OF THE MATTRESS SHALL BE TAKEN FROM SEAM TO SEAM OR EDGE TO EDGE WHERE APPROPRIATE.”...
  • Page 7 ! WARNING ENTRAPMENT/STRANGULATION HAZARD • INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT AND STRANGULATION. • FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • NEVER USE BED WITH CHILDREN UNDER 15 MONTHS. •...
