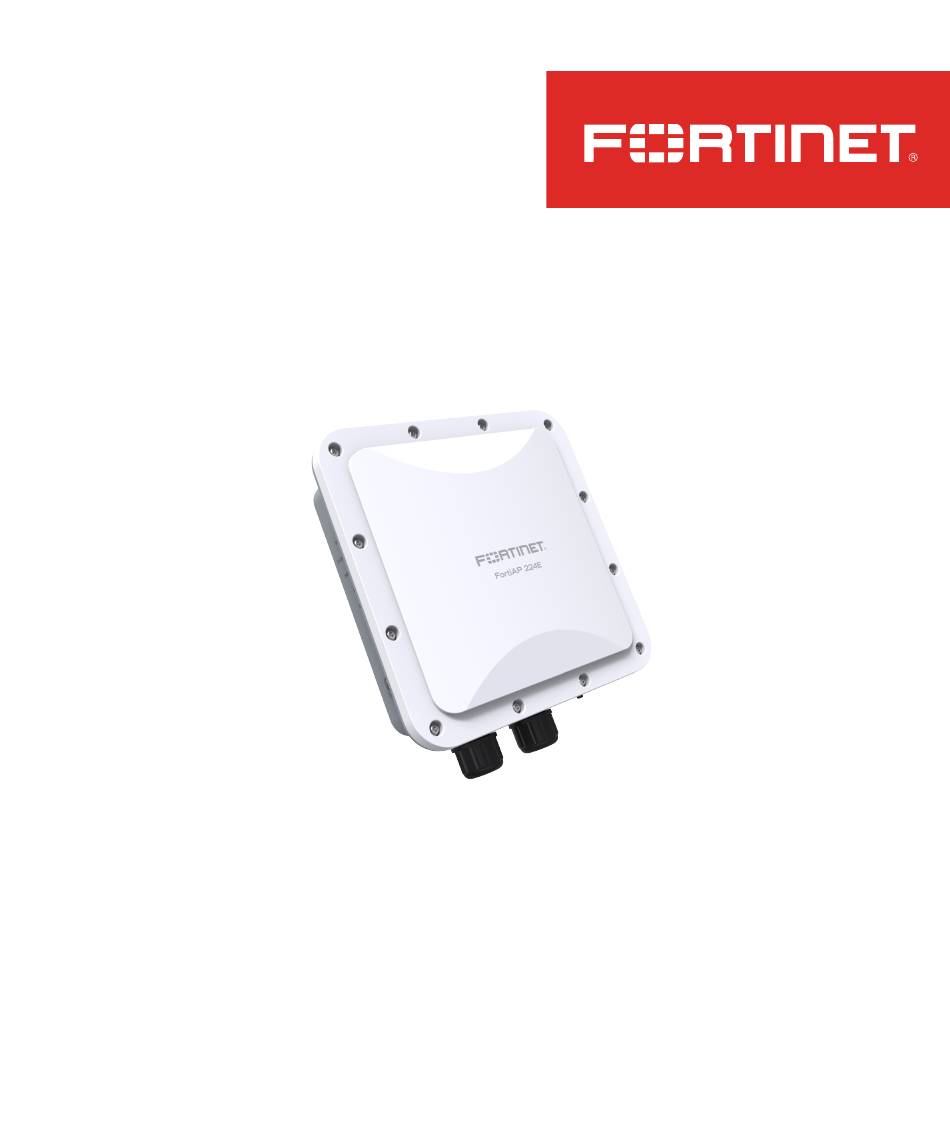

FortiAP 224E
QuickStart Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiAP 224E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fortinet FortiAP 224E

Summary of Contents for Fortinet FortiAP 224E

  • Page 1 FortiAP 224E QuickStart Guide...
  • Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features, or development, and circumstances may change such that any forward-looking statements herein are not accurate.

  • Page 3: Cautions And Warnings

    Cautions and Warnings Environmental specifications Ambient operating temperature: 0C to 40C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude). Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...

  • Page 4: Box Includes

    Box Includes FortiAP device QuickStart Guide Pole Mount Straps (X2), Pole and Wall Mounting Kits: Wall Mount Bracket, and Machine Pan M4x10L screws (X4), Machine pan Grounding Cable 6M M5x10L screw, Self-Tapping Steel Pan P3x20L (X4), and Plastic Conical wall anchors (X4)

  • Page 5: Before You Begin

    Write down details typically provided by your network administrator or ISP. Static IP address IP address ___________________ Subnet Mask ___________________ Default Gateway ___________________ Primary/Secondary DNS ___________________ DHCP It is normal to not require a hostname, but your ISP might require it. Hostname ___________________ QuickStart Guide Video https://video.fortinet.com/video/177/ fortigate-and-fortiap...
  • Page 6 Device Guide FortiAP 224E - Device Front...
  • Page 7 FortiAP 224E - Device Rear...
  • Page 8 FortiAP 224E - Device Side (LEDs) 1: Power Green: System is ready : Power o Amber: System is booting up : System booted 2: Small form-factor pluggable (SFP) Green: Connect to optical port Blinking: Optical activity present : No activity or power o Amber: Reserved 3: 2.4GHz WLAN...
  • Page 9 Œ   Installation Mount on Wall...
  • Page 10 Mount on Pole...
  • Page 11 Rotating Mount Fasten the Hold Bracket (1) and the Bracket Sheets (2) to the base using the M8x32L Hexagon screw bolts and washers: Fasten the Pole Bracket & Wall Bracket to the pole using supplied M8x160L Hexagon screw bolts (5 and 6):...
  • Page 12 Fasten the Pole Bracket to the Wall Bracket by securing the supplied M8x32L Hexagon screw bolts (7, 8, and 9):...
  • Page 13 To adjust the unit to tilt up and down:...
  • Page 14 To adjust the unit to tilt left and right:...
  • Page 15 Cabling The unit requires 48V DC power, which is delivered by the PoE injector over a straight-through Ethernet cable. To install the weatherproof connector 1. Unscrew the coupling ring from the waterproof connector, remove the sealing gland, and thread the RJ-45 plug through the connector components.

  • Page 16: Basic Connection

      Basic Connection Network Core/FortiGate WAN/POE Connect the FortiAP device to a FortiGate controller or an Internet connection. Ensure that the Power over Ethernet (PoE) cable is connected to an applicable port on your FortiGate device or PoE injector. Caution: Adequate grounding must be provided to the FortiAP unit and the PoE injector, in compliance with your local electrical code or regulations.
  • Page 17 Ž   FortiAP Setup Deployment through a FortiGate Ensure that you are running the Fortinet recommended version of support.fortinet.com software. Please check for more information. If FortiGate is on the same network as the FortiAP: 1. Use FortiGate to preauthorize the FortiAP device.
  • Page 18 If FortiGate is not on the same network as the FortiAP: 1. Log into FortiAP directly (IP address: 192.168.1.2) with username admin and no password, and specify the IP address of the controlling FortiGate. 2. Connect to FortiAP via the CLI using the instructions in the “Connecting to FortiAP CLI”...
  • Page 19 Cautions and Warnings Environmental specifications Ambient operating temperature: -30C to 60C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...
  • Page 20 Si vous avez besoin de plus d'aide à l'achat de l'alimentation et le fil d'entrée PoE, s'il vous plaît communiquer avec Fortinet, Inc. The Console port is not intended to be connected to the computer after the outdoor installation is...

  • Page 21: Regulatory Notices

    La porte Console n’est pas destinée à être raccordée à l’ordinateur après l’installation extérieure faite. This equipment is to be connected only to PoE networks (LPS) and maybe installed outdoors except the Surge Protector, the PoE Injector and its external LPS Power Supply which are intended for indoor installation only.
  • Page 22 WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 32 cm between the radiator and your body.
  • Page 23 Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 32 cm between the radiator & your body.
  • Page 24 Conformément à la réglementation d'ISED, cet émetteur radio peut fonctionner seulement avec une antenne d’un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par ISED. Dans le but de réduire les risques de brouillage radioélectrique aux autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité...
  • Page 25 Gain (dBi) Antenna Antenna 5GHz Type Connector 2.4GHz Band Band Band Band Metal RFMTA400809MMLB901 MMCX Antenna Metal MMCX RFMTA400811MMLB901 Antenna Metal MMCX RFMTA400814MM5B901 Antenna Metal MMCX RFMTA400816MM5B901 Antenna MMCX RFPCA381017MMAB702 Antenna Professional Installation Instruction 1. Installation personnel This product is designed for specific application and needs to be installed by qualified personnel who has RF and related rule knowledge.
  • Page 26 3. Antenna(s) Use only the antenna(s) that have been approved by the manufacturer. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power that may lead to the violation of FCC/ISED limit and is prohibited. 4. Warning Please carefully select the installation position and ensure that the final output power does not exceed the limit set forth in relevant rules.

  • Page 27: European Conformity (Ce) - Eu

    This declaration is only valid for Fortinet products (including, combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply...
  • Page 28 Deutsch Dieses Produkt entspricht der Richtlinie 2014/53/EU. Eesti See toode vastab direktiivile 2014/53/EL. English This product is in compliance with Directive 2014/53/EU. Español Este producto cumple con la Directiva 2014/53/UE. Ελληνική Το προϊόν α υτ ό συμμορφ ώ νετ α ι με τ ην Οδηγία 2014/53/ΕΕ. Français Ce produit est conforme à...
  • Page 29 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available at the link below: https://site.fortinet.com/ProductRegulatory/EU The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range in...
  • Page 31 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
