Summary of Contents for Morrell SW-UNM-16FE1GC

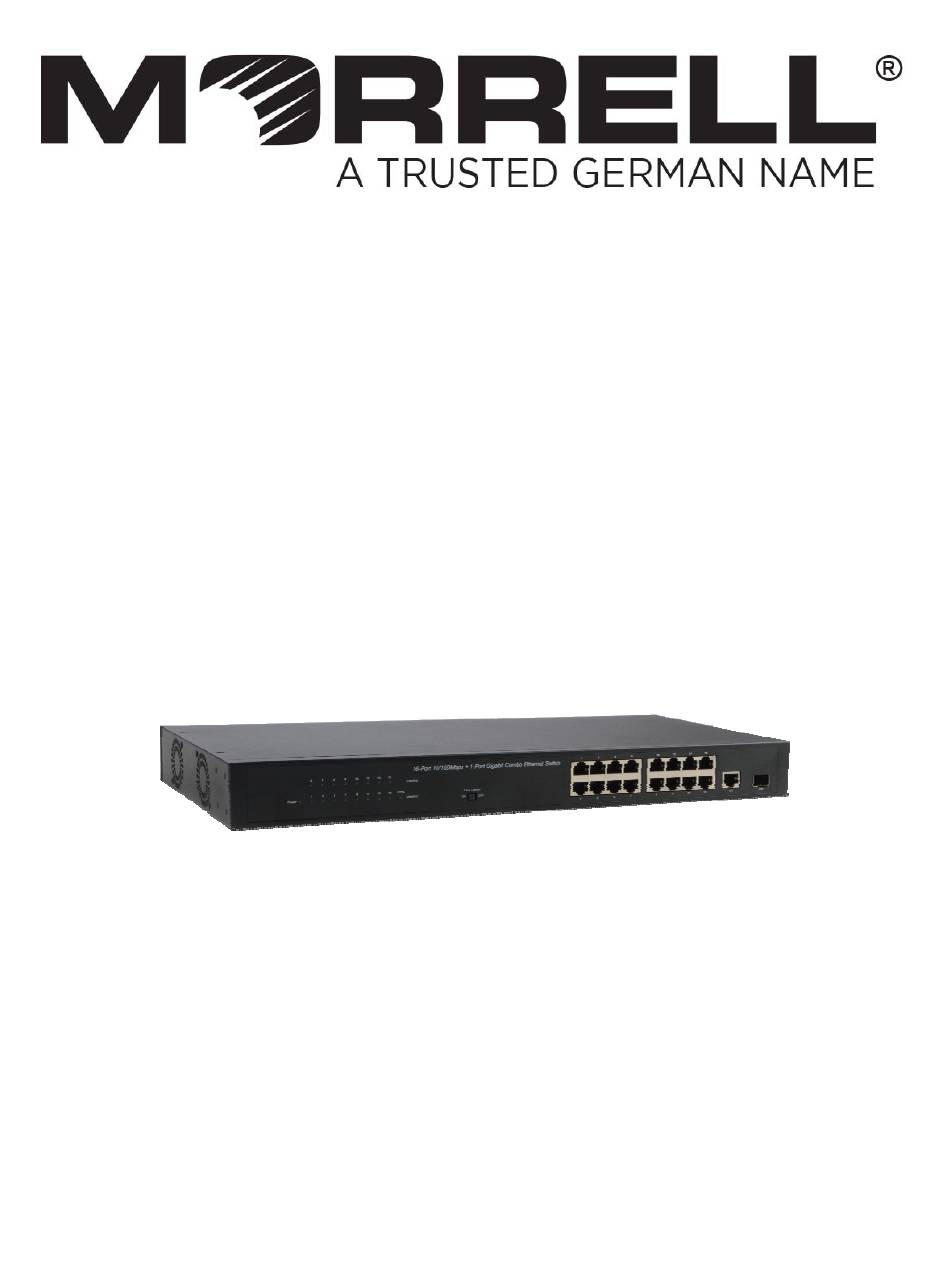

- Page 1 SW-UNM-16FE1GC 16-Port 10/100Mbps + 1-Port Gigabit Combo Unmanaged Ethernet Switch User Manual Version 1.0 | 4/25/2015...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Product Introduction ....................2 1.1 Product Overview ......................2 1.2 Features ..........................2 1.3 Package Contents ......................2 Chapter 2 External Component Description ................. 4 2.1 Front Panel ........................4 2.2 Rear Panel ........................5 Chapter 3 Installing and Connecting the Switch .............. -
Page 3: Chapter 1 Product Introduction

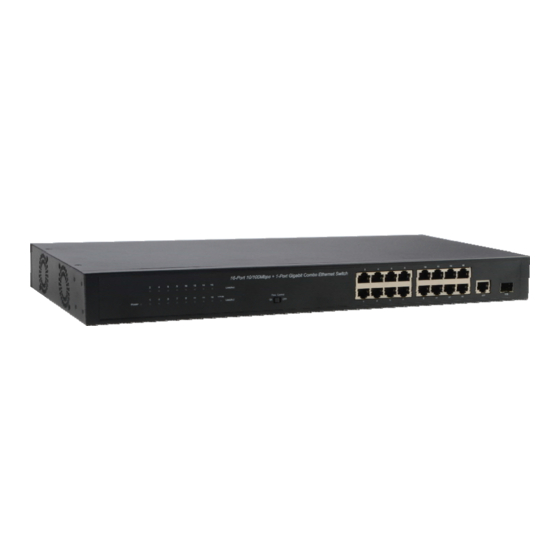

Chapter 1 Product Introduction Congratulations on your purchasing of the Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product 1.1 Product Overview This is a 16-Port 10/100Mbps + 1-Port Gigabit Combo Ethernet Switch, provides sixteen 10/100Mbps self-adaption RJ45 ports, plus one alternative gigabit port --- one 10/100/1000Mbps RJ45 port and one 100/1000Mbps SFP optical port, it can be used to link bandwidth higher upstream equipment. - Page 4 One Ethernet Switch One set of installation components One AC power cord One User Manual...
-
Page 5: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators, 16 10/100Mbps RJ-45 ports, 1 10/100/1000Mbps RJ-45 port, 1 SFP port and a flow control switch shown as below: Flow control switch: Designed to Open or close flow control function. -
Page 6: Rear Panel
The following chart shows the LED indicators of the Switch along with explanation of each indicator. STATUS STATUS DESCRIPTION Power On Power Power Off A device is connected to the port Link/Act Flashing Sending or receiving data 1~16 17T/S A device is disconnected to the port 2.2 Rear Panel The rear panel of the Switch contains AC power connector and Grounding Terminal shown as below. -
Page 7: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 8: Power On The Switch
use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. 3.1.3 Power on the Switch The Switch is powered on by the AC 100~240V 50/60Hz internal high-performance power supply. Please follow the next tips to connect: AC Electrical Outlet: It is recommended to use single-phase three-wire receptacle with neutral outlet or multifunctional computer professional receptacle. -
Page 9: Appendix: Technical Specifications
Appendix: Technical Specifications SPEC IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, Standards IEEE802.3az 10BASE-T: UTP category 3,5 cable (maximum 100m) Network Media 100BASE-TX: UTP category 3,5 cable (maximum 100m) (Cable) 1000Base-T: UTP category 5e cable (maximum 100m) 16 x 10/100Mbps Auto-Negotiation ports Number of Ports 1 x 10/100/1000Mbps Auto-Negotiation port 1 x 1000Mbps SFP port... - Page 10 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
