Summary of Contents for Contest PIXXEN PIX9W33

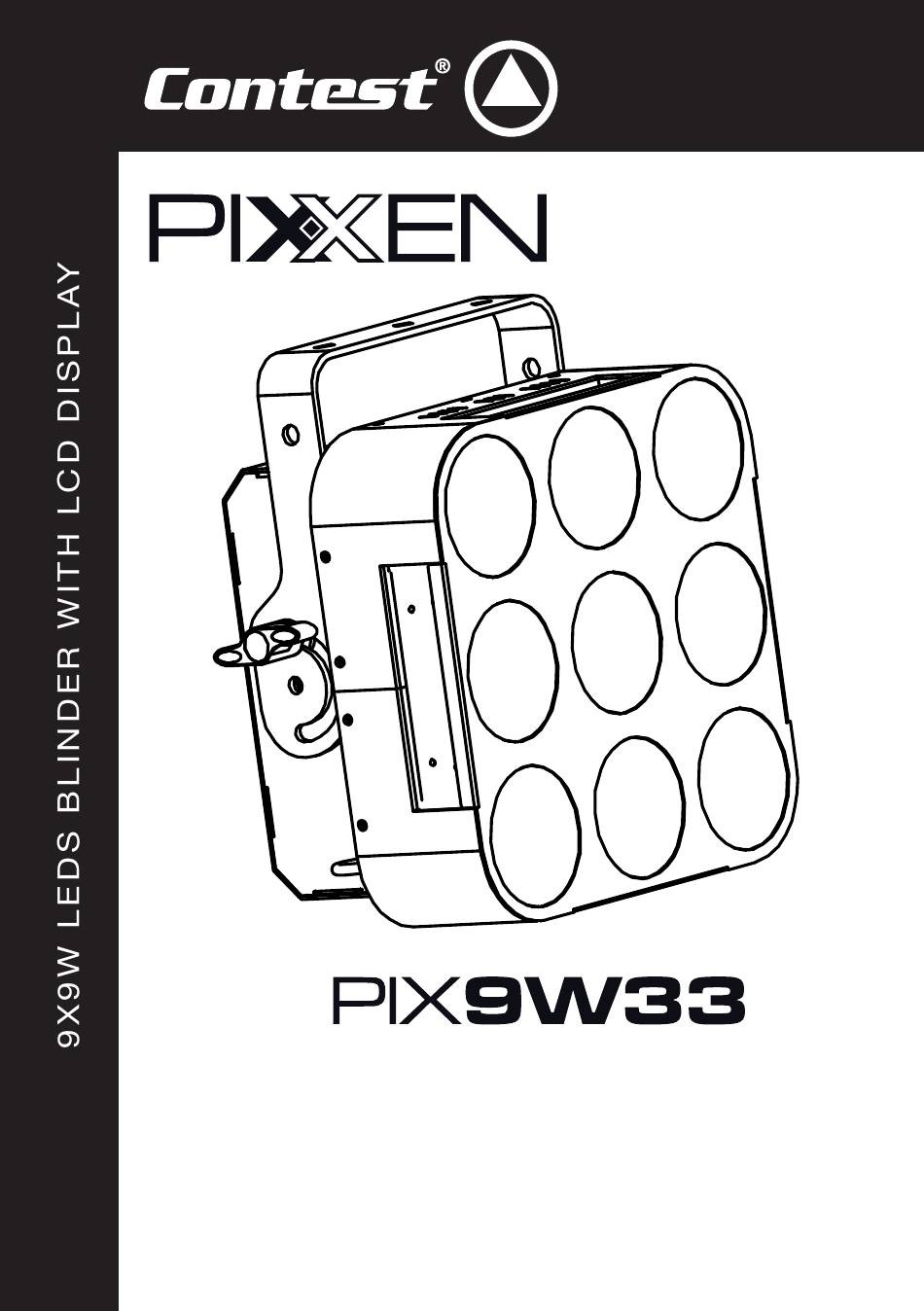

- Page 1 USER GUIDE 10133 - December 2013 Version 1.12...
-
Page 2: Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 PIX9W33 - 9x9W LEDs blinder with LCD display English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 4: Main Characteristics
PIX9W33 - 9x9W LEDs blinder with LCD display English 2 - Main characteristics This projector is equipped with 9x9W tricolour LEDs with an optical system designed to focus beams and have more impact. Even though the PIX9W33 is a blinder -designed to create blinding flash effects, its incredible color rendering and brightness can be put to profit for ambient lighting or decoration. - Page 5 PIX9W33 - 9x9W LEDs blinder with LCD display English 4 - Description Power input socket Display Allows you to plug the projector. This intuitive display allows you to configure your projector. Please make sure the voltage is in adequation with the product Please refer to the next paragraphs for more details about the indications.
-
Page 6: Internal Menu
PIX9W33 - 9x9W LEDs blinder with LCD display English 5 - Internal menu 5.1 - Submenus and functions MODE ENTER UP and DOWN Action 1 : Colours and macros Fixed colours selection and sequences. 1 : Selection selection In this mode the LEDs change their colour at the same time. 2 : Speed 2 : Strobe or speed - If a colour has been selected pressing ENTER gives you access to strobe settings. - Page 7 PIX9W33 - 9x9W LEDs blinder with LCD display English 5.2 - Macros and colours details Cool white Orange Warm white Colour macro 1: step, with speed Yellow settings Colour macro 2: fade, with speed Green settings Cyan Colour macro 3: fade, with speed settings Blue Colour macro 4: fade, with speed...
- Page 8 PIX9W33 - 9x9W LEDs blinder with LCD display English 6 - The various DMX modes 6.1 - 2-channel mode CHANNEL 1 CHANNEL 2 DMX values Effect DMX values Effect 000 - 010 011 - 020 021 - 030 Orange 031 - 040 Yellow 041 - 051 Green...
- Page 9 PIX9W33 - 9x9W LEDs blinder with LCD display English 6.4 - Mode 5 canaux DMX values Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100% CHANNEL 4 000 - 255...
- Page 10 PIX9W33 - 9x9W LEDs blinder with LCD display English 6.6 - 27-channel mode Channel DMX values Function Channel 1 000 - 255 LED1 Red from 0 - 100% Channel 2 000 - 255 LED1 Green from 0 - 100% Channel 3 000 - 255 LED1 Blue from 0 - 100% Channel 25...
- Page 11 PIX9W33 - 9x9W LEDs blinder with LCD display English Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
