Summary of Contents for aurum AEC-9331BSD-SP8-WF

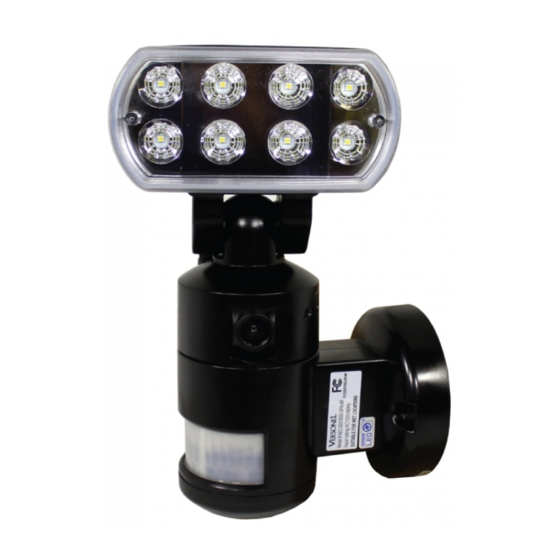

- Page 1 MODEL NO.:AEC-9331BSD-SP8-WF USE AND CARE GUIDE ROBOTIC LED FLOOD LIGHT WITH WIFI VIDEO CAMERA Windows 2000 / XP / Vista / 7 / MAC LISTED Micro Memory Card 1GB SD ~ 32GB SDHC (max) Class 4...
-
Page 2: Table Of Contents
Table of Contents Specifications ............5 Table of Contents............2 Safety Information............2 Nightwatcher Overview ..........6 Warranty.................3 Installation………………………………………………..What Is Operation-Programing your Nightwatcher.... 8-11 Covered………………… ……….…………………3 System Set Up (Link Camera with WIFI Network)12 What Is Not Images Functions..........18 Covered…………………………………………3 Troubleshooting………………………………………….. -
Page 3: Warranty
CAUTION: Do not immerse the light fixture in the water. Do not mount the light fixture against flammable surfaces. WARNING: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. -
Page 4: Pre-Installation
Pre-installation PLANNING INSTALLATION Never attempt to turn the light head by hand as this can damage the internal motor components. NOTE: Before attempting any installation or maintenance, ensure that the electrical supply is switched off and the circuit fuses removed or the circuit breaker is in the “OFF”... -
Page 5: Package Contents
Pre-installation (continued) PACKAGE CONTENTS NOTE: Nightwatcher Wi-Fi camera is designed to illuminate, record video and produce audio warnings when a person enters the detection area. While it will detect a moving heat source, there is no guarantee implied that it will provide total security or prevent illegal entry. -
Page 6: Nightwatcher Overview
Nightwatcher Overview Top View Camera 3 motion sensors Mode LED Indicator (hidden inside) Front View Bottom View Side View Camera angle adjustable downward by 25 degrees... - Page 7 Installing your Nightwatcher on a wall or DANGER: building surface - use cross bar Incorrect voltage may cause electric shock. If you are not sure, please contact your retailer. □ Attach the crossbar to junction box and fix by mounting screw (AA). CAUTION: □...
-
Page 8: Operation-Programing Your Nightwatcher
Operation □ This light is equipped with three motion sensors: □ Selecting working mode: There is a “Mode” LED zone 1 covers 60 degrees, zone 2 covers 100 indicator hidden inside the motion detector window degrees and zone 3 covers 60 degrees. There is a that will display different colored lights when 220 degree maximum total in all three zones. - Page 9 □ Before removing the micro card from the card slot, Camera LED indicator please press the mode button on the bottom of the □ The LED light next to the card compartment Nightwatcher for 3 seconds to stop the light from indicates the function status of the camera by using turning –...
- Page 10 Operation (continued) □ Recording: NOTE: You must press the “Mode” button on the bottom of the 1. Press the SET/REC button for 3 seconds, and you unit for 3 seconds to disable the rotation of the light. will hear a single beep. After the beep, start recording your message by talking into the microphone.
- Page 11 Viewing image by computer through a card reader. □ Press the push button on the bottom of the unit for 3 seconds to disable the unit. □ Open the waterproofed cover on the unit. □ To remove Micro card, press on micro card to eject then pull out.
-
Page 12: System Set Up (Link Camera With Wifi Network)12
Operation System Set Up (Link camera with WIFI Network) 1.1 Link camera with Smart phone/Tablet (AP Mode) □ Using smartphone or tablet to launch “Smart Guard HD” APP from APP store (iOS) or Google Play store (android). Download. □ Go to smart phone’s Wi-Fi setting and site survey UID “Smart Guard HD”. Connect “Smart Guard HD”... - Page 13 1.2 Link camera with home AP □ Link camera with home AP allows user to watch their camera from anywhere in the world as long as they have internet access. □ Touch the screen twice, it will appear 5 red function keys on the right side. □...
- Page 14 □ Select your home AP from the site survey menu. □ Enter Home AP password if is encrypted, and click “Join” LED indicator □ Click “OK” and exit the app. □ Wait for 60 seconds camera boot up again and link to WiFi AP router. If Join home AP connection is successful, LED indicator besides waterproof cover will display a RED light.
- Page 15 □ Launch “Smart Guard HD” APPs again and you will see video streaming from Smart Guard HD. Note: You may access your camera from anywhere as long as there is internet access. 1.3 Set Camera name and password: Select Wi-Fi Setting. You can change SSID name and password Select Wi-Fi Setting.
- Page 16 1.5 Frequency Setting: Set Power Frequency 1.6 PIR Notification: Send PIR Notification signal to your smartphone/tablet □ Click OFF: Not to send PIR Notification signal □ Click ON: To send PIR Notification signal and press “ ” for the selected camera. Click “Notification” that also can send □...
- Page 17 NOTE: If you click on ” PIR Notification” and there has no micro SD card inside the unit, when PIR is triggered, it will send PIR Notification signal continuously to your smartphone until no any 1.7 Set Description name: You can set your own name for this Description. □...
-
Page 18: 2.0 Images Functions
2.0 Images Functions 2.1 SNAP SHOT: Take one still picture for each snap shot and picture will be saved in smart phone. 2.2 RECORD □ Click “REC” icon to start Manual Record. The left bottom side will show Red Ball icon. Record a video at 20 seconds and video will be saved in smart phone. - Page 19 2.3.1 Camera SD card: View the recording files from SD card 2.3.2 Mobile Phone: View the recording files from smartphone 2.4 Light control: The user can click this Bulb Icon to change the light to be AUTO control or Manual control ...
- Page 20 1.5 SETTING: Please read the above point 1.1~1.7 2.6 Check APP version If there is SD card inside the product, the screen will show this icon If there has no SD card inside or can not read SD card, the screen will show this icon 1.7 Check APP version ...
- Page 21 Firmware Online Update NOTE: We have detected a new software. Please press Upgrade FW to start. Don't switch off camera and wait for approx 3 minutes until upgrade is completed. Please make sure your APP is the newest version. This upgrade will not change your network settings.
-
Page 22: 22Care And Cleaning
2.9 The speed-flow is shown on the right bottom corner of the screen When the network speed is getting slow or unstable, the screen will display “The video session would be ended in 4 minutes “. After 4 minutes, the screen will show “Camera disconnected”, press OK and it will go back to Camera List. 2.9 LED indication on the product AP Mode Flash slow in RED...
