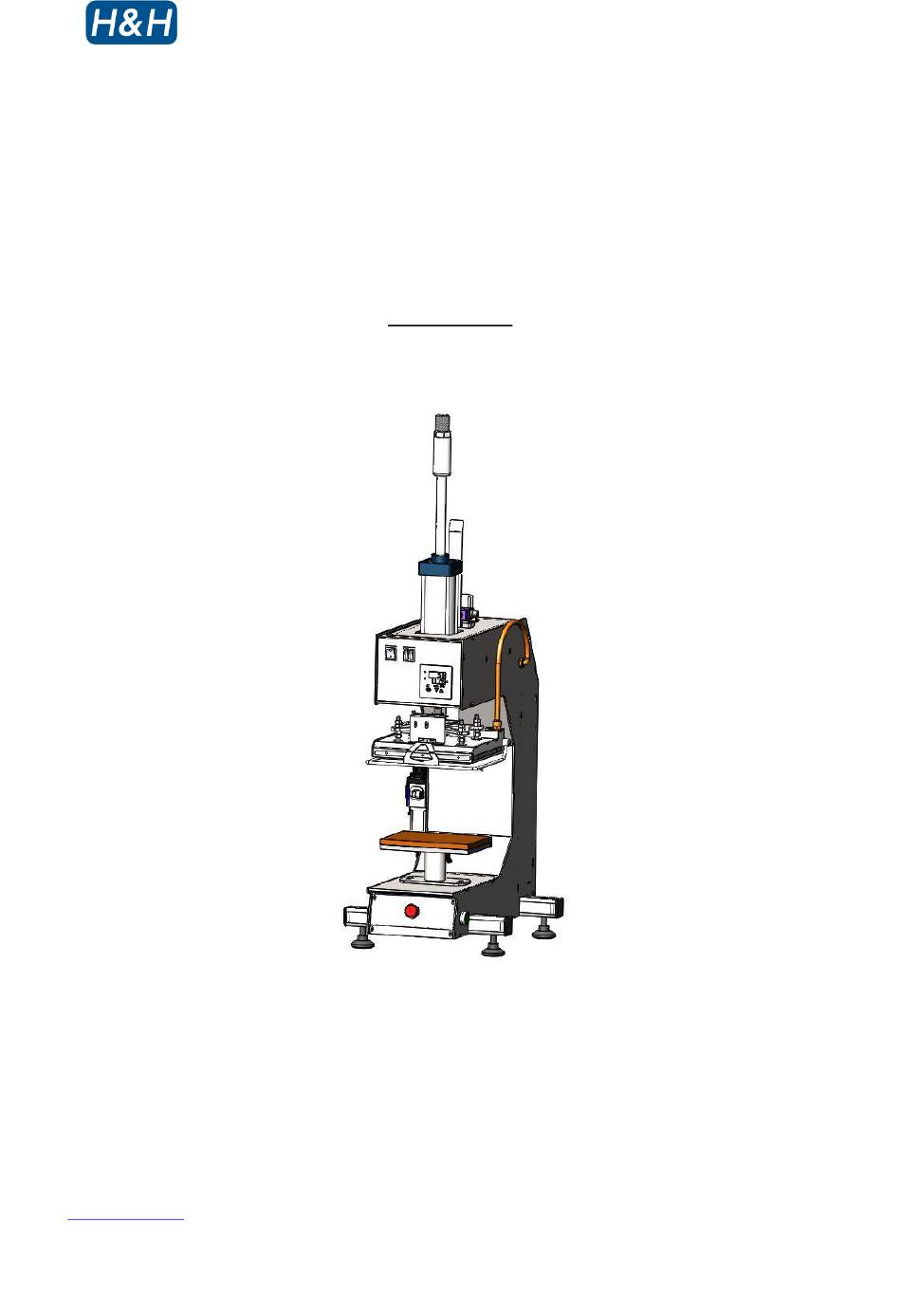

- Page 1 CS-652 Pneumatic Flat Press Machine Operation Manual is powered by H&H Asia Group Limited service@hh.com.hk t = 852.24813068 f = 852.24813727 Room 1117, 11/F, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, N.T., Hong Kong...
- Page 2 CS-652 operation manual Table of Contents Precautions with regard to Safety Name Plate Introduction Specifications Machine Components Control Console Preparation Before Main Power Connected Operation Mode Selection Machine Operation Machine Setting Control Panel Control Panel General Display Temperature Setting Adjustment...
- Page 3 CS-652 operation manual > Precautions with regard to Safety Please observe these safety tips for safe, efficient, an injury-free operation of your equipment. By strictly following all instruction contained in this manual you will certainly obtain an excellent performance from the use of this equipment for years.
- Page 4 CS-652 operation manual > Precautions with regard to Safety (cont.) issue 2 14.01.17 P.3 of 14...
- Page 5 CS-652 operation manual > Name Plate issue 2 14.01.17 P.4 of 14...
- Page 6 CS-652 operation manual > Introduction Thank you for your choosing of CS-652 which is manufactured by H&H. The pneumatic flat press machine described in this manual is one of the sophisticated machines for processing the flat press products in the market today. Built on digital control platform and designed for the professional users.
- Page 7 CS-652 operation manual > Specifications Model CS-652 Voltage 220 V, single phase Frequency 50/60 Hz Power Consumption 1000 W Compressed Air >0.4 Mpa Heat Temperature Range : Room Temperature~260 Press Duration 1~999 second, minute or hour Heat Press Size 8” X 6”...
- Page 8 CS-652 operation manual > Machine Components press pressure adjusting knot for the cylinder control console heating plate & pressing head safety protective bar lower platform machine base start buttons (must press both left & right buttons to activate) cancel button air filter and regulator issue 2 14.01.17...
- Page 9 CS-652 operation manual > Control Console Main Power Switch — On / Off the Main Power Led Light Switch — On / Off the Led Light Heater Switch — On / Off the Heater Control Panel — Set the heat temperature setting & press time issue 2 14.01.17...
- Page 10 CS-652 operation manual > Preparation Before Main Power Connected Compress air connection Since the heating plate will go up after compress air connected, the cable ties on the heating plate and the working table should be removed first. Main power connection The main power cable with plug is located at the back of the machine, plug into the main power supply socket.
- Page 11 CS-652 operation manual > Machine Operation After connected the main power supply, adjust the heating temperature and time, press pressure, and planning the machine operation method (push buttons/pedal). Then turn on the heater power, the temperature of the heating plate will go up gradually.
- Page 12 CS-652 operation manual > Machine Setting >> Control Panel PV : Field processing temperature SV : Set target temperature SET : Select different settings OUT1 : decrease the set point OUT2 : increase the set point >> Control Panel General Display General appearance of the control panel is as the following diagram.
- Page 13 CS-652 operation manual > Machine Setting (Cont.) >> Temperature Setting Adjustment Press the #3 (SET) once, the display will alike the below diagram. PV will show with “SH” and SV will show the preset temperature setting. You can press the OUT1 ”...
-
Page 14: Troubleshooting
CS-652 operation manual > Trouble Shooting Problem Cause solution Fault with power cord or plug Check the power connection Reset the breaker and investigate the Circuit breaker tripped system No power to Main power supply not switch on Switch on the main power supply... -
Page 15: Appendix A . Control Circuit Schematic Diagram
CS-652 operation manual Appendix A . Control Circuit Schematic Diagram +24V Cancel switch Safety Bar “On / Off” Right Foot-Switch “On / Off” Left Start button left Contactor Foot-Swi Contact Point tch “On Start button right / Off” Timer Solenoid...
