Summary of Contents for Wanco WI6000

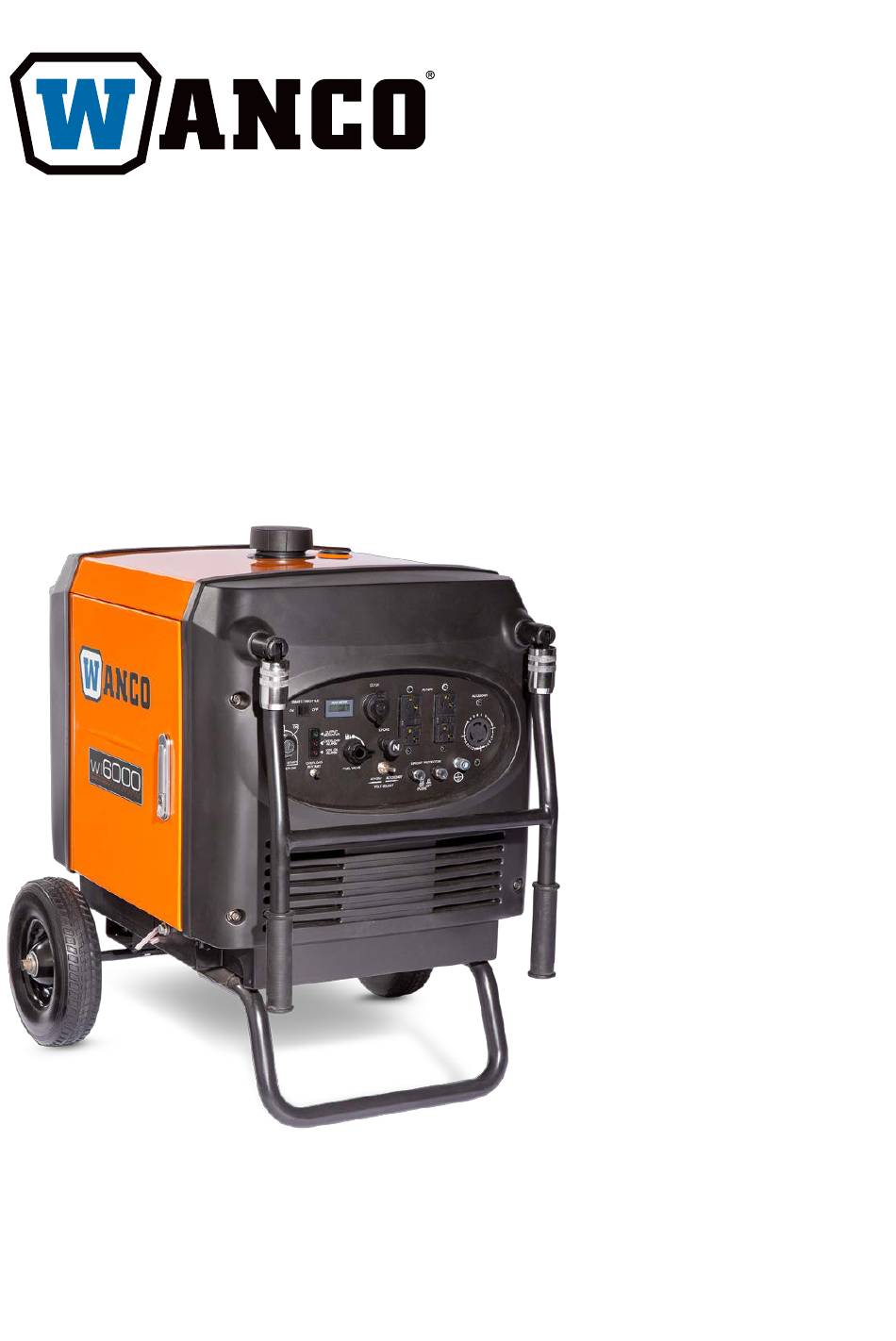

- Page 1 Inverter Series Generator Operator Manual Model WI6000 May 2017 P/N 220884 Rev. A...
- Page 3 PREFACE Thank you for purchasing a Wanco portable inverter generator set. This manual contains important safety and operating information - please read the complete manual before attempting to operate the generator. All information in this publication is based on the latest product information available at the time of approval for printing.
- Page 4 Page | 2...
-
Page 5: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS .......... 4 2. UNBOXING AND ASSEMBLY ........6 3. COMPONENT LOCATIONS ........7 4. PRE-OPERATION CHECK ........10 5. GENERATOR USE ........... 12 6. MAINTENANCE ............17 7. TRANSPORTING/STORAGE ........19 8. TROUBLESHOOTING ..........20 9. SPECIFICATIONS ............ 21 10. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS Exhaust gas contains invisible but poisonous carbon monoxide. Never run the generator in an enclosed area. Gasoline vapor is invisible but extremely flammable and explosive under certain conditions. Shut the engine OFF and allow the generator to cool for two minutes before refueling. Never refuel while the engine is running. - Page 7 Engine exhaust is very hot. Place the generator at least three feet or one meter away from buildings or other equipment during operation. The muffler becomes very hot during operation and remains hot for several minutes after stopping the engine. Be careful not to touch the muffler while it is hot. Let the engine cool before storing the generator indoors.
-
Page 8: Unboxing And Assembly
UNBOXING AND ASSEMBLY WI6000H Chassis- installed Support Bracket- (4) Front Stabilizer (2) Axle Assembly 10” Wheel Wheel Washer (4) Wheel Clip Assembly: Install the four support brackets and secure with bolts. Attach the front stabilizers to the chassis (below the handles) ... -
Page 9: Component Locations
COMPONENT LOCATIONS Page | 7... - Page 10 Control Panel HOURMETE GFCI OUTPUT RECEPTACLES INDICATOR SMART DC RECEPTACLE THROTTLE GROUND START THERMAL SWITCH CIRCUIT CHOKE BREAKERS VOLTAGE SELECT LOCKING SWITCH OVERLOAD RECEPTACLE RESET SWITCH FUEL VALVE Page | 8...
- Page 11 The number is engraved on the engine block left of the oil drain port (inside the service door). We recommend recording the following information in case you need to contact Wanco Technical Support: Model Number: WI______________ Serial Number: _________________...
-
Page 12: Pre-Operation Check
SJ or higher. Select the appropriate viscosity for the expected temperature in your area. 10W – 30 oil is suitable for most climates. DO NOT use synthetic oil in Wanco inverter generators. Use of synthetic oil can interfere with break-in and can lead to excessive oil consumption. - Page 13 Running the engine with insufficient oil can cause serious engine damage. The Low Oil Alarm Shutdown will automatically stop the engine before the oil level falls below a safe limit. However it is still advisable to visually inspect the oil level regularly. Fuel Use regular automotive gasoline with no more than 10% ethanol.
-
Page 14: Generator Use
GENERATOR USE Starting the Engine: When starting the engine after adding fuel for the first time, after long term storage or after running out of fuel, turn the fuel valve lever to the "ON" position, then wait for 10 to 20 seconds before starting the engine. - Page 15 “Backfeeding” creates a risk of severe shock for the user and for utility personnel who may be working on power lines. DO NOT connect a Wanco inverter generator to a building through a Double Throw Transfer Switch as it may damage the inverter. Only connect loads directly to the generator using extension cords.
- Page 16 Repeated overloading of that lights the overload indicator light (red) may shorten the service life of the generator. All Wanco inverter generators include GFCI-protected duplex receptacles. The GFCI protection will trip if there is any fault current to ground, which is usually caused by faulty appliances or water entering into electrical devices –If the GFCI...
- Page 17 Low-Oil Protection System The low oil protection system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the low oil alarm system will automatically shut down the engine. If the low oil alarm system shuts down the engine, the low oil alarm indicator light (red) will come on when you operate the starter and the engine will not run.
- Page 18 Even with suitable carburetor jetting, engine horsepower will decrease approximately 3.5% for each 1000 feet or 305 meter increase in altitude. The effect of altitude on the horsepower will be greater than this if the carburetor is not re-jetted. Be sure to restore the original jet before operating at lower elevation or engine damage due to an excessively lean fuel mixture may occur.
-
Page 19: Maintenance
MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep the generator in optimum operating condition. Shut off the engine before performing any maintenance. Maintenance Schedule REGULAR SERVICE PERIOD Perform at 3 MO 6 MO EACH every indicated monthly or operating hour 300H interval whichever occurs first 100H... - Page 20 Air Cleaner Service A dirty air cleaner will restrict airflow to the carburetor and allow dirt into the engine. Service more frequently when operating the generator in extremely dusty areas. Never run the generator without the air cleaner. Rapid engine wear may result.
-
Page 21: Transporting/Storage
TRANSPORTATION AND STORAGE If you transport the generator in a vehicle, drain all fuel from the generator. The generator should be secured to prevent damage when transporting. Do not operate the generator while it is on or in a vehicle. Take the generator away from the vehicle and use it in a well ventilated area. -
Page 22: Troubleshooting
Basic troubleshooting steps are outlined below. If your generator still does not perform correctly after confirming these steps, you should contact Wanco to locate an Authorized Service Dealer. If the engine will not start or will not run correctly, confirm the following: The fuel tank has plenty of gasoline and is free of debris and water. -
Page 23: Specifications
SPECIFICATIONS Generator Model WI6000 Rated frequency (Hz) Rated voltage (V) 120/240 Rated current (A) 45.8/22.9 Max current (A) 50/25 Rated output (W) 5500 Max output (W) 6000 DC Output 12V@5 amps Engine Type Displacement 389cc Starting System Recoil (Rope) and Electric (12V) -
Page 24: Wiring Diagrams
WIRING DIAGRAM WI6000 Page | 22...
