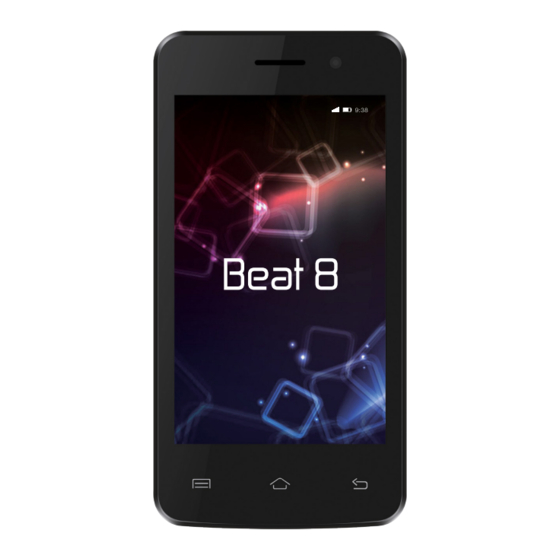

BEAT 8 - USER MANUAL
FCC ID: 2ADLJBEAT8
HAC Rating: M4 & T3
The device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Vortex Beat 8

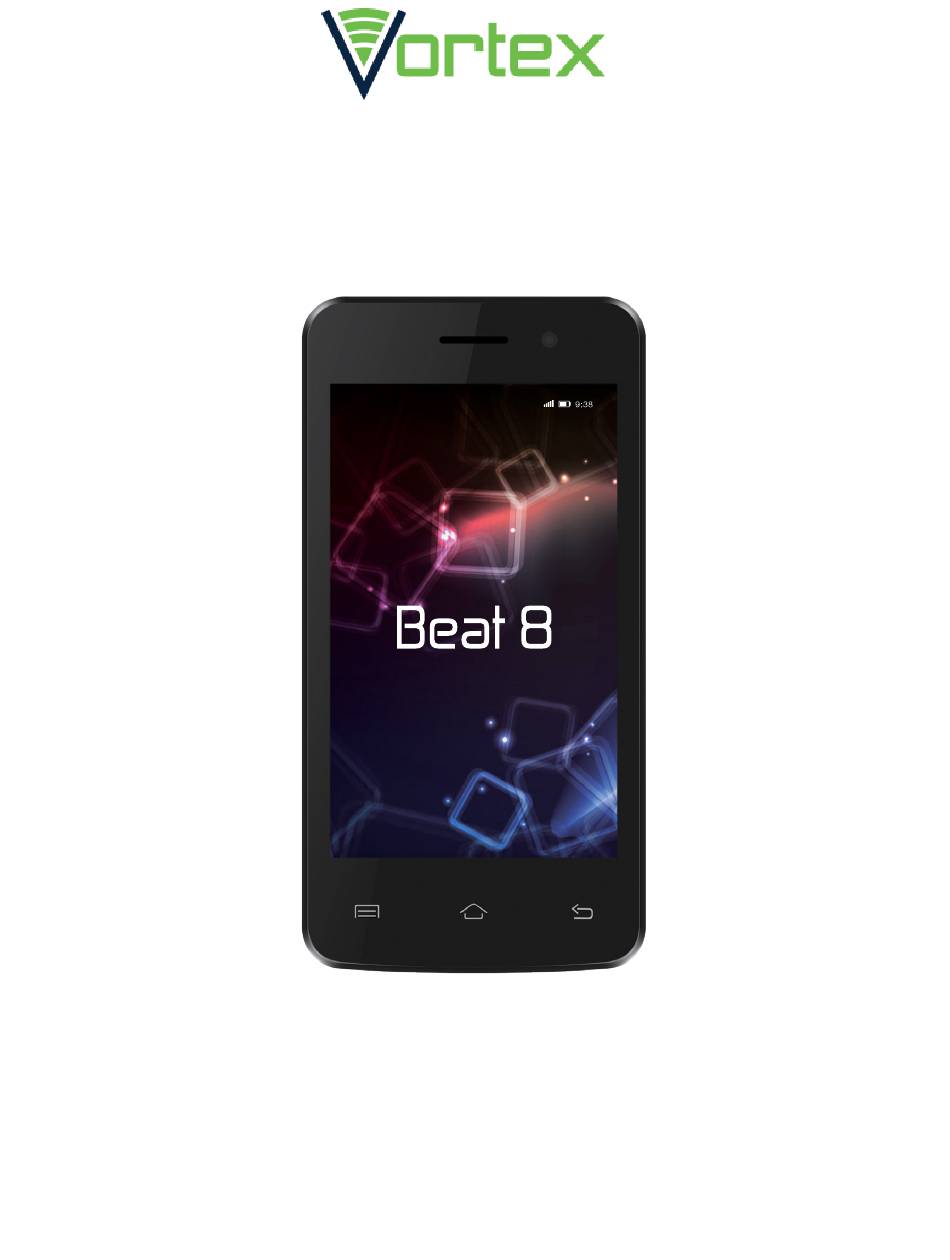

- Page 1 BEAT 8 - USER MANUAL FCC ID: 2ADLJBEAT8 HAC Rating: M4 & T3 The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 2: Making Repairs
PRECAUTIONS ON THE ROAD Using a device while driving is illegal in many countries. Please refrain from using your mobile while driving. NEAR SENSITIVE ELECTRONICS OR MEDICAL EQUIPMENT Don’t use your device near sensitive electronic equipment – particularly medical devices such as pacemakers –... -
Page 3: Parts And Buttons Of The Device
PARTS AND BUTTONS OF THE DEVICE Front camera Receiver Touch screen Volume button Power button Menu button Home button Back button Micro USB and charging port 10. Earphone jack 11. Rear camera 12. Flash 13. Speaker 14. Mic TOUCH BUTTONS button displays a menu of recently opened applications. -
Page 4: Getting Started
GETTING STARTED CHARGING THE BATTERY Your phone has a built in rechargeable Li ion battery 1. To charge, connect the AC power adapter to the micro USB jack on the top side of the phone. 2. The battery icon shows the battery and charging status. -
Page 5: Screen Unlock
SCREEN UNLOCK When the phone is in idle mode, press the “POWER BUTTON” once to wake up the phone. SCREEN UNLOCK: To unlock, swipe up as illustrated on the left: HOME SCREEN The home screen will look similar to the picture right. To switch between screens, simply slide your finger left or right across the display. -
Page 6: Settings Menu
Through this menu, it is possible to modify the functions such as brightness, auto rotation, Wi Fi, Bluetooth and more. SETTINGS MENU The settings menu allows you to adjust one System Configuration. To Change Settings: 1. Touch the “Settings” menu icon on the Application menu. The Settings menu will open. 2. -
Page 7: Making And Receiving Calls
INSERTING/REMOVING SIM CARDS 1. When phone is powered off insert a SIM card by removing the SIM cover as illustrated above, insert your finger in the indent located near the charging port and unclip the SIM cover, then insert the SIM card. Please take note of the direction of insertion following the diagram on the phone’s SIM port. -
Page 8: Software Keyboard
ANSWERING AND REJECTING CALLS To answer a call – Slide your finger to the blue Call Answer key. To reject a Call – Slide your finger to the Red Call End key. To message – touch the message icon. SOFTWARE KEYBOARD The phone has a software keyboard which automatically displays when you tap the place on screen where you want text or numbers to be entered, then simply start typing. -
Page 9: Touch Screen
TOUCH SCREEN The touch screen responds to finger touch. NOTE: • Don’t place any object on the touch screen for it may damage or crush the screen. SINGLE CLICK: Single click one icon to choose the icon or option you want. LONG PRESS: Press and hold an icon to delete or move an icon or app. -
Page 10: Web Browsing
MOBILE DATA AND INTERNET PLEASE NOTE: Cell Data may be turned “OFF” as a factory setting, to allow data to flow through your network provider please turn Cell Data “ON” either from your quick drop down menu or in > Settings > Cell Data, you will not be able to access the Internet when Cell Data is “OFF”... -
Page 11: Troubleshooting
BLUETOOTH 1. Select “Settings”, select Bluetooth from “OFF” to “ON”. 2. Search for the device you would like to pair with and select “PAIR”. 3. You will see a message “Connected Successfully”. CAMERA Touch the icon to enter camera mode and the interface is shown as follows: 1. -
Page 12: Restore Default Setting
Tap the application you want to close. A pop up window will be displayed. Tap “Stop” to close that application. POWER “OFF” / RESTART / RESET THE PHONE 1. Press and hold the power button for 5 seconds and the device will be powered down. 2. - Page 13 WWW.VORTEXCELLULAR.COM TWITTER.COM/VORTEXCELLULAR FACEBOOK.COM/VORTEXCELLULAR INSTAGRAM.COM/VORTEXCELLULAR...
