User Manual

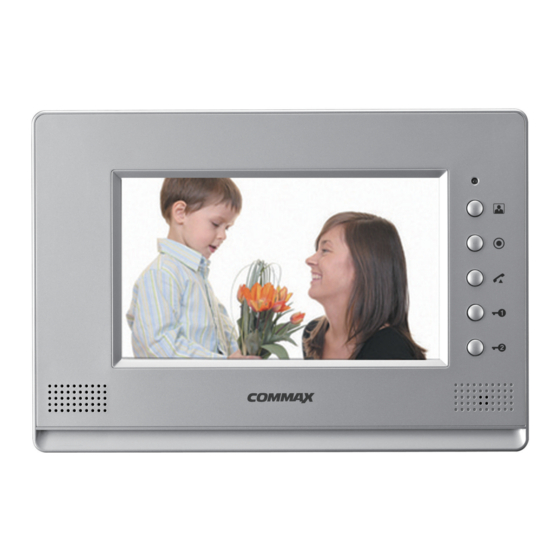

Color video door phone CDV-70AR3
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax CDV-70AR3
Summary of Contents for Commax CDV-70AR3
- Page 1 User Manual Color video door phone CDV-70AR3 • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
-
Page 2: Table Of Contents
Table of Contents 1. Warnings and Cautions................2 Part Names ....................3 Package Contents ..................3 Wiring and Connection Instructions............4 Installation ....................Operation ......................5 Settings ....................Specifications and Features..............7 1. Warnings and caution 1. Warnings and caution 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. -
Page 3: Part Names
On/Off & display LED Monitor Button Interphone Button Talk Button Door Release Button 2 Door Release Button Speaker Microphone CDV-70AR3 Wall Bracket Manual Volume Control Button Call Sound Control Button Menu Button Select Button Up & Down Button Power Switch... -
Page 4: Wiring And Connection Instructions
4. Wiring and Connection Instructions ▷ Polarity of the camera connector CDV-70AR3 1. Red: Talk (Audio) Adaptor Adaptor Power Power 2. Blue: GND Door 3. Yellow: Power (+12V) Release 4. White: Video 1 2 3 4 1 2 3 4... -
Page 5: Operation
6. Operation 1. Receiving a calling from visitor. ① When the call button is pressed by a visitor on the door camera, the melody shall be rung and visitors' image is shown on the screen (If you do not press the Talk Button, the display will be shown up for 30 seconds and turned off automatically). -
Page 6: Settings
The same rule applies to COMMAX interphone series. If you press the ‘2 Door Release’ button while in a monitoring mode, the 2 door is released. '2nd Door Release' only enabled for the 2nd door release function on camera 1 (only applicable for DRC-40KR2 model or other camera models with a built-in 2nd door release function). -
Page 7: Specifications And Features
② Press SELECT button to enter the menu ③ Set screen ratio using △ /▽ button. ④ Press the SELECT button. ※ WIDE : Full of the screen. Not actual ratio(4:3). Image is expanded according to LCD(WIDE LCD) ratio. ※ 4:3 : Image of 4:3 ratio(actual ratio for camera) without expansion is shown. (BLANK will be shown on the left and right of LCD screen) ※... - Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0770AR2010 Printed In Korea / 2016.07.104...
