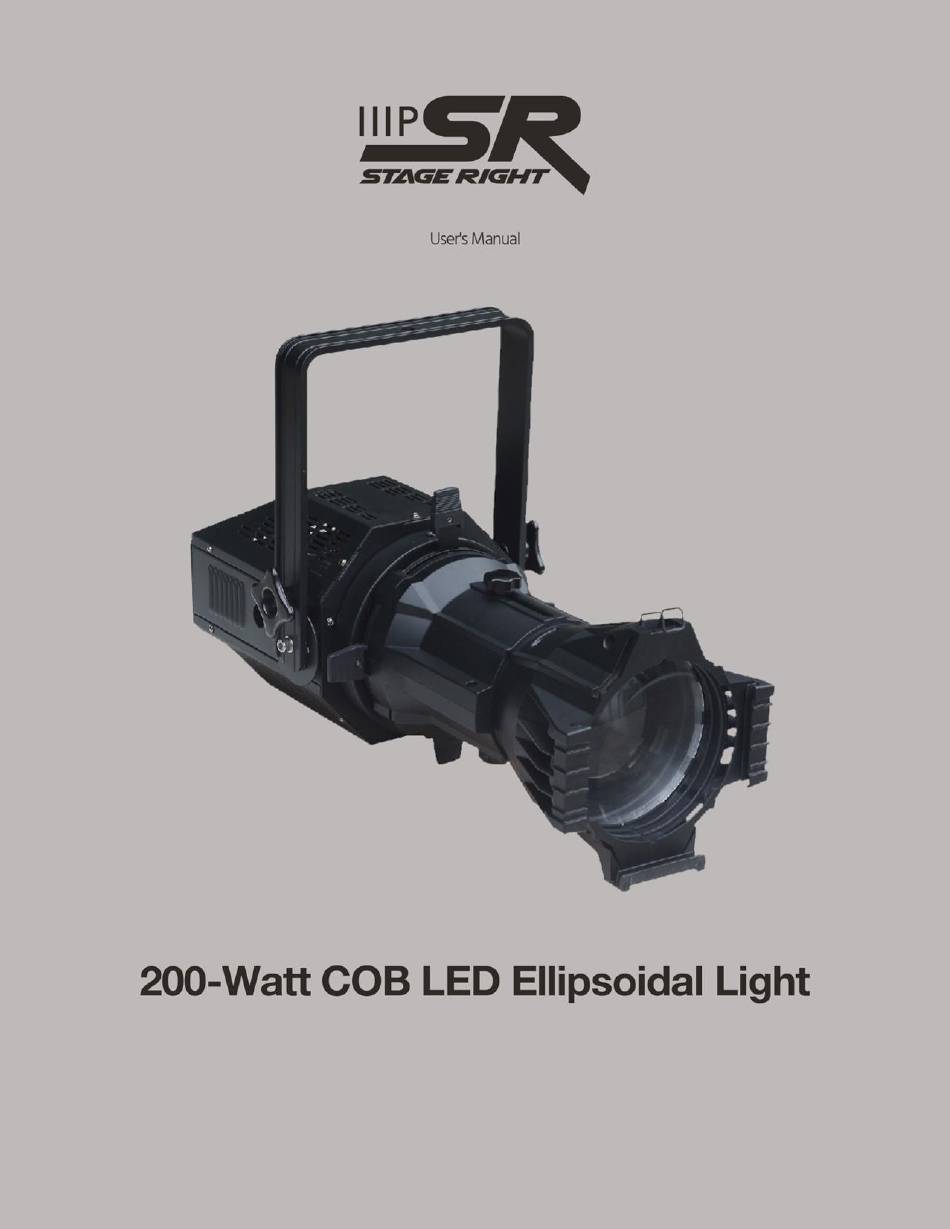

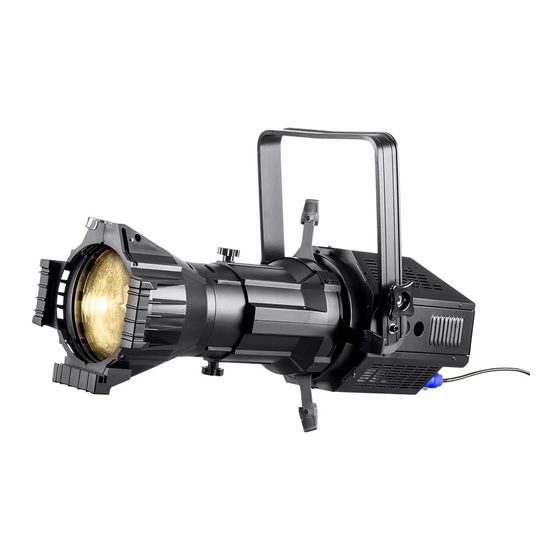

Summary of Contents for Stage right 200-Watt COB LED Ellipsoidal Light
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 Power ..........................................3 Environment ......................................... 3 Maintenance ........................................ 4 INTRODUCTION ........................................ 4 FEATURES ..........................................5 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS ....................................6 MENU DISPLAY AND CONTROLS ..............................6 DMX CONTROL ........................................ 7 MASTER/SLAVE MODE ..................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Power Use this light fixture with a constant voltage power supply only. Using it with a dimmer can result in unexpected operation and damage to the fixture. Unplug this device from the power source when not in use. ... -
Page 4: Maintenance
Do not expose this device to rain, water, or moisture of any kind. Do not use in extremely dusty environments. Do not touch the device or power cord with wet hands. When installing this device, ensure that there are no flammable materials within about 8 feet above and on all sides. -
Page 5: Features
FEATURES 200-watt 3200K white LED 19° beam angle Up to 5274 lux at 4 meters Adjustable beam size using four independently adjustable shutters Manual focus control 3-channel DMX control Built-in Strobe program NAC3 power input and pass-through output CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. -
Page 6: Package Contents
Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 200-Watt COB LED ellipsoidal light 1x AC power cord (NEMA 5-15P to NAC3) 1x NAC3 output connector... -
Page 7: Dmx Control
DMX CONTROL A single light fixture can be connected to and controlled by a DMX512 controller. To use the light with a controller, repeatedly press the MENU button until DMX512 [MODE] is displayed, then press the Enter button to edit the value. Use the Up and Down buttons to select a channel from 001-512. -
Page 8: Dimming And Strobe Control
DIMMING AND STROBE CONTROL Dimmer Mode The Dimmer function controls the light's brightness. To enter Dimmer Mode, press the MENU button repeatedly until Dimmer [MODE] is displayed, then press the Enter button to edit the value. Use the Up and Down buttons to adjust the displayed value. The dimmer can be set to any value between 0 (off) and 4096 (maximum brightness). -
Page 9: Manual Control
MANUAL CONTROL In addition to the DMX or built-in electronic controls, you can control the size of the light beam as well as its focus. Shutters Four shutter levers are located on the top, bottom, and on each side. The shutters are used to crop the light from the opposite side of the fixture, so the top shutter crops the light beam from the bottom of the fixture, the bottom crops from the top, the left crops from the right, and the right crops from the left. -
Page 10: Ac Power Cable
AC POWER CABLE Warning! Power cable wiring should only be done by experienced, qualified individuals or professional electricians. DO NOT attempt to make AC power cables unless you know exactly what you are doing and have previously done so. This light uses NAC3 connectors for power input and pass-through output. A NEMA 5-15P to NAC3 AC power cable is included, as well as an NAC3 output connector, so you can make a pass-through power cable. -
Page 11: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 12: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices.
