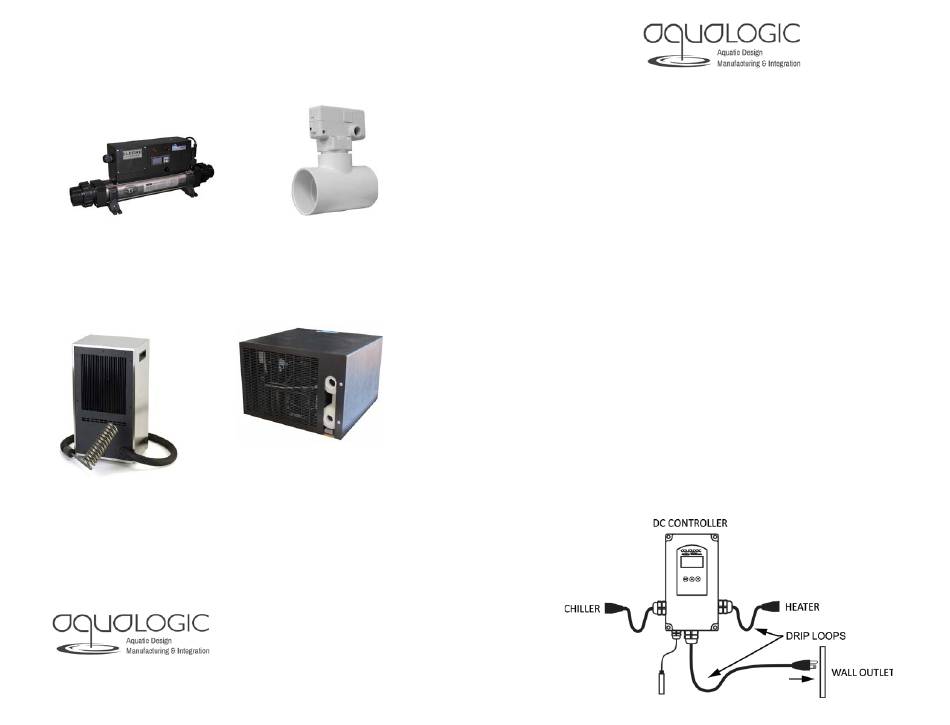

Inline Titanium heaters
1 kW thru 60 kW
TLC Trimline Cyclone Drop-
in coil water chillers -1/4
and 1/3 HP
© 2017 Aqua Logic, Inc.
Safety water flow
cutout switches
1" thru 3" pipe
Delta-Star inline water
chillers. -1/4 thru 1-1/2 HP
Aqua Logic, Inc.
9558 Camino Ruiz.
San Diego, CA. 92126
PH: 858.292.4773
email: info@aqualogicinc.com
www.AquaLogicInc.com
Rev 1
DC SERIES DUAL STAGE DIGITAL TEMPERATURE
CONTROL INSTRUCTION MANUAL
Model No. DC115D
Thank you for purchasing our digital temperature controller. It is
designed to provide on/off control for commercial heating and cooling
applications. It is equipped with a red LED display that provides a
constant readout of the water temperature, and a touch keypad that
allows the user to easily and accurately select the setpoint
temperature, differential and heating / cooling modes of operation.
The control enclosure has an NEMA 4X rating but, if installed
outdoors, it should be protected against the direct weather.
Installation.
1. Mount control on a wall or any vertical surface that water
can't splash on it.
2. Plug-in the 115V control female plugs from into the male plug
of the chiller and heater.
3. Plug-in the 115V control male plug into wall outlet.
4. Install the titanium temperature sensor in your tank or sump.
Note: For your safety, you must plug the control into a dedicated 15 or 20
Amp. GFIC (Ground Fault Interruption Circuit) circuit. When installing the
control in a wet area make sure to have the power cords with drip loops so
water does not collect around the electrical connections.
Advertisement
Table of Contents
Summary of Contents for AquaLogic DC115D
- Page 1 DC SERIES DUAL STAGE DIGITAL TEMPERATURE CONTROL INSTRUCTION MANUAL Model No. DC115D Thank you for purchasing our digital temperature controller. It is designed to provide on/off control for commercial heating and cooling applications. It is equipped with a red LED display that provides a...
- Page 2 Temperature Controller Set-up This digital controller has been pre-programmed with all the necessary parameters to ensure reliable service and operation. The controller is pre-set from the factory with a temperature range from 30 °F to 100 °F with a display resolution of 1 degree °F and with a 1 °F temperature differential.
- Page 3 Limited Warranty Temperature Differential: When the water has reached the set point temperature, the chiller or This controller has a one (1) year limited warranty. heater will switch off and will not switch back on until the water Aqua Logic, Inc. warrants this temperature controller to be free of temperature has changed by 1 °F.
- Page 4 Range AHL/Ano/AH/AL Alarm probe 2 selection Range AHL/Ano/AH/AL Maximum Heater size Watts Minimum relay stop time Minutes 0 to 240 DC115D 115 / 1 Up to -1/2HP and 500 watts Operation relay 1 Range dir/inv Operation relay 2 Range dir/inv...
