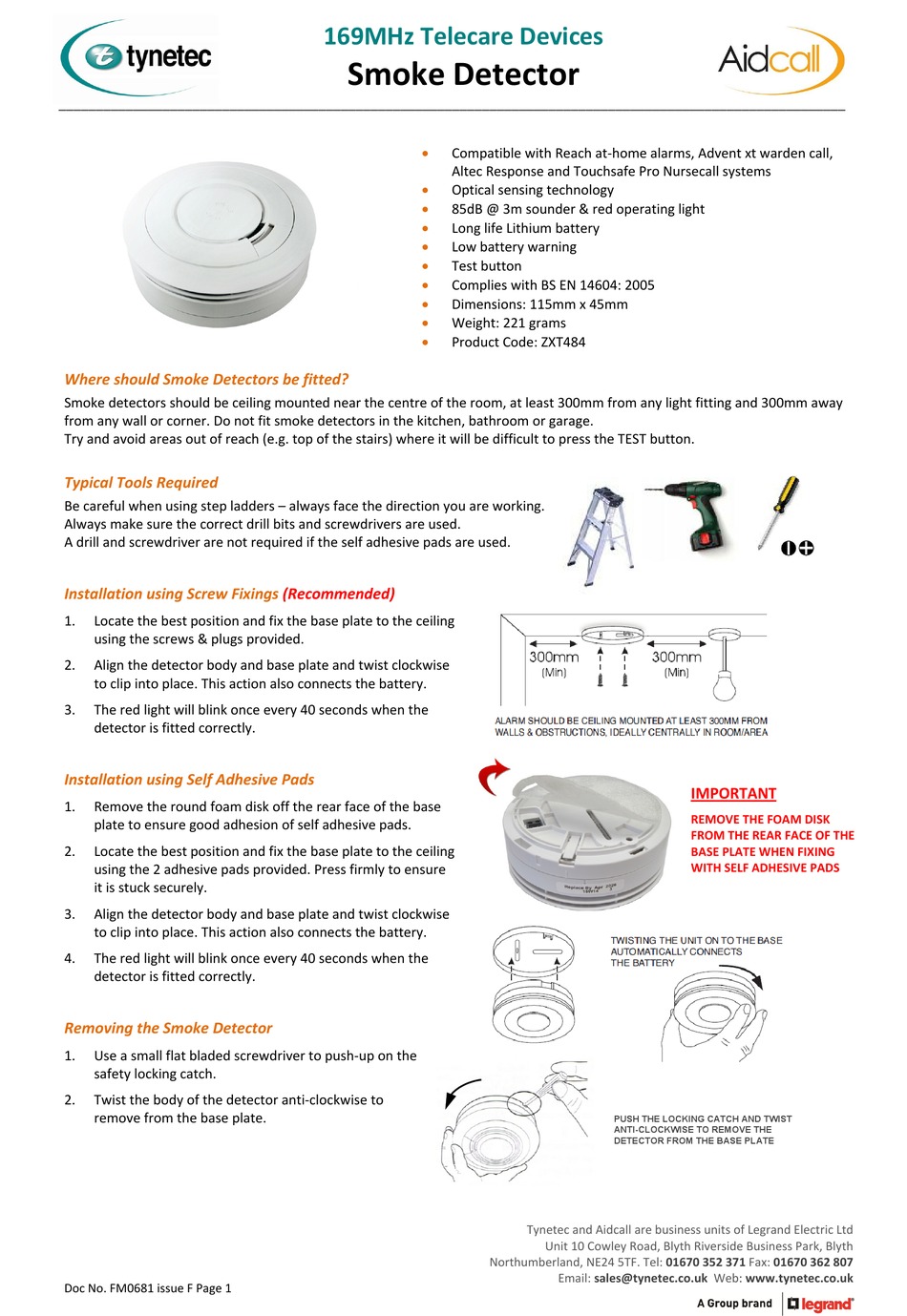

Tynetec ZXT484 Quick User Manual

__________________________________________________________________________________________________________
Where should Smoke Detectors be fitted?
Smoke detectors should be ceiling mounted near the centre of the room, at least 300mm from any light fitting and 300mm away
from any wall or corner. Do not fit smoke detectors in the kitchen, bathroom or garage.
Try and avoid areas out of reach (e.g. top of the stairs) where it will be difficult to press the TEST button.
Typical Tools Required
Be careful when using step ladders – always face the direction you are working.
Always make sure the correct drill bits and screwdrivers are used.
A drill and screwdriver are not required if the self adhesive pads are used.
Installation using Screw Fixings (Recommended)
1. Locate the best position and fix the base plate to the ceiling
using the screws & plugs provided.
2. Align the detector body and base plate and twist clockwise
to clip into place. This action also connects the battery.
3. The red light will blink once every 40 seconds when the
detector is fitted correctly.
Installation using Self Adhesive Pads
1. Remove the round foam disk off the rear face of the base
plate to ensure good adhesion of self adhesive pads.
2. Locate the best position and fix the base plate to the ceiling
using the 2 adhesive pads provided. Press firmly to ensure
it is stuck securely.
3. Align the detector body and base plate and twist clockwise
to clip into place. This action also connects the battery.
4. The red light will blink once every 40 seconds when the
detector is fitted correctly.
Removing the Smoke Detector
1. Use a small flat bladed screwdriver to push‐up on the
safety locking catch.
2. Twist the body of the detector anti‐clockwise to
remove from the base plate.
Doc No. FM0681 issue F Page 1

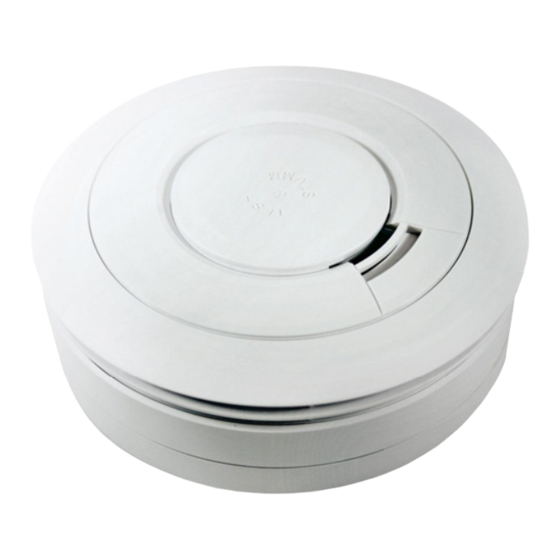

169MHz Telecare Devices
Smoke Detector










Compatible with Reach at‐home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Optical sensing technology
85dB @ 3m sounder & red operating light
Long life Lithium battery
Low battery warning
Test button
Complies with BS EN 14604: 2005
Dimensions: 115mm x 45mm
Weight: 221 grams
Product Code: ZXT484
PUSH THE LOCKING CATCH AND TWIST
ANTI-CLOCKWISE TO REMOVE THE
DETECTOR FROM THE BASE PLATE
