Summary of Contents for Challenger NG1026

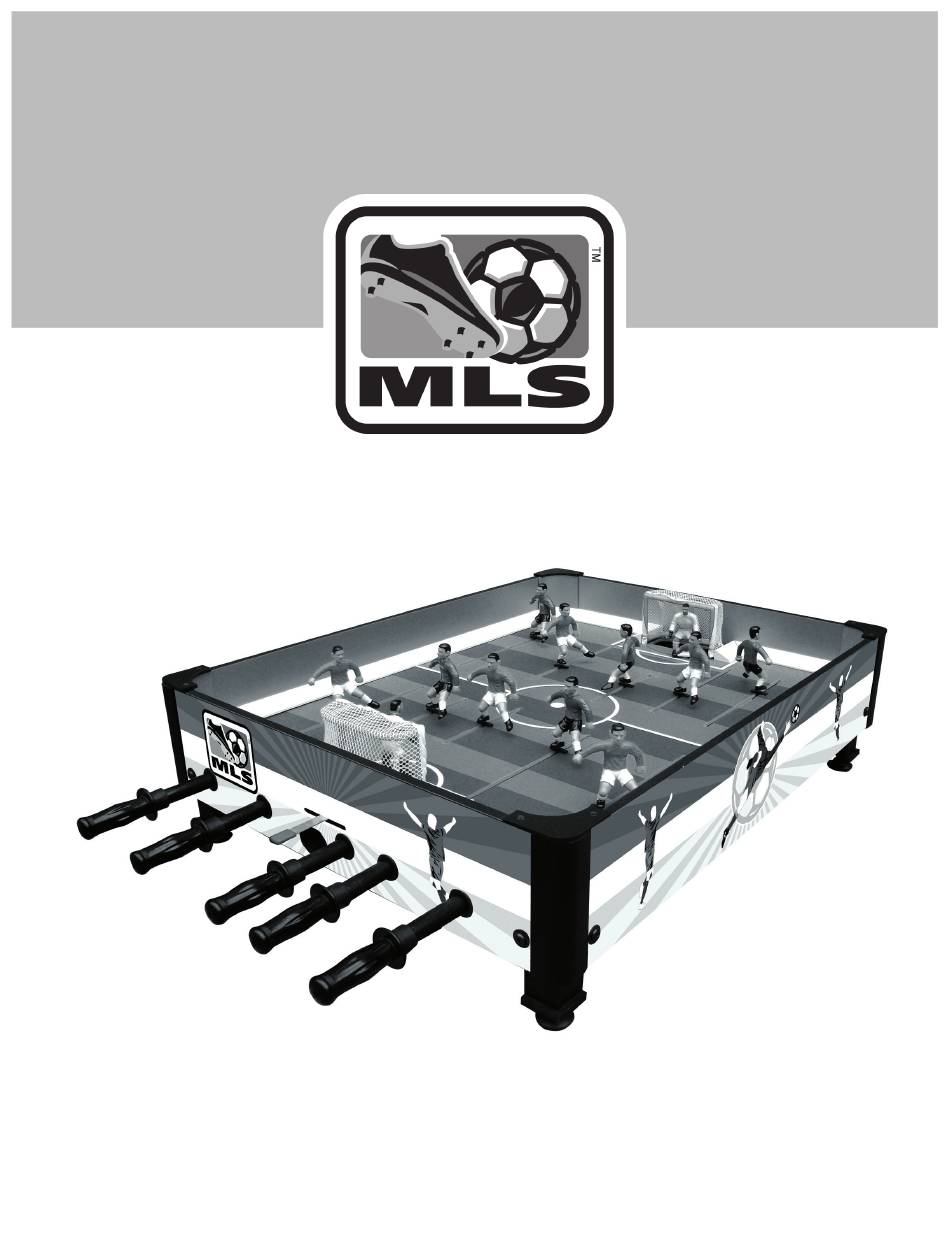

- Page 1 MLS SHOOTOUT TABLETOP ROD SOCCER TABLE ASSEMBLY INSTRUCTIONS NG1026 ...
- Page 2 However, in the rare instance that your product is defective or missing parts, contact Challenger Manufacturing at 800-759-0977 to submit parts requests or warranty claims. Please read the warranty information at the back of these assembly instructions for further details.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE)
- Page 4 PARTS IDENTIFIER (NOT TO SCALE)
-
Page 5: Assembly Tips
ASSEMBLY TIPS . Find a clean, level surface to begin the assembly of your game table. The table will be partially assembled upside down and then turned over onto its legs. 2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts Identifier before you begin assembly. - Page 6 ASSEMBLY INSTRUCTIONS . Attach one END PANEL #2 to each SIDE PANEL # with CORNER #4 and /2" ROUND SCREW #3. Note: The table is assembled upside down. 2. Slide PLAYFIELD #3 with field markings facing down into the SIDE PANEL grooves. 3.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) 4. Attach each PLAYER CONTROL GEAR #7 by inserting tab into PLAYFIELD slots as shown and twisting into place. 5. Insert LONG PLAYER RODS #25, MEDIUM PLAYER RODS #26 and SHORT PLAYER RODS #27 through END PANELS as shown. Note: the PLAYER CONTROL GEARS will be secured to the hole in the end of the PLAYER RODS - this end must be inserted into the END PANEL first.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 9. Position PLAYFIELD SUPPORT BRACE #6 underneath PLAYFIELD and secure to SIDE PANELS with " FLAT SCREW #4. 0. Insert one GOALIE CONTROL ARM #8 through one END PANEL and PLAY- FIELD. Secure to PLAYFIELD with 3/4" BOLT #5 and NUT #6. Repeat assembly with remaining GOALIE CONTROL ARM.
- Page 9 ASSEMBLY INSTRUCTIONS (CONT.) 4. Attach one SOCCER GOAL #9 to one RIGHT GOAL BORDER #20A and one LEFT GOAL BORDER #20B with /2" ROUND SCREW #3. Secure to PLAYFIELD from underneath with /2" ROUND SCREW #3. Repeat assembly with remaining SOCCER GOAL and GOAL BORDERS.
-
Page 10: Care And Use
CONGRATULATIONS! You have now assembled your MLS Soccer Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE . This product is intended for INDOOR use only. 2. -
Page 11: Day Limited Warranty
90-DAY LIMITED WARRANTY This Challenger Manufacturing product is warranted to the original purchaser to be free from defects manship for a period of ninety days from the date of the original retail purchase. in material or work This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.
