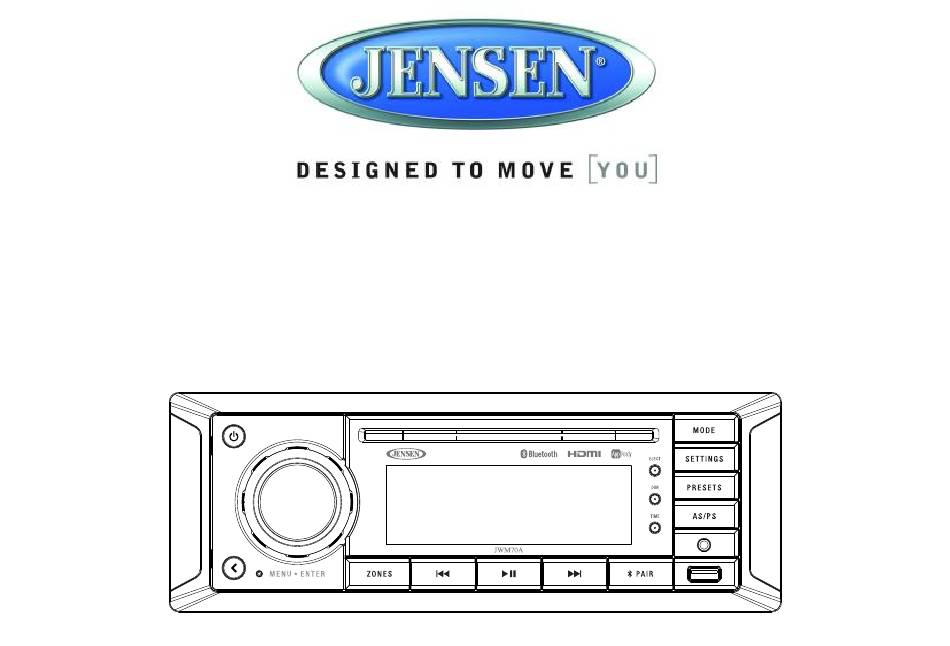

- Page 1 JWM70A MOBILE AUDIO SYSTEM Installation and Owner's Manual...
-
Page 2: Table Of Contents
JWM70A Introduction..........................3 Disc Notes..........................4 Installation..........................5 Wiring............................6 Basic Operation........................7 Tuner Operation........................10 Weather Band Operation......................11 Disc Operation........................12 MP3/USB Operation........................15 Bluetooth Operation........................17 App Operation........................18 Remote Control Operation.......................19 DVD Setup Menu........................21 Care and Maintenance......................23 Troubleshooting........................23 Specifications.........................24... -
Page 3: Introduction
The front of this unit should only be cleaned with a slightly damp cloth. Do not in this owner’s manual clear and easy to follow. If you take a few minutes to look use cleansers. through it, you’ll learn how to use all the features of your new Jensen receiver for Ÿ Use Recommended Accessories. -
Page 4: Disc Notes
JWM70A DISC NOTES Be sure to use only round CDs for this unit and do not use any special shape Ÿ CDs. Use of special shape CDs may cause the unit to malfunction. Do not stick paper or tape on the disc. Do not use CDs with labels or stickers Ÿ... -
Page 5: Installation
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) batterycable prior to installation. NOTE: If the JWM70A is to be installed in a vehicle equipped with an on- board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. -
Page 6: Wiring
JWM70A WIRING WARNING: Wiring harness comes with stripped and tinned leads to aid in the installation process. Any unused speaker wires must have their exposed ends cut The wiring diagram depicts all the wiring connections required for proper off or insulated individually. -
Page 7: Basic Operation
Ÿ “BAL 0” indicates an equal balance between the left and right speakers. Press ENTER knob button to reset the JWM70A to factory default set up values. Ÿ FAD: Adjust the speaker fade between “R7” (rear) and “F7” (front). “FAD 0”... - Page 8 Sleep Mode the AUDIO IN (AUX IN2) on the back of the unit (see“Wiring” on page 3). The Sleep Timer will automatically turn off the JWM70A in the designated number of Auxiliary Input Connector minutes. To set the Sleep Time, press the SLEEP button (37) and the sleep time will For front panel A/V input, an external audio/video (A/V) source such as a video appear in the display with the number representing the minutes (SLEEP 0).
- Page 9 JWM70A Device Status User Operation Operation Results Remarks Head Unit Head Unit Power ON (HDMI Power ON Power OFF Power OFF TV Power OFF ARC) Power ON Power OFF Power OFF Power ON TV Power OFF Power OFF(Last Power OFF...
-
Page 10: Tuner Operation
JWM70A Automatically Store / Preset Scan (AS/PS) TUNER OPERATION Automatically Store Select an AM or FM band. Press and hold the AS/PS button (12) for more than 3 seconds and the unit will automatically scan for and store 12 or 18 strongest stations for AM or FM respectively. -
Page 11: Weather Band Operation
JWM70A Is it possible I won't receive any stations? WEATHER BAND OPERATION Depending on where you are located, there is a possibility you will receive only a very weak signal or none at all. Also, similar to AM and FM signals, weather band signals are subject to surrounding conditions, weather, obstructions of the signal by hills or mountains, etc. -
Page 12: Disc Operation
JWM70A DISC OPERATION Track Select Press the >>| or |<< button (8, 6) to advance to the previous or next track on the CD. The selected track number will appear on the display. Press and hold the >>| or |<<... - Page 13 JWM70A Remote Control Direct Track Entry Stop Playback To select a track directly, use the number pad on the remote control (10). ■ Press the button (18) to suspend disc play, and “PRE STOP” will appear in the For single digit entries, press the corresponding number for two digit display.
- Page 14 JWM70A 2. Use the ◄►or ▲▼cursor buttons (15) on the remote control to access 00:02:18 –total elapsed playing time of the current track; the fields on the "PROG" screen. C –00:34:37 –remaining playing time of the current track; 3. Use the number buttons on the remote control to enter a track number in T 00:02:18 –total elapsed playing time for disc;...
-
Page 15: Mp3/Usb Operation
JWM70A MP3/USB OPERATION Notes on MP3 Playback Any directory that does not include an MP3 file is skipped Maximum number of folders: 512 (including skipped directories) Maximum number of folder levels: 12 Maximum number of MP3 files: 999 Maximum number of characters for MP3 file name and folder name: 32 Maximum number of Characters of ID3 Tag: ID3 Tag version 1.0: 32... - Page 16 JWM70A Repeat (RPT) GOTO Direct Track/Chapter Access Press the RPT button (20) on the remote control multiple times during playback Use the GOTO function to access a track (chapter) directly. to select from the following repeat play options: RPT 1 (track), RPT DIR (folder), 1.
-
Page 17: Bluetooth Operation
With the JWM70Ain Bluetooth Audio mode, press and hold the ENTER button for 3 seconds to start Bluetooth pair.The JWM70A will display 'Pairing' and is now ready to pair. With the Bluetooth function of the mobile device turned on, search for a Bluetooth device. -
Page 18: App Operation
JENSEN stereo system. Store away your old remotes and enjoy the convenience of all the primary functions of your JENSEN stereo right from your phone or tablet by Pausing Playback transforming your mobile device into a functional stereo remote control! During playback, press the ▶II button (7) to pause the Bluetooth audio playback. -
Page 19: Remote Control Operation
JWM70A REMOTE CONTROL OPERATION DESCRIPTION TUNER BLUETOOTH CD/MP3/USB LOUD Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby Power mode. mode. mode. mode. ALARM Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. VOL +/-... - Page 20 JWM70A Press to view title TITLE menu. Use directional arrows and play button to play selected title. May not be supported by all discs. Repeat track Repeat chapter Select source for Select source for Select source for Select source for...
-
Page 21: Dvd Setup Menu
JWM70A DVD SETUP MENU Lanuage Setup Press the (setup) button (10) on the remote control to access the SETUP The Language Setup menu controls the following features: menu and adjust system settings for the following categories: System Setup Language Setup... - Page 22 JWM70A Video Setup The Video Setup menu controls the following features: – System Setup Language Setup – Audio Setup – Video Setup – Digital Setup – Digital Setup The Speaker Setup menu controls the following features: OP Mode: Select LINE OUT or RF REMOD.
-
Page 23: Care And Maintenance
JWM70A CARE AND MAINTENANCE TROUBLESHOOTING – Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Solution Keep the product away from dust and dirt, which can cause premature wear –... -
Page 24: Specifications
JWM70A SPECIFICATIONS FCC Notice NOTE: This equipment has been tested and found to comply with the limits for a FM Tuner Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are Frequency Coverage (USA) ......87.5 to 107.9 MHz designed to provide reasonable protection against harmful interference in a Frequency Coverage (Europe) .
