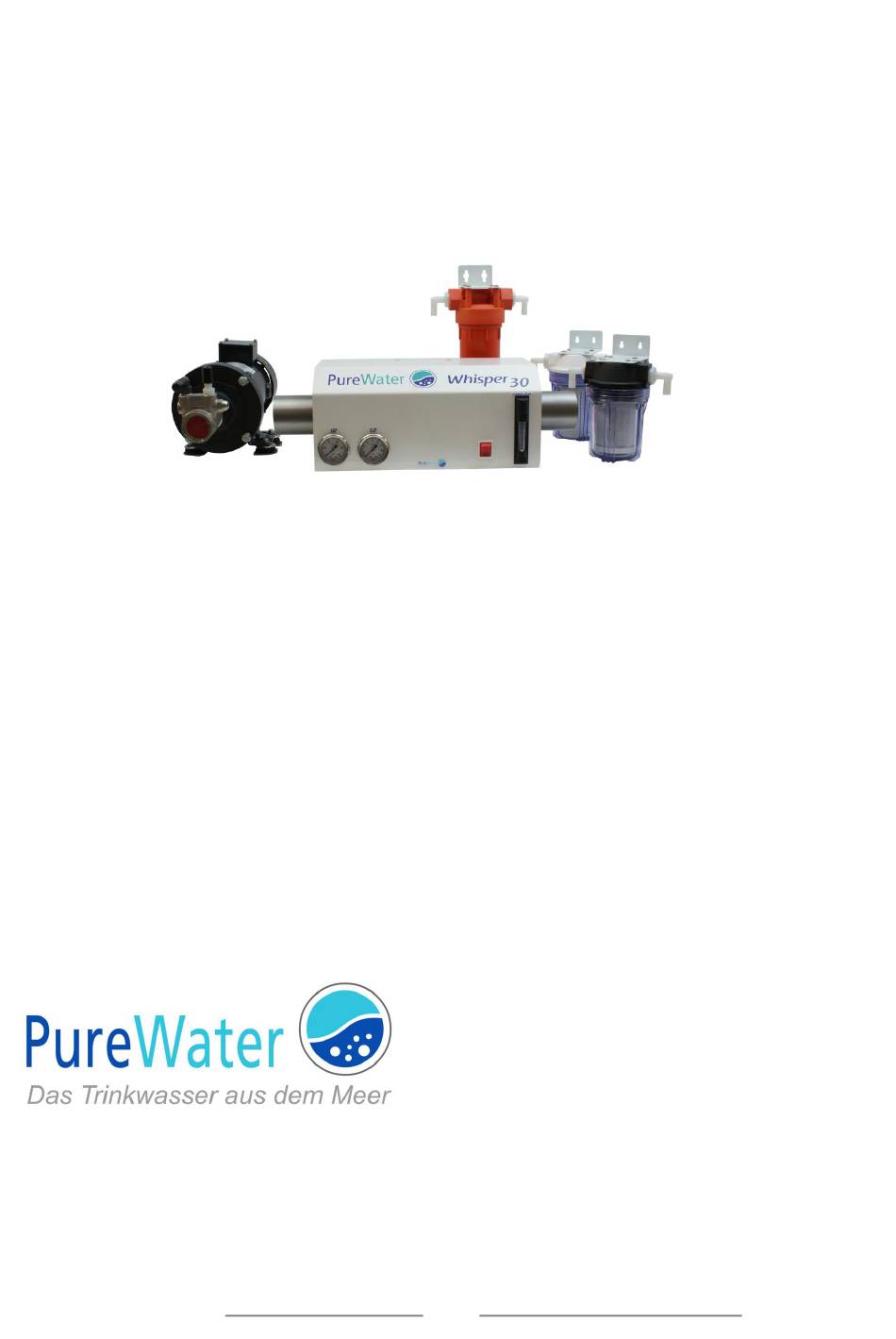

- Page 1 Whisper 30 integral, modular-Frame Whisper 30 integral 12/24 Volt DC 230 V AC User Guide and Installation handbook PureWater – H. Fehlemann Entsalzungsanlagen Bodelschwinghstrasse 37 33142 Büren Germany www.watermaker.de purewater@watermaker.de...
-
Page 2: Table Of Contents

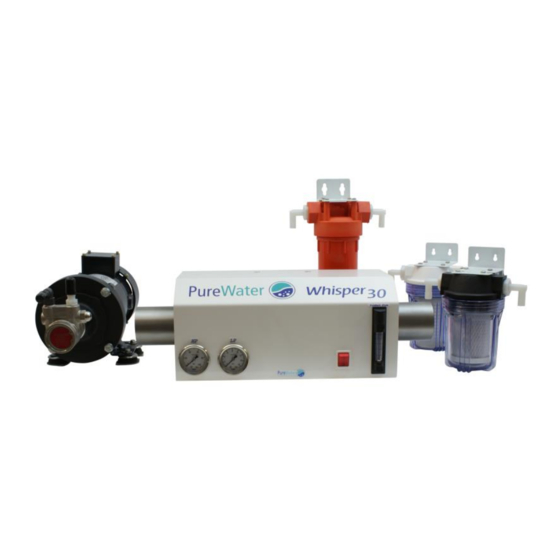

Index General Theory of Operation………………………………………………………... Whisper 30 Integral…………………………………………………………………… The general scope of application…………………………………………… Explanation………………………................Quality Monitor……………………………………………………………………….. Performace……………................... Installation……………………………………………………………………………… Preparation for Installation ………………………………………………………… 4.3.1 Feed Pump, Pre-Filter and Hose connections…… ……………………………..4.3.2 Product Water connection…………………………………………………………… Hose connections to PH Stabilizer (Only COMPACT Models)…………. - Page 3 Whisper 30 integral, Modular Handbook The Sea Star Whisper 30 modular-Frame individual parts: ETD Basic unit Filter-system Whisper Vane Pump Pre-Filter Vane Pump 230V The dimensions of Motor and pump are subject to change, because different motors are used.
- Page 4 Whisper 30 integral, Modular Handbook Vorsichtsmaßnahmen Precautionary Bitte beachten Sie folgende Punkte bevor Sie Ihre SEA STAR Anlage einbauen und in Betrieb nehmen! Please pay attention to the following point’s bevor you install the system. 1. Die Anlage sollte innerhalb von 12 Monaten nach Auslieferung in Betrieb genommen werden.
-
Page 5: General Theory Of Operation
In this type of system, the concentrated solution (normally referred to as feed-water) will become more concentrated as pure water flows out of solution and across the membrane to the permeate side. Discounting the effects of feed-water Abb. -
Page 6: Whisper 30 Integral
Whisper 30 integral, Modular, Handbook In a Reverse Osmosis desalination system, most of the dissolved solids do not pass through the Membrane but are instead carried along the membrane surface. This rejected water, referred to as Brine, becomes increasingly more concentrated as it flows across the surface of the membranes and is eventually piped to drain. -
Page 7: Explanation
Whisper 30 integral Modular Handbook 2.3 Explanation High Pressure Gauge (at the ETD) The High pressure Gauge shows the operating pressure. The range is between 35 and 55 Bar, depends on the type of Membrane used. Low pressure Gauge (at the panel) The LP Gauge shows the pressure of the Vane Pump. -
Page 8: Quality Monitor
Whisper 30 integral Modular Handbook 2.4 Quality Monitor (COMPACT Versions only) The Quality Monitor shows the quality of the product water in PPM TDS (Part per Million Total dissolved Solids) When starting the system the quality is always for a short period ( 30-45sec) high salinity. Shortly the monitor starts to count down. -
Page 9: Performace
Whisper 30 integral Handbook 3.0 Performance Sea Star Whisper 30 integral, Modular Weight: 35 Kg Power consumption: Whisper 30 integral, Modular 12V - 16A 24V- 8A 230V 1,6A Operational Parameter: Pressure: High Pressure: 500-950psi 35-55Bar Low Pressure: 7-12 Bar Maximum Salinity: 46000 ppm ( ppm= Parts per million ) Temperature Range: 1°... -
Page 10: Preparation For Installation
Whisper 30 Modular Handbook 4.2 Preparations for Installation For installation pay attention to the Flow Diagram on Page 19 Sea Water Filter (Strainer) Place the Strainer direct after the Sea Cock. The Strainer has a 50µ washable Filter inside. At the Strainer is the Selector Valve mounted. Here you can select either Sea Water operation or Fresh Water Operation. -
Page 11: Feed Pump, Pre-Filter And Hose Connections
Whisper 30 integral Handbook 4.3.1 Feed Pump, Pre- Filter and Hose connections The Sea Water feed should be a marine grade Sea Cock, that you can close the Sea Cock individually Step 1 Connect the Sea Water intake with a re- enforced ½“ hose to the lower hose barb at the valve at the Strainer. -
Page 12: Product Water Connection
Whisper 30 integral Modular Handbook 4.3.2 Product water connection. At the top of the product flow meter, there is an 8mm hose barb. This is the product water pick up. Refer to the flow diagram on page 17. NOTE: Any connections to the ships freshwater Tank has to be connected always from the top of Tank. -
Page 13: Electric Control Box (Option)
Whisper 30 integral Handbook 4.4 .1Electrical Control Box with Relay 12/24V DC (Option) This is an option if you have long way from your ships Battery to the Feed Pump Motor Warning! Disconnect power from the system. Cabel to the feed Batteriy pump. -
Page 14: How To Use The System
Whisper 30 integral Handbook 5.0 How to use the system 5.1 Filling and starting the system. Step1 Place the Sample Valve in Pos. SAMPLE and guide the hose to a drain. Step 2 Open the Sea Cock and let water flow into the system. -
Page 15: Preservation Configuration Flow Diagram
Whisper 30 integral Handbook Preservation Configuration... -
Page 16: Maintenance
Sea Star Whisper 30 integral Handbook 6.0 Maintenance 6.2 Short Term Storage/Fresh Water Flush Ideally, the SEA STAR performs optimally when the RO unit is used periodically. However, the Likelihood of bacterial and biological growth in the membranes increases, when stagnant seawater (in extended periods) is in contact with the membranes. -
Page 17: Long Term Storage / Preservation Procedure
Whisper 30 integral Handbook Long Term Storage/Preservation During periods when the RO unit is to be shut down for an extended period of time, it is necessary to re-flush the unit every three month OR to circulate a preservative solution through the membrane to prevent the growth of biological organisms. -
Page 18: Membrane Replacement
Whisper 30 integral Handbook Membrane Replacement Follow the instructions to change the membrane. Make sure that there is no pressure anymore in the system. This could take up to 90 Minutes after stopping. Disconnect the product water hose connection. - Page 19 Whisper 30 integral Handbook Membrane Replacement Guide the new Membrane from the right side into the tube. Pay attention that the Membrane is exact in the middle. Now you can screw the Endcaps on the tube. ...
- Page 20 Whisper 30 integral Handbuch 7.0 Flow Diagram Normal Operation...
-
Page 21: 12/24 V Dc Motor
Sea Star Handbuch Elektrische Schaltung/ Wiring 12/24V DC with the Option Control Box Batterie + ( 10mm Bolzen ) Bei 24V Anlagen ist ein 24-12V Konverter geschaltet (Nur COMPACT) Steuerleitung 1 12V Plus Konverter Ein – Aus Schalter Motor Feed Pump Plus (rot) 12/24 Volt Batterie Schaltrelais... -
Page 22: Exploded Parts View Etd
Whisper 30 Integral Handbook 9.0 ETD: Exploded Parts View... -
Page 23: Parts Etd
Whisper 30 Integral Handbook 9.1 ETD Parts... -
Page 24: The John Guest System
Whisper 30 Integral Handbook 9.1The John Guest System...
