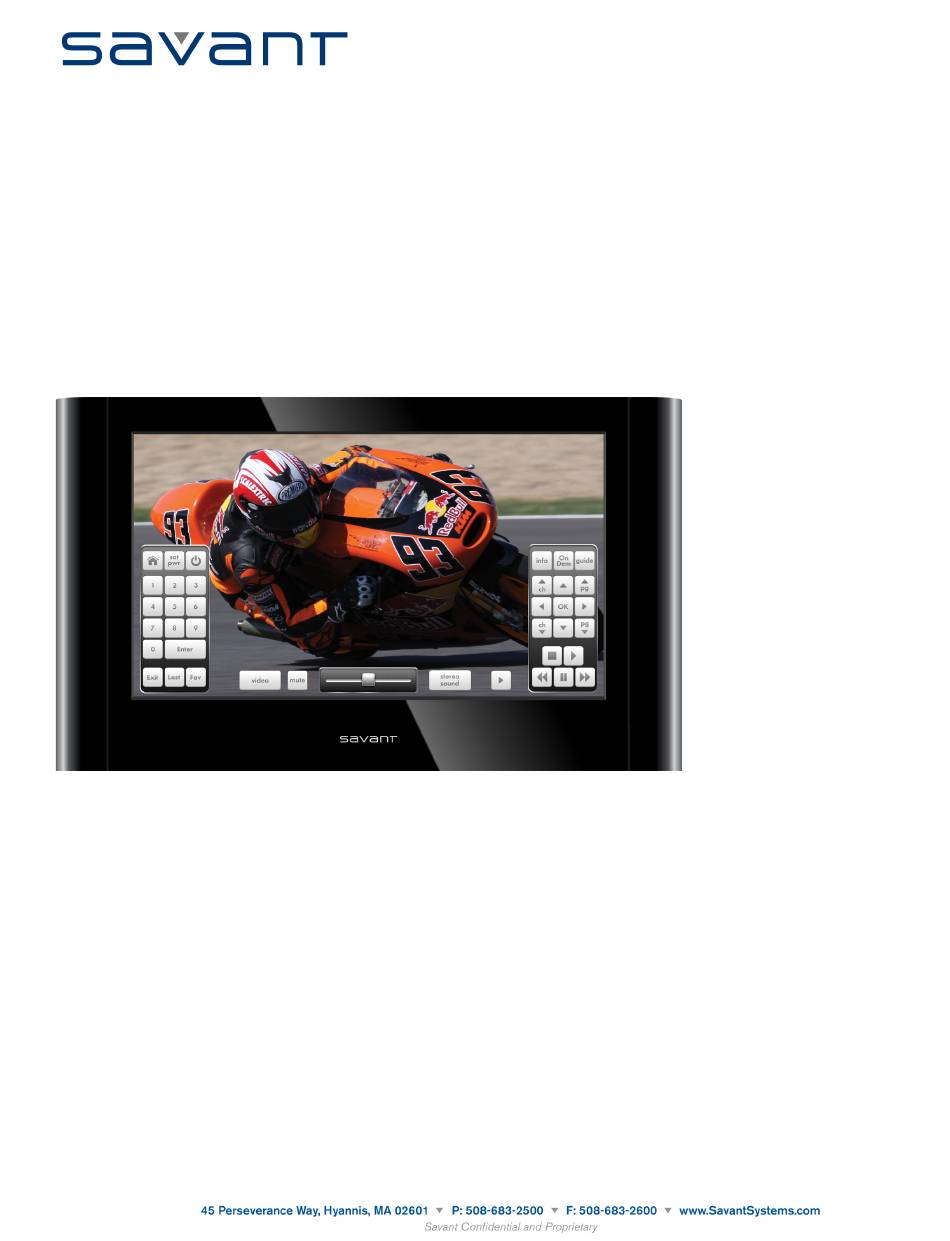

Savant TTV-2018 Deployment Guide
009-0575-00
Savant Touch TV 18.5-inch
(TTV-2018)
Deployment Guide
Software Release: da Vinci Release 5.0
Hardware Release:TTV-2018-01
Date: May 2012
Part Number: 009-0575-00
Introduction
The Savant Touch TV-2018 Deployment Guide provides information to install, configure, calibrate and operate a Savant Touch
TV (TTV). This unit is designed to be wall-mounted with standard, low profile Vesa-compliant 200x100 or 100x100 wall mounts
or mounted in an optional tabletop stand. Once interconnected and configured into the Savant System, the TTV allows viewing of
high definition video while functioning as a large, easy-to-use interface.
TTV-2018
Box Contents
(1) Touch TV 18.5-inch HD LCD (TTV-2018)
(1) Power Supply Plug-In AC Adapters 60 Watt 24 Volt 2.5 Amps (025-0084-xx)
(1) Power cord C13 (6 feet) (N. America) (064-0079-xx) or appropriate international power cord
(1) Quick Reference Guide
Required Accessories
Savant HST-4001 or HST-4002
Savant SVR-4100 or SVR-4100S
Savant Audio/Video Controller: SSV-1000, OCC-5100, SSM-3000, SSM-3100, or VOM-VP02H
Optional Accessories
Touch TV Stand (TTV-STND1-xx)
HDMI over Cat 5/6 Solution Set (HCX-1010)
HDMI over Coax Solution Set (HCX-1100)
HDMI over Multi-Mode Fiber Optic Cable Solution Set (HCX-1200)
USB 2.0 over Cat 5e Digital Extender Set (UCX-2000)
062712
1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTV-2018 and is the answer not in the manual?

Questions and answers

Related Manuals for Savant TTV-2018

Summary of Contents for Savant TTV-2018

  • Page 1 TV (TTV). This unit is designed to be wall-mounted with standard, low profile Vesa-compliant 200x100 or 100x100 wall mounts or mounted in an optional tabletop stand. Once interconnected and configured into the Savant System, the TTV allows viewing of high definition video while functioning as a large, easy-to-use interface.

  • Page 2: Unpack The Components

    Savant TTV-2018 Deployment Guide 009-0575-00 Unpack the Components Remove the components and packing materials. Save the box and packing materials to transport or ship the Touch TV. Specifications Environmental Temperature 50º to 104º F (10º to 40º C) Humidity 10% to 90% RH (non-condensing)
  • Page 3 TTV-2018 Setup the Touch Driver When the Savant Host is purchased, the touch driver is already installed. If you need to re-install the touch driver, do the following: Locate the host and click the Share Screen button in upper left of the System Monitor window.
  • Page 4 Rename component, if necessary. d. Click Create button. e. Click Show Inspector in RacePoint Blueprint toolbar to open the Inspector window. f. If necessary, click Device and the Edit checkbox. Enter the Savant ID (UID) in the appropriate Inspector window text field. 062712...
  • Page 5 Savant TTV-2018 Deployment Guide 009-0575-00 Open Inspector on the controller and select the Screens tab. Click the + at the bottom of the screen. Add TTV User. Select the correct resolution from the Active Background field: Video_key_pattern_1366X768.jpg Connect the components.
  • Page 6 Savant TTV-2018 Deployment Guide 009-0575-00 Typical Configuration for TTV-2018 062712 6 of 10...

  • Page 7: Additional Documentation

    Use a clean, soft cloth to dry the screen. Additional Documentation To see more documentation go to http://www.SavantSystems.com and navigate as follows: >Dealer Login > Knowledge Base Refer to: Products > Touch TV 18.5 (TTV-2018) Quick Reference Guide • Click link: RacePoint Blueprint™ • 062712 7 of 10...

  • Page 8: Important Notice

    Savant Systems, LLC shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
  • Page 9 ELECTRICAL DISCONNECT: The 24 VDC power outlets should be easily accessible to disconnect power in the event of an electrical malfunction. Weight Injury Prevention WEIGHT INJURY: Installing some of the Savant Controllers require two installers to ensure safe handling during installation. Failure to use two installers may result in injury. 062712...

  • Page 10: Safety Statements

    Savant TTV-2018 Deployment Guide 009-0575-00 Safety Statements Follow all of the safety instructions listed below and apply where applicable. Additional safety information will be included where applicable and listed below. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
