Summary of Contents for REI HD5-1200

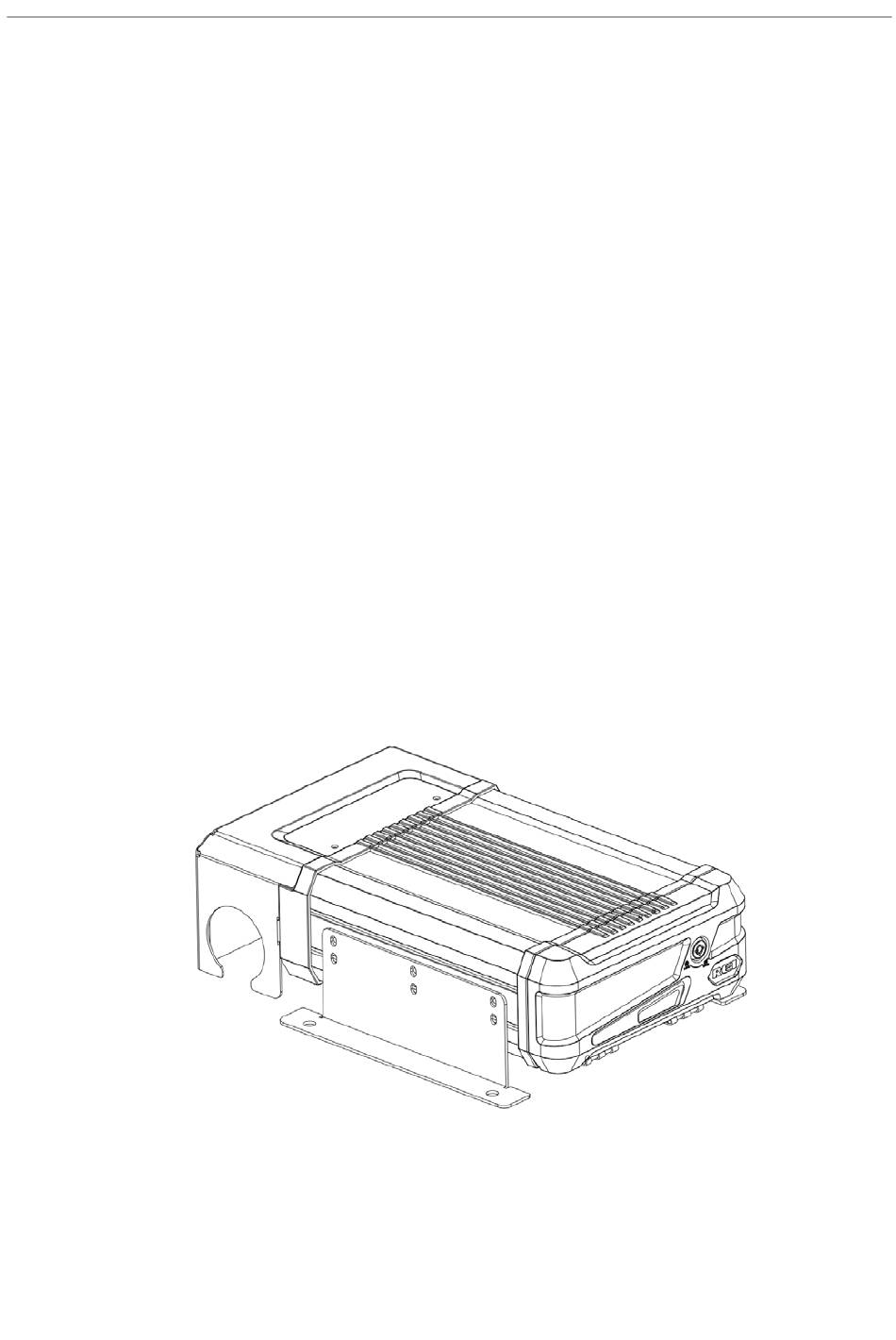

- Page 1 User Manual Digital Video Recorder HD5-1200...
- Page 2 Notice The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without any notice. The purpose of this manual is to kindly aid the user for the operation for our MDVR. The user should have a basic understanding of computer operation and basic knowledge of how to connect peripherals and make some settings.
-
Page 3: Product Characteristics
1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW HD5-1200 is developed from the brand new platform N9M, which is an advanced and function-extensive Mobile Video Recorder specially designed for network high definition, analog audio & video input and excellent extension. It uses high-speed processor and embedded operating system, patented file system 4.0 to ensure the safety and integration of important data, combining with H. - Page 4 Digital: 1080P(1920X1080),720P(1280X720) Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Manual/Schedule/Alarm Pre- recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel 4 channel by local playback Playback Search Mode Date/time, channel, event WIFI 802.11b/g/n (2.4GHz and 5.8GHz) IPC Ethernet(Back) 3 x10/100 M RJ45 ports Network...
-
Page 5: Panel Interface
1.4. PANEL INTERFACE Front panel - 10... - Page 6 Serial No. Print Description AUDIO Audio out VIDEO Video out Power LED HTR LED Recording LED FLT LED Alarm LED VLOSS VLOSS LED 2 x USB 2.0 RJ45 1 x 10/100/1000M RJ45 ...
-
Page 7: Frequently Asked Questions
Serial No. Print Description Power DC8-30V power input CAM9-12 IP Camera input 9-12 USB2.0 port (Type B/ to connect fire proof box) EXT HDD ESATA Connector CAMERAS AHD A/V input1~8 WIFI WIFI 1-2 antenna port(2.4GHz & 5.8GHz) GPS antenna port INPUT Sensor input J1939... - Page 8 connected back to the battery, and whether the fuse on the power wire is in good condition. Check whether the ACC signal wire input to the power is with voltage higher than 7 V. Check whether the device key is closed. The MDVR restarts uninterruptedly? Please follow below steps to check it: Check whether the voltage of MDVR is insufficient.
- Page 9 impossible to be shut down. GPS anomaly. Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked and make sure the antenna connector not be covered by other things.
-
Page 10: Fcc Statement
3. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
