OWNER'S MANUAL

BELMONT-CURVED

LINEAR ELECTRIC FIREPLACE WITH HEATER

MODEL# EFW-TJ22B, EFW-TJ34B, EFW-TJ48B

Wall Mounted Option

Free Standing Option with Feet

Read and understand this entire owner's manual, including all safety information, before plugging

i WARNING

in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

Keep this owner's manual for future reference. If you sell or give this product away, make sure this

i CAUTION

manual accompanies this product.

NO VENTING REQUIRED

110V AC; 60 Hz; 1500 Watts

Table of Contents

Need help?

Do you have a question about the EFW-TJ22B and is the answer not in the manual?

Questions and answers

Summary of Contents for Estate Design EFW-TJ22B

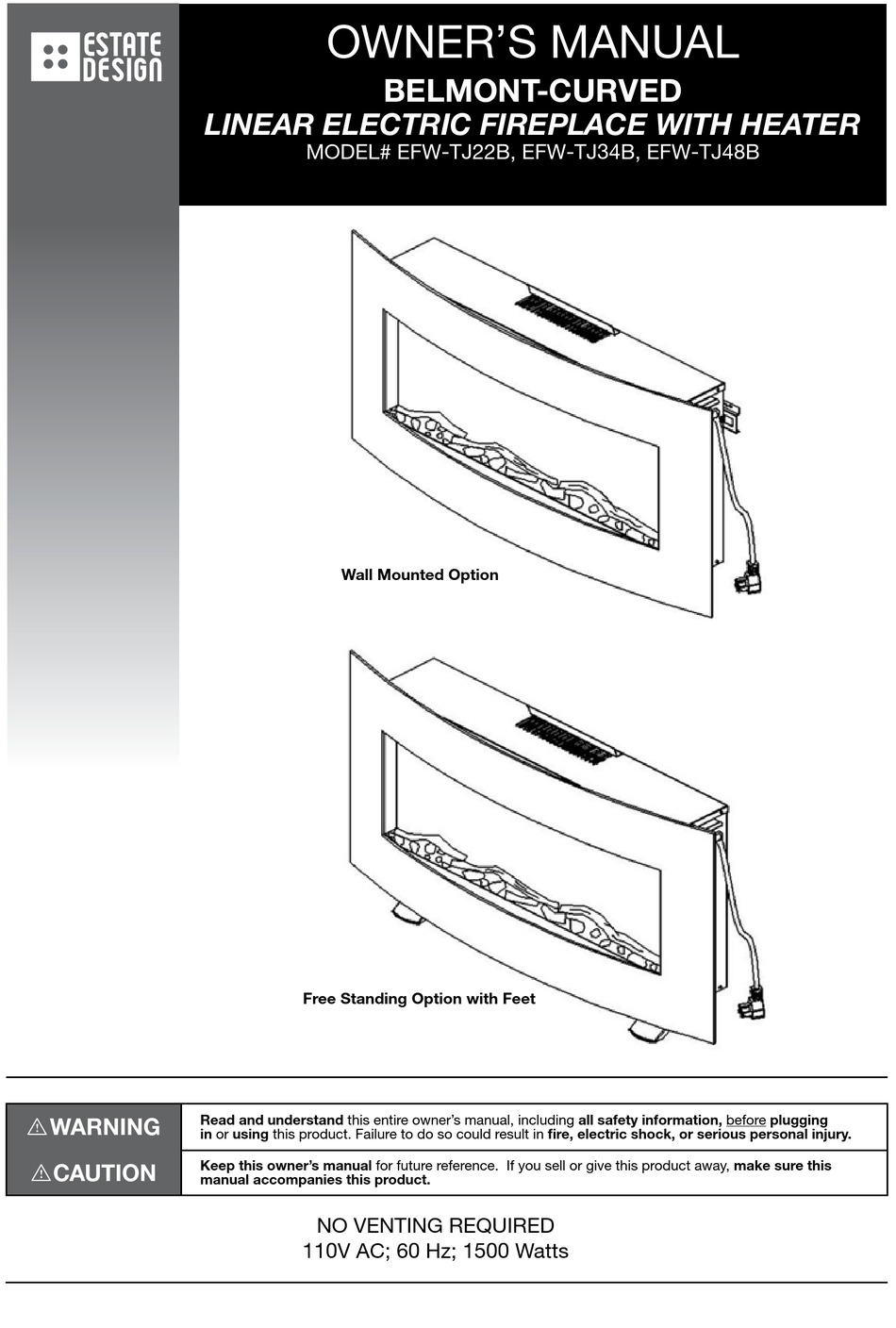

Page 1 OWNER’S MANUAL BELMONT-CURVED LINEAR ELECTRIC FIREPLACE WITH HEATER MODEL# EFW-TJ22B, EFW-TJ34B, EFW-TJ48B Wall Mounted Option Free Standing Option with Feet Read and understand this entire owner’s manual, including all safety information, before plugging i WARNING in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS! i WARNING • Read all instructions before using this heater! • This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (36") from the front of the heater, and keep them away from the sides and rear.
Page 3 i WARNING • For residential use only! NOT for commercial use! Any commercial or public use of this heater voids all warranties, and could cause injury. • This product is not intended to be a primary heat source. It is for supplemental heat only. •...
Page 4: Tools Needed
PREPARATION This product includes GLASS! ALWAYS use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. • Remove all parts and hardware from the carton and place them on a clean, soft, and dry surface.
Page 5: Installation And Assembly
INSTALLATION AND ASSEMBLY ALWAYS make sure the unit is unplugged before beginning assembly! NEVER move or clean the heater while it is plugged in. STEP 1: Find a safe location. Minimum clearance Minimum 39.5" on each side: 20". Minimum clearance below: 20".
Page 6 AVOID INJURY and DAMAGE! Wood Screws(B) should be screwed directly into wall studs when possible. STEP 4: Align the holes in the Wall Bracket(E) with the pilot holes and Drywall Anchors(C). Thread three Wood Screws(B) and Metal Washers (J) through the holes in the wall bracket and directly into the wall studs and Drywall Anchors(C).
Page 7 MEDIA BED INSTALLATION This next step involves GLASS! ALWAYS use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. ALWAYS keep the decorative glass OUT OF REACH OF CHILDREN AND PETS! Leave no glass pieces where children or pets can find them.
Page 8 STEP 6c: Set the Shelf Insert(I) onto the ledge in the opening at the front of the fireplace. STEP 6d: Arrange the crushed glass, white stones, river rock, or faux branches on the Shelf Insert(I) in the desired position. STEP 6e: Set the front glass panel back onto the firebox. STEP 6f: Align the tabs of the glass panel with the holes on the top edge of the fireplace.
Page 9 FOOT ASSEMBLY FOR FREE STANDING OPTION WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS NOTICE PROCEDURE. STEP 7: With the help of a capable adult, carefully lay the fireplace on a protected work surface, on it’s back. STEP 7a: Secure the Foot Bracket(G) to the bottom of the fireplace with two M6x14 Bolts(H). Tighten each screw securely with a screwdriver.
Page 10: Operation
OPERATION Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. POWER Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power cord into a 110 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
Page 11: Control Panel Functions
CONTROL PANEL FUNCTIONS When the heat function is used for the first time, a slight odor may be present. NOTICE This is normal and should not occur again unless the heater is not used for an extended period of time. CONTROLS FUNCTION Flame Button...
Page 12: Remote Control Functions
REMOTE CONTROL FUNCTIONS MAIN POWER ON THE FIREPLACE CONTROL PANEL MUST BE IN THE ON NOTICE POSITION TO USE REMOTE CONTROL. REMOTE CONTROL BUTTONS FUNCTION Press once to turn Power ON. Press again to turn Power OFF. Press Heater Button once, 750W (LOW HEAT) heater turns on and the fan starts to blow warm air.
Page 13: Care And Maintenance
REMOTE CONTROL BATTERY INFORMATION • This remote control uses one CR2025 battery (included). • Instructions for battery installation are on the Remote Control Battery compartment. CR2025 OPEN PULL PUSH NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion.
Page 14: Limited Warranty
LIMITED WARRANTY This warrants to the original purchaser that this product is free from defects in material and workmanship as of the date of purchase and that it will, under normal use and proper care, remain so for two years from the date of purchase. Missing or initially defective parts will be replaced free of charge during the period of this limited warranty.
